6 Component handling User Manual SIPLACE HS-60
6.1 Overview Software version SR.503.xx 07/2003 US Edition
128
6.1.2 Safety instructions for processing capacitors based on powdered metal
There is a risk associated with processing capacitors based on powdered metal (e.g. tantalum).
The risk is that
– an exothermic reaction, i.e. a sudden build-up of heat, may occur, if these components are
damaged. If the ambient conditions are unfavorable, and depending on the capacitance, this
build-up of heat can cause damage.
– This effect can occur when these components are cut.
Please contact your suppliers to clarify whether the components that you handle are affected.
In extremely rare cases, this risk can occur in the tape cutter of SIPLACE machines, with the
remote possibility of causing a smoldering fire in the waste tape.
The ambient conditions are unfavorable if:
(1) The components remain on the tape while the set tape cycle is checked (since the operator
can cycle the feeder onward without removing components during this check).
(2) The components remain on the tape, e.g. due to a tear in the cover foil.
(3) The components remain on the tape, and the components or tape do not conform to the
specification, thus increasing the pick-up error rate.
Please follow the instructions given below to minimize the risk when placing capacitors based on
powdered metal.
(1) If the component tape is cycled onward manually, the operator must remove any components
remaining in the tape pocket.
(2) If the cover foil tears, the operator must remove any components remaining on the tape.
(3) The waste tape container must be emptied regularly (recommended interval: every hour).
6
WARNING
To avoid the risk, it is essential to use only feeders that have
been approved for placing such components, namely:
for model C/D item no.: 00141118-01
for model E item no.: 00141117-01 6
6
The feeders are labeled as shown
below:
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
User Manual SIPLACE HS-60 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
129
6.2 Technical data for the feeders
The following pages contain diagrams of all the feeders, technical data and the feeder setting op-
tions on the placement system.
6.2.1 8 mm S II feeder
6

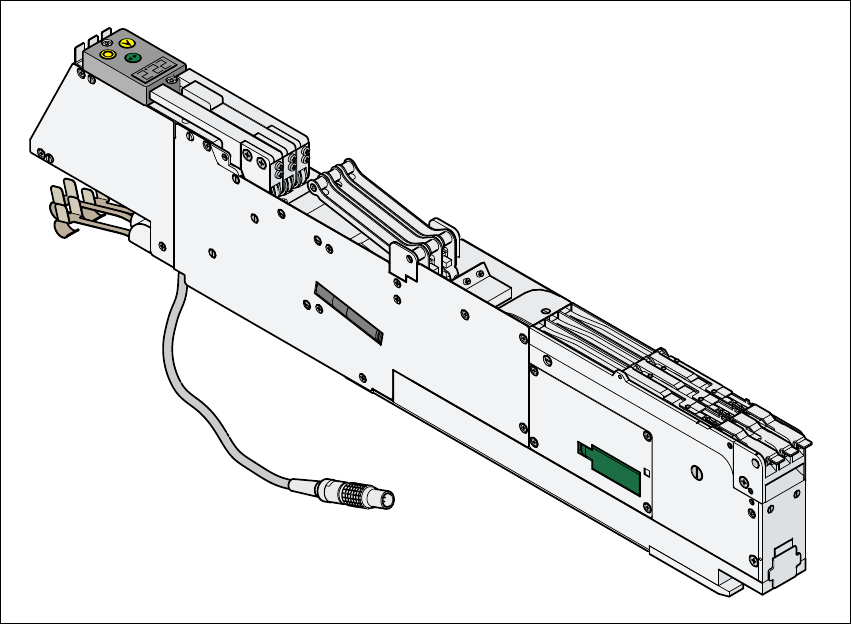

Fig. 6.2 - 1 8 mm S II feeder
Item no. 00141096-xx 6
Width 30.6 mm 6
Tracks per feeder 2 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 4000 6
Transport distance (variable) 2 mm / 4 mm 6
6 Component handling User Manual SIPLACE HS-60
6.2 Technical data for the feeders Software version SR.503.xx 07/2003 US Edition
130
6.2.2 3 x 8 mm S feeder
6
Fig. 6.2 - 2 3 x 8 mm S feeder
Item no. 00141098-xx 6
Width 30.6 mm 6
Tracks per feeder 3 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 4000 6
Transport distance (variable) 2 mm / 4 mm 6
