User Manual SIPLAC E HS-60 6 Component han dling Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders 131 6.2.3 3 x 8 mm S feeder for 0201/0402 component s 6 Fig. 6.2 - 3 3 x 8 mm S feeder for…
6 Component handling User Manual SIPLACE HS-60
6.2 Technical data for the feeders Software version SR.503.xx 07/2003 US Edition
130
6.2.2 3 x 8 mm S feeder
6

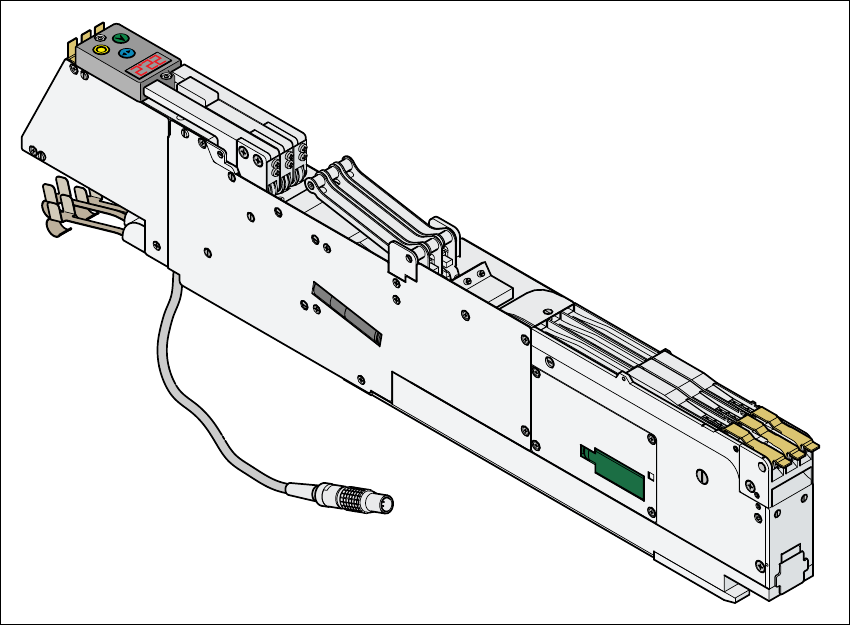

Fig. 6.2 - 2 3 x 8 mm S feeder
Item no. 00141098-xx 6
Width 30.6 mm 6
Tracks per feeder 3 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 4000 6
Transport distance (variable) 2 mm / 4 mm 6
User Manual SIPLACE HS-60 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
131
6.2.3 3 x 8 mm S feeder for 0201/0402 components
6
Fig. 6.2 - 3 3 x 8 mm S feeder for 0201/0402 components
6
Item no. 00141099-xx 6
Width 30.6 mm 6
Component range 0201, 0402 6
Tracks per feeder 3 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 10,000 to 15,000 6
Transport distance (variable) 2mm / 4mm 6
6 Component handling User Manual SIPLACE HS-60
6.2 Technical data for the feeders Software version SR.503.xx 07/2003 US Edition
132
6.2.4 12/16 mm S feeder
6

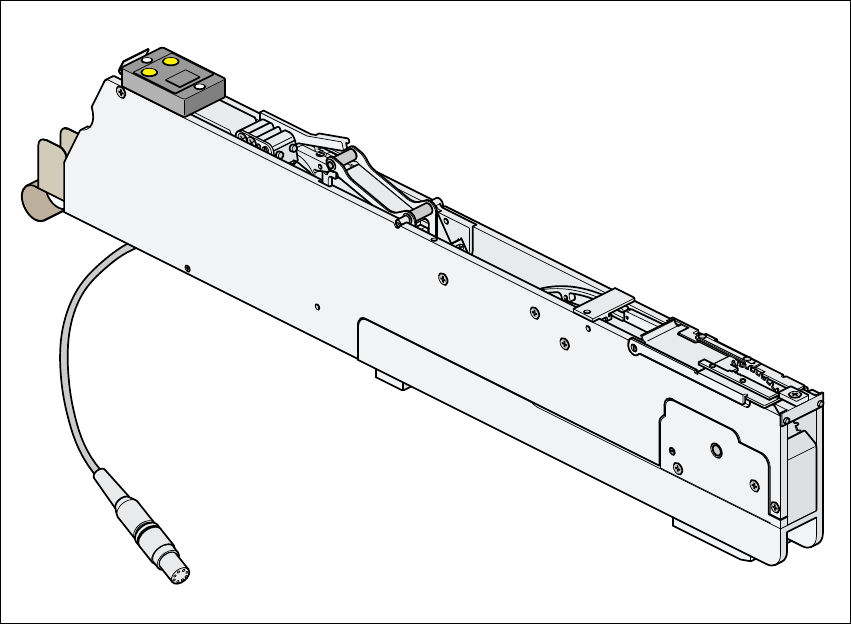

Fig. 6.2 - 4 12/16 mm S feeder
Item no. 00141092-xx 6
Width 30.6 mm 6
Tracks per feeder 1 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 4000 6
Transport distance (variable) 4mm, 8mm, 12mm, 16mm 6
