7.1.5 Changing the magazine
Æ To remove the magazine, push the spring hook (item 1 in Fig. 7.1 - 3) away from the maga-
zine. Lift the magazine out of the carrier.
7

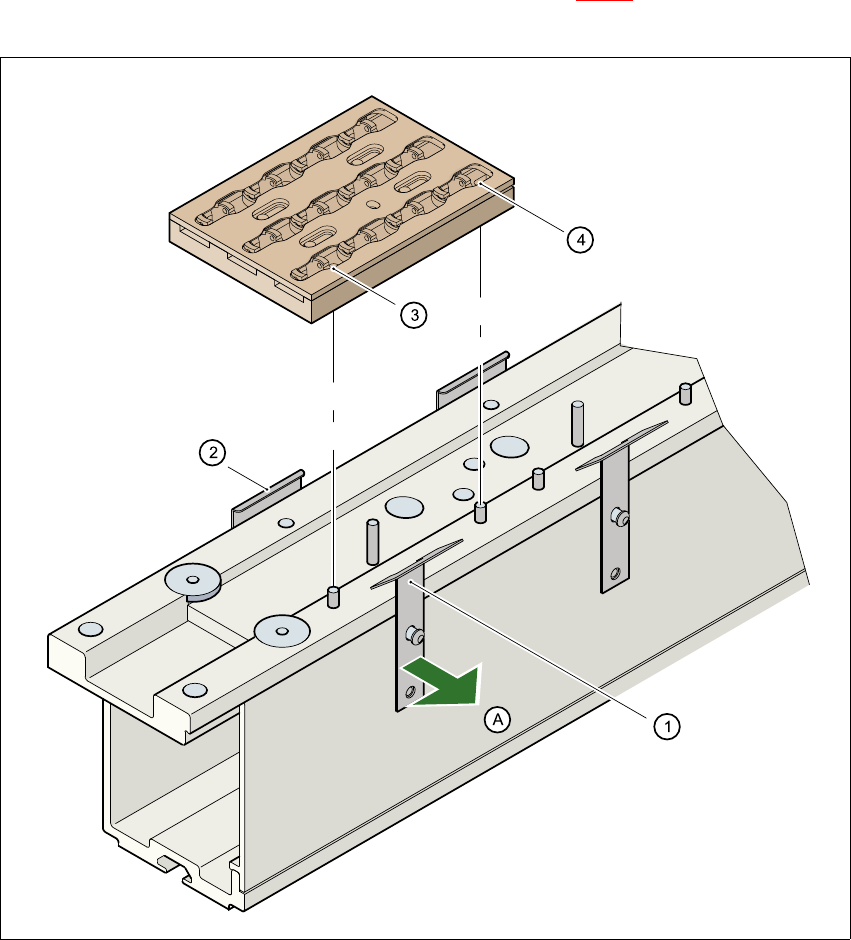

Fig. 7.1 - 3 Changing the magazine
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(A) Push the spring hook away from the magazine
User Manual SIPLACE HS-60 7 Station extensions
Software version SR.503.xx 07/2003 US Edition 7.1 Nozzle changer for the 12-segment Collect&Place head
155
PLEASE NOTE
Make sure that you insert the magazine so that the centering pins slide into the centering hole
(item 3) and slot (item 4). 7
Æ First place the side of the magazine with the numbered nozzles 1, 2, 3 and 4 on the base. The
retaining clamp (item 2) must slide into the slot in the magazine.
Æ Push the spring hook away from the magazine.
Æ Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
7.1.6 Position detection
There is a position detection fiducial on every magazine.
7

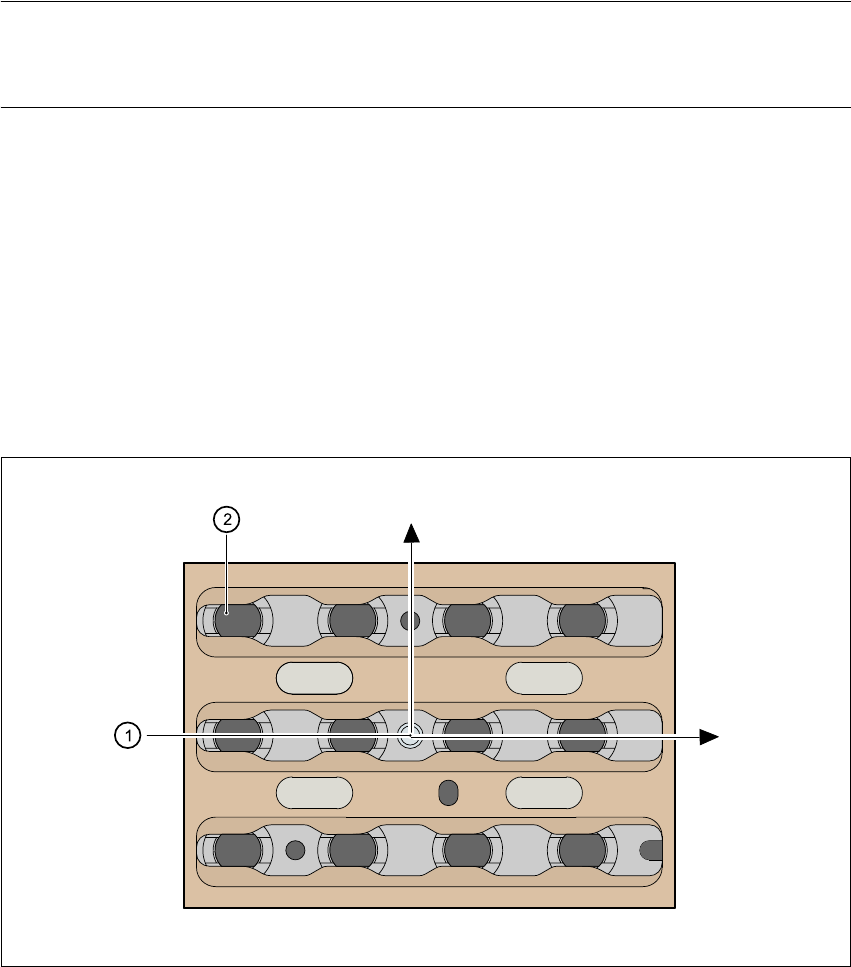

Fig. 7.1 - 4 Nozzle changer - position detection
7
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
12 3
4
10 11
12
Y
X
9
5
6
7
8
7 Station extensions User Manual SIPLACE HS-60
7.2 Component barcode reader Software version SR.503.xx 07/2003 US Edition
156
7.2 Component barcode reader
7.2.1 General
With the placement system, a barcode reader can be used to check that the track allocation is
correct and to read component data from component reels. A barcode reader is attached to both
of the operator panels on the placement system.
7

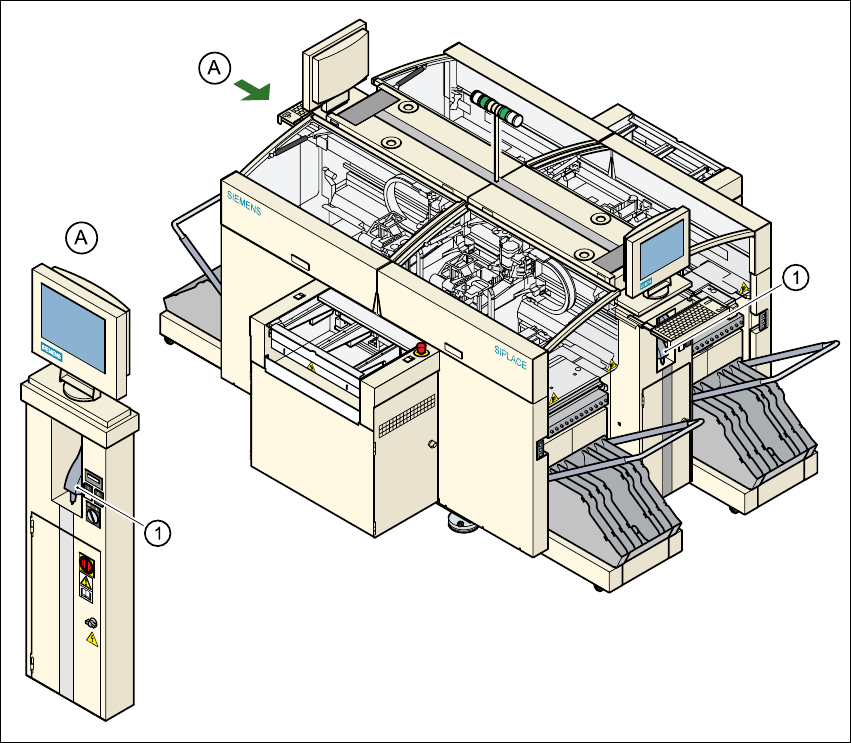

Fig. 7.2 - 1 Component barcode reader
(1) Barcode reader
