User Manual SIPLAC E HS-60 2 Operational safety Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels 31 2.2.3.2 W arning la bel W205 on the wast e t ape chute 2 Fig. 2.2 - 3 Warning label W205 on t he waste t…
2 Operational safety User Manual SIPLACE HS-60
2.2 Warning labels Software version SR.503.xx 07/2003 US Edition
30
2.2.3.1 Warning label W205 on the transverse bar below the tape cutter
2

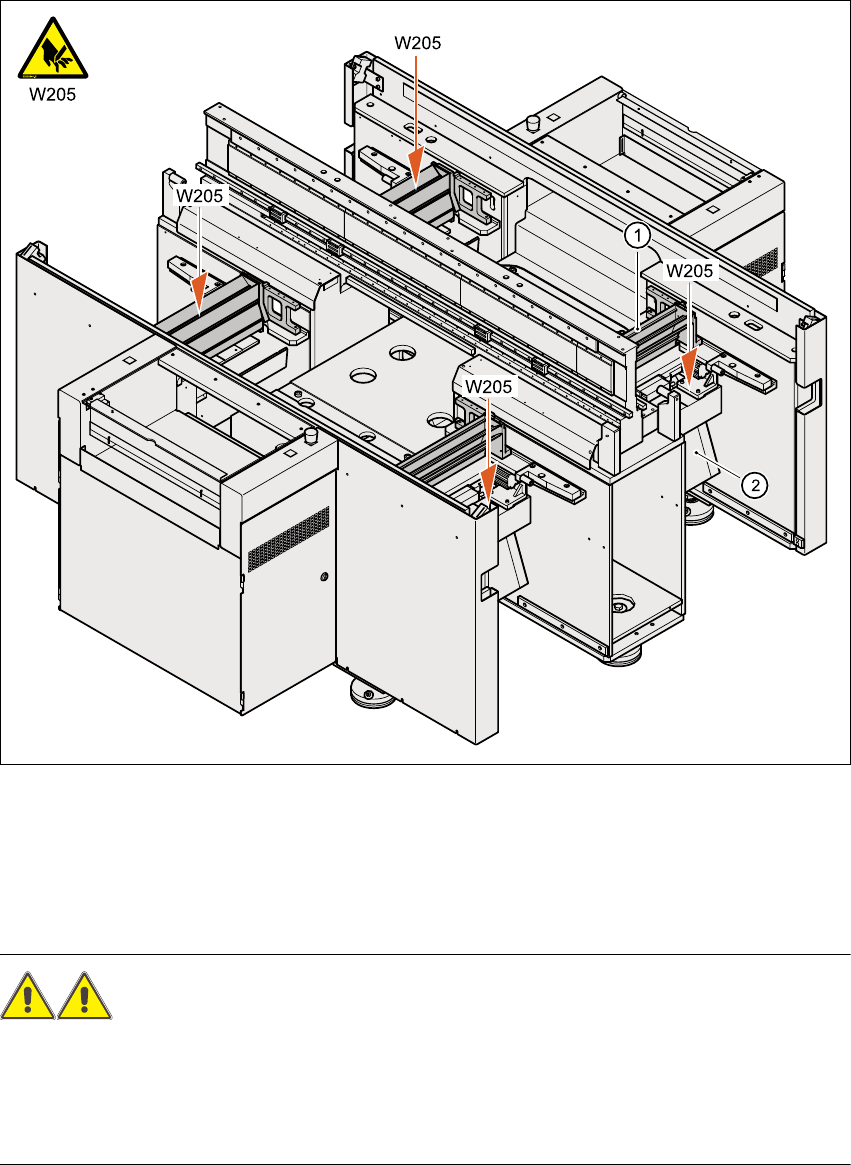

Fig. 2.2 - 2 Warning label W205 on the transverse bar below the tape cutter
2
(1) Tape cutter
(2) Waste tape chute
Item W205, part no. 03009344-01
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter.
User Manual SIPLACE HS-60 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.2 Warning labels
31
2.2.3.2 Warning label W205 on the waste tape chute
2
Fig. 2.2 - 3 Warning label W205 on the waste tape chute
2
Item W205, part no. 03009344-01
2.2.4 Warning label W206
2
Item W206 in Fig. 2.2 - 1, 2.2 - 4 and 2.2 - 5 (number per machine: 2)
2
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational safety User Manual SIPLACE HS-60
2.2 Warning labels Software version SR.503.xx 07/2003 US Edition
32
2.2.4.1 Warning label W206 on the main power supply access doors
2
Fig. 2.2 - 4 Warning label W206 on the main power supply access doors
Item W206, part no. 03009345-01
2.2.4.2 Warning label W206 on service socket BU1
2
Fig. 2.2 - 5 Warning label W206 on service socket BU1
Item W206, part no. 03009345-01
