2 Operational safety User Manual SIPLACE HS-60
2.2 Warning labels Software version SR.503.xx 07/2003 US Edition
36
2.2.8 Warning label W110 on the EMERGENCY-STOP buttons
2
Warning label W110 (number per machine: 2)
2

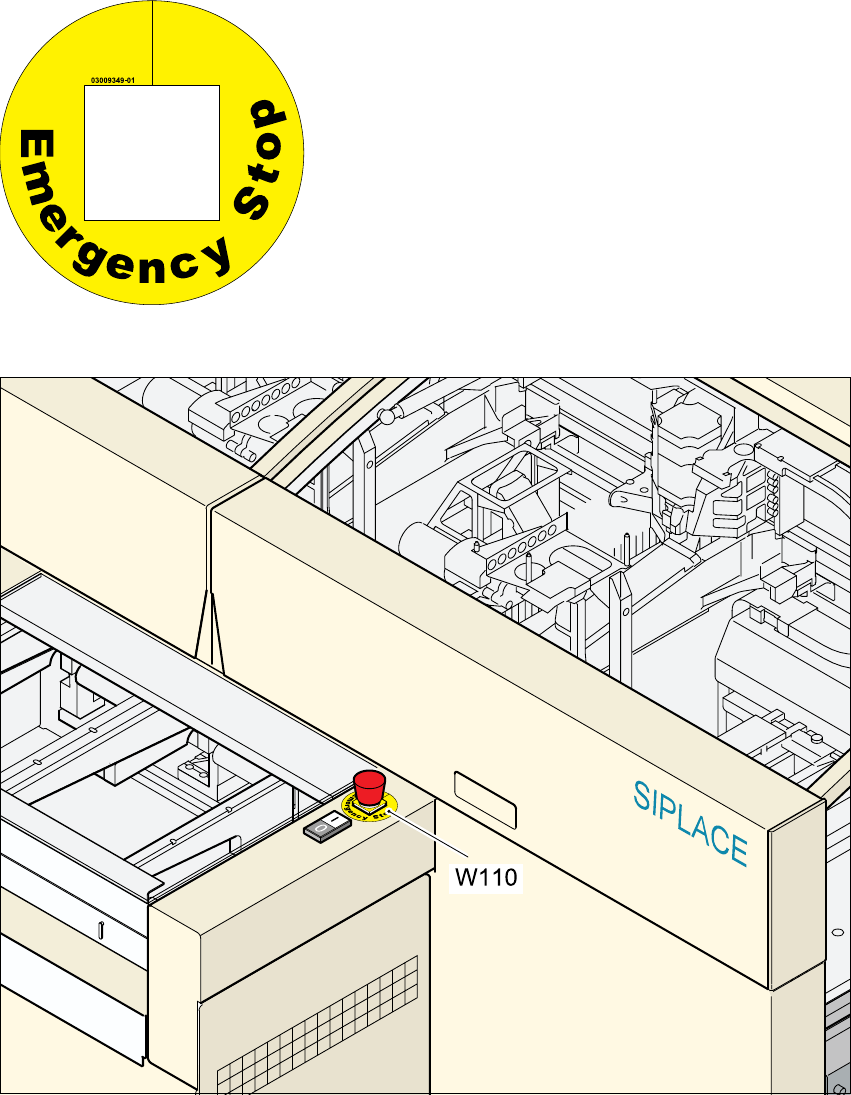

Fig. 2.2 - 9 Warning label W110 on the emergency stop buttons
2
Item W110, part no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warning
label W110 is affixed to the extension kit instead of
the yellow ring on the emergency stop buttons.
User Manual SIPLACE HS-60 2 Operational safety
Software version SR.503.xx 07/2003 US Edition 2.3 Laser classification
37
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for
operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– Multicolor PCB camera (type 18) 21
2
The following camera systems are assigned to laser class 1M:
– 24 x 24 component camera on the 12-segment Collect&Place head
– 16 x 16 DCA camera on the 12-segment Collect&Place head
2 Operational safety User Manual SIPLACE HS-60
2.3 Laser classification Software version SR.503.xx 07/2003 US Edition
38
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
2
2
Laser radiation
Do not look into beam!
