3.3 Connection data for the placement system Software version SR.503.xx 07/2003 US Edition
78
WARNING 3
The placement system is supplied with 3 x 204 VAC (US version), 3 x 230 VAC, 3 x 380 VAC,
3 x 400 VAC or 3 x 415 VAC ± 5 %, 50/60 Hz main power voltage. This means that some parts of
the system carry potentially lethal voltages - even when switched off at the main switch. Incorrect
handling of the placement machine can therefore result in death or severe injury or considerable
damage to equipment.
WARNING 3
Never disconnect compressed air lines while they are pressurized. Risk of injury.
3.3.2 Technical data – electrical ratings
Supply voltage 3 x 204 VAC ± 5 %; 50/60 Hz (for the U.S.A. version)
3 x 230 VAC ± 5 %; 50/60 Hz
3 x 380 VAC ± 5 %; 50/60 Hz
3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 415 VAC ± 5 %; 50/60 Hz
Fuses 3 x 32 A (3 x 204 VAC)
3 x 32 A (3 x 230 VAC)
3 x 16 A (3 x 380 VAC)
3 x 16 A (3 x 400 VAC)
3 x 16 A (3 x 415 VAC)
Total connected load 11.1 kVA
Total power 4 kW
Power failure Max. 20 msec
User Manual SIPLACE HS-60 3 Technical data
Software version SR.503.xx 07/2003 US Edition 3.4 Technical data – compressed air supply
79
3.4 Technical data – compressed air supply
3.4.1 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1)
3.4.2 Technical data – noise emissions
3.4.3 Technical data – permissible ambient factors
Compressed air pressure Min. 0.65 MPa (6.5 bar) to 1 MPa (10 bar), 3/4"-connection
Compressed air consumption 950 Nl/min.
Operating pressure 0.54 MPa ± 0.01 MPa (5.4 bar ± 0.1 bar)
Particle size 0.1 µm
Particle density 0.2 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Max. noise emission 74 dB (A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
3 Technical data User Manual SIPLACE HS-60
3.5 Dimensions and weight of the placement system Software version SR.503.xx 07/2003 US Edition
80
3.5 Dimensions and weight of the placement system
3.5.1 Dimensions of the placement machine
3

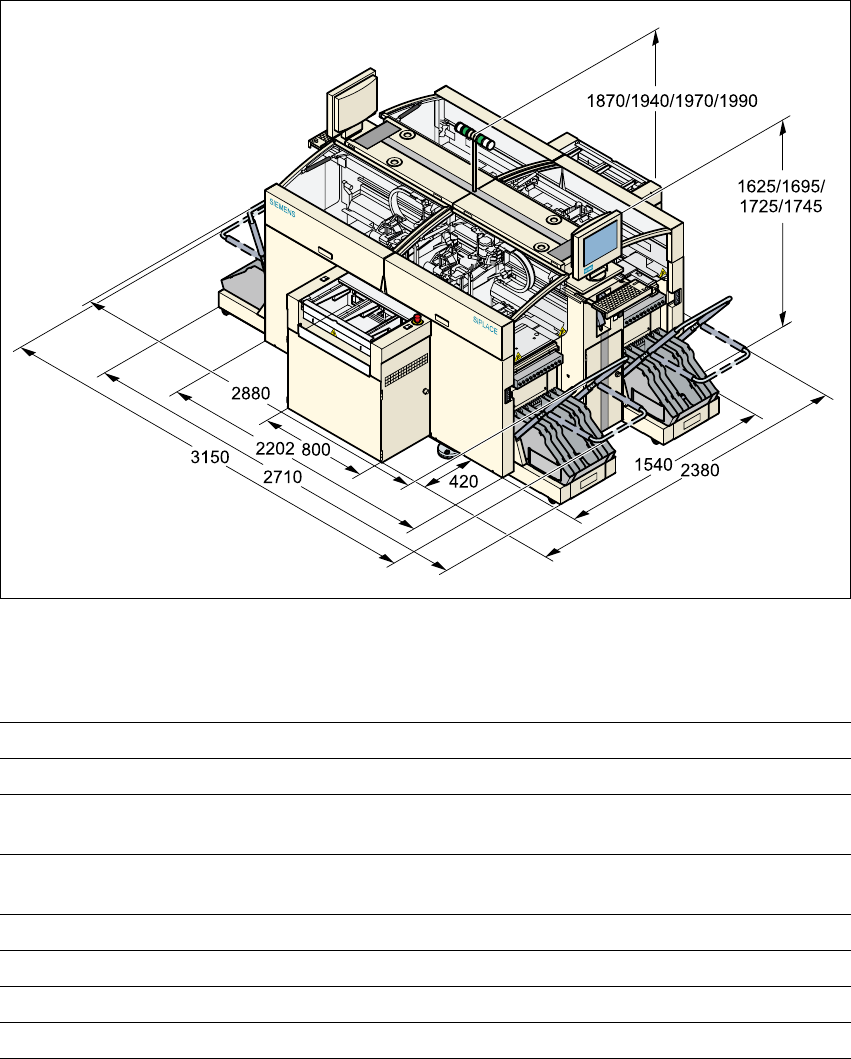

Fig. 3.5 - 1 Dimensions of the placement system in millimeters
3.5.2 Technical data - dimensions, weight
3
Length 2385 mm including conveyor belts
Width 3150 mm including brackets
Height with warning lamp 1870 mm standard height
1940/1970/1990 mm SMEMA-height
Ground clearance 110 mm standard height
230 mm SMEMA height
Weight of basic module 2800 kg
Weight fully equipped 3500 kg
Admissible load per unit area on foundation 1000 kg/m²
Load per unit area on mounting feet 3.79 kg/cm²
