Chapter 5 Libraries 5-107 5-3 Copying Library 5-3-1 Copying User Library and Master Library A user library and master library are provided fo r various data such as component data, feeder data, package data, pallet data,…

Chapter 5 Libraries

5-106

5-2-6 Feeder Library (Feeder Data)

Menu: Program>FeederData

Program>PickupData>Feeder/Pallet>FeederData

Window: For the current version, only feeder name is required for [Feeder] field. Enter this name to

PickupData>[Feeder/Pallet]. Leave other settings as default.

File>Save: Saves the edited data.

Feeder: Names of PS / F1-series feeders can be provided as available

choices. Click the right mouse button to present the list.

Lot No.: Planned for future use.

Feeder Code: Do not change.

Feed Pitch: Use the default setting.

Feed Height: Planned for future use.

X Offset: Use the default setting.

Y Offset: Use the default setting.

 Setting for Multi-stick Feeder (PS-MS3)

The PS-MS3 mufti-stick feeder has multiple pickup points. Their positions are defined by

coordinate offsets from the coordinate values of the station on which the PS-MS1 is set.

Enter feeder names from PS-MS3-A to PS-MS-I that correspond to the pickup points in the

pickup data. Then, enter offsets of each pickup point to [X Offset] and [Y Offset] of this feeder

data.

 Setting for Multi-stick Feeder (MSF-1)

The MSF-1 mufti-stick feeder has multiple pickup points. Their positions are defined by

coordinate offsets from the coordinate values of the station on which the MSF-1 is set.

Enter feeder names from MSF-01 to MSF-16 that correspond to the pickup points in the pickup

data. Then, enter offsets of each pickup point to [X Offset] and [Y Offset] of this feeder data..

Chapter 5 Libraries

5-107

5-3 Copying Library

5-3-1 Copying User Library and Master Library

A user library and master library are provided for various data such as component data, feeder

data, package data, pallet data, tray data, and nozzle data.

In the user library, you can store the data you have created to use it for other programs. The

master library consists of read-only typical data loaded at the factory prior to shipment. Both

user library and master library are normally hidden. Any desired data in the master library can

be copied into the user library.

Menu: Program>ComponentData/FeederData/PackageData/PalletData/TrayData/NozzleData

Action:

① In each data window, click [Tool]>[Search Library] or the [Search Library] icon.

Or, press the F3 key on the keyboard.

② The user library and master library appear in the lower part of the window.

The user library is shown in white and the master library in gray.

③ Copy data by dragging and dropping it between the data list in the upper part and the

user library or master library in the lower part.

④ You can also copy data from the master library to the user library by dragging and

dropping it.

Note: If data with the same code name exists in the copy destination, that data will be overwritten.

So, it is recommended to change (rename) the code name after the component data has been

copied.

Note: No data can be copied to the master library.

Drag and drop desired

data to copy it.

Master Library (gray)

Various data

User Librar

(white)

[Search Library] icon

Chapter 5 Libraries

5-108

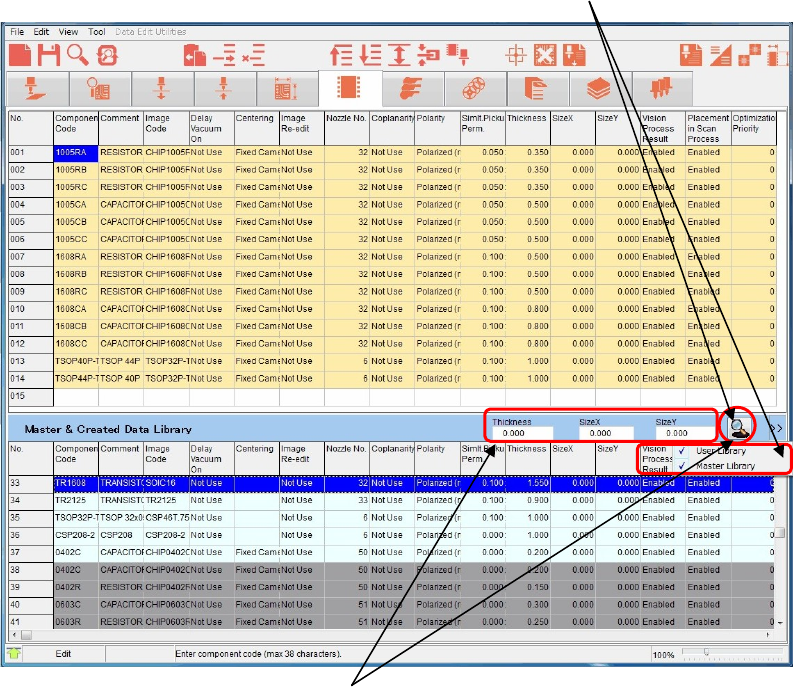

⑤ You can select to display the user library or master library.

Click the [>>] button to check on a desired library you want to display. You can also

display both the user library and master library.

Additionally, when you check on [Auto sort] and click the <Hand Glass> button, the data

can be sorted.

⑥ You can search data by filtering.

Enter the size and/or other parameters and click the [Hand Glass] button. Candidates are

then extracted.

⑦ Click [Tool]>[Search Library] or the [Search Library] icon once again.

The user library and master library displays at the lower portion will be closed.

Or, pressing the F3 key on the keyboard will also close the user library and master library

displays.

[Hand Glass] button
