Chapter 10 Replenishing Com ponents and Using Maintenance Menus 10-15 10-4-2 Signal Output Control The Signal Output (Control) window serves as cont rols to turn on or off actuators. “1” indicates On state, “0” Off state…
Chapter 10 Replenishing Components and Using Maintenance Menus
10-14

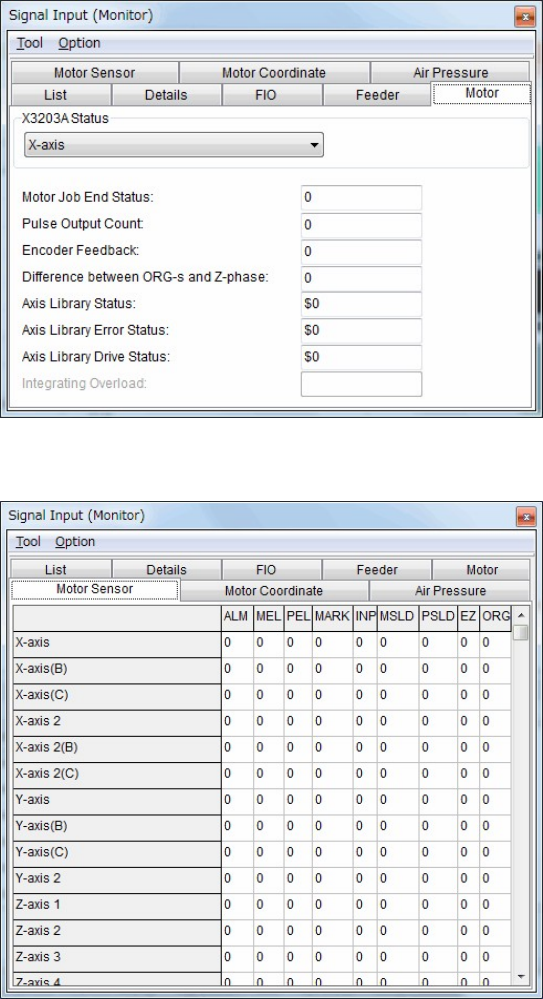

■ Motor
■ Motor sensor
Window:
ALM: Alarm
MEL: Minus End Limited
PEL: Plus End Limited
MARK: Mark
INP: In Position
MSLD: Minus Slow Down
PSLD: Plus Slow Down
EZ: 0 Phase
ORG: Origin
Chapter 10 Replenishing Components and Using Maintenance Menus
10-15
10-4-2 Signal Output Control
The Signal Output (Control) window serves as controls to turn on or off actuators. “1” indicates
On state, “0” Off state. “0” and “1” toggle as you click on it, and the corresponding actuator is
turned on or off simultaneously. This operation allows you to check actuator movement in
troubleshooting. When an actuator moves properly by this operation, its sensor responds and
the Signal Input (Monitor) window shows the result. The combination of an address and bit
number (0-7) represents a signal. The name of each signal is shown in the Details tab.
Turning on/off signal output in the Signal Output (Control) window allows an actuator
to move. During this operation, do not stick your head, hands, or other parts of the body
inside the mounter or tray feeder. Serious injury can result. Also make sure
non-operators are a safe distance from the mounter or tray feeder.
During signal output on/off operation, make sure no foreign obstacles are left in the mounter or
tray feeder. Otherwise, costly machine damage can occur.
Menu: Manual>Signal I/O>Signal Output (Control)
■ List ……… Not used
■ Details ….. Not used

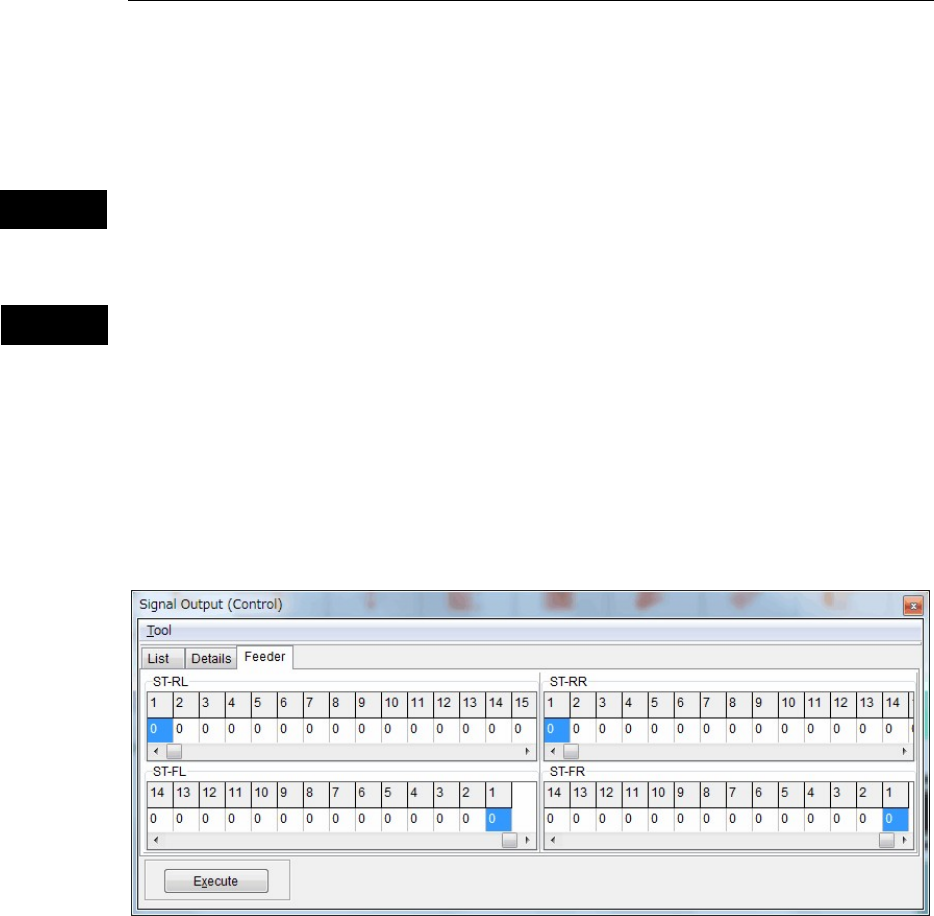

■ Feeder
This tab allows you to operate the part feeders set in the front and rear feeder banks.
Action:
① Scroll left or right to display the desired feeder number.
② Click “0” of the desired feeder number to switch it to “1”.
③ Click <Execute> button to allow the feeder to move for one feeder indexing.
Warning
Caution
Chapter 10 Replenishing Components and Using Maintenance Menus
10-16
10-4-3 Serial I/O

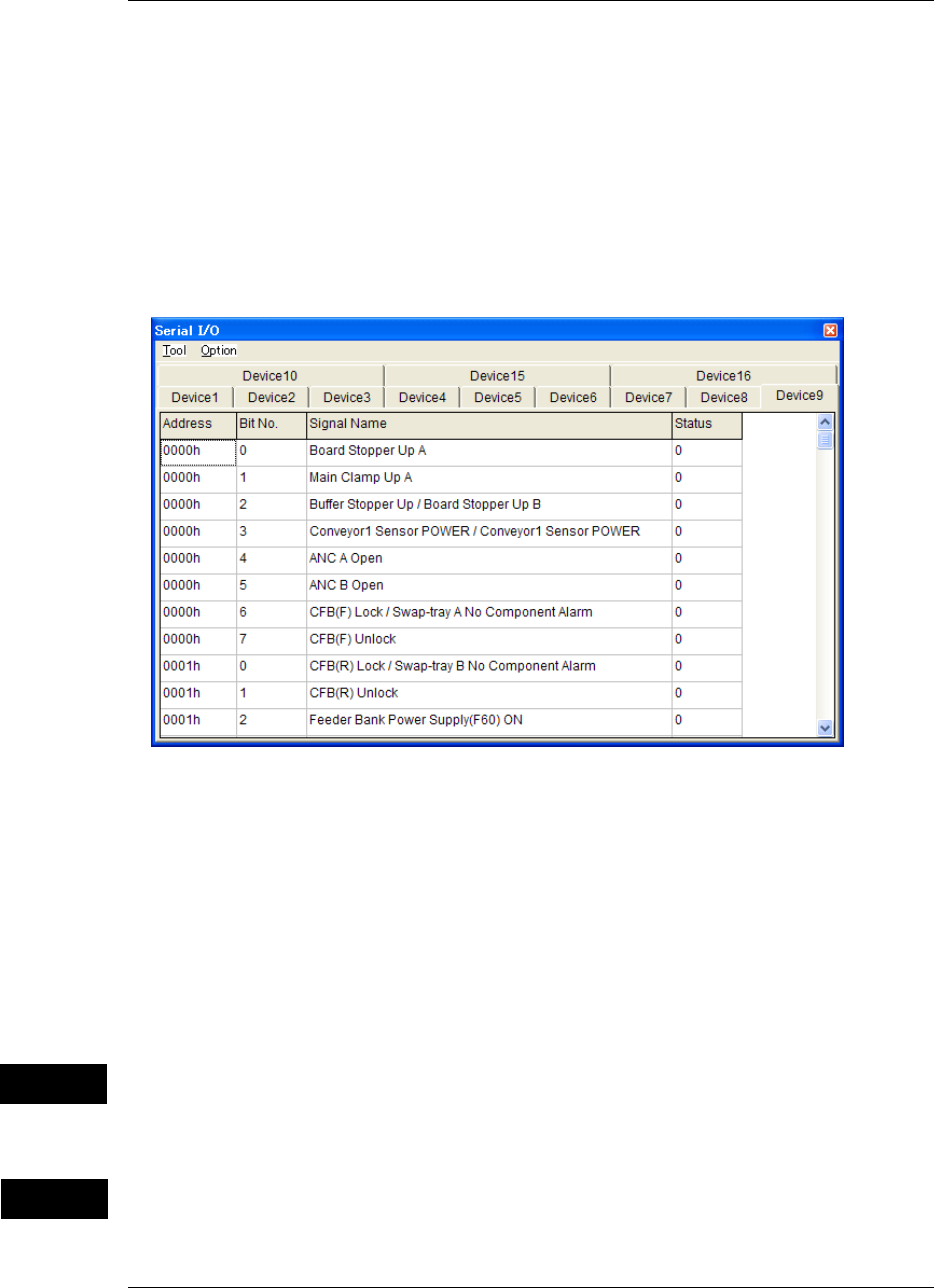

■ Serial I/O List
Serial signal output (Device 1･3･5･7･9･11･13･15)
Serial signal input (Device 2･4･6･8･10･12･14･16)
Action:
① Click the [Status] cell of the actuator you want to operate.
② At the same time you click the cell, the display changes 1(On) or 0(Off), and the actuator
moves accordingly.
Example:
■ Moving Up and Down the Board Stopper
① Select Manual> Signal I/O to open the [Serial I/O] window.
② Select the [Device1] tab.
③ Click the [Status] cell of [Board Stopper Up A]. The status changes “0” to “1” and the board
stopper moves up. At this time, confirm that the [Status] cell of [Board Stopper Up A] in
[Device2] switches from “0” to “1”.
④ To move down the board stopper, click the [Status] cell of [Board Stopper Up A] in
[Device1] again. The status changes “1” to “0”. At the same time, the [Status] cell of [Board
Stopper Up A] in [Device2] switches from “1” to “0”.
Turning on/off signal output in the Signal Output (Control) window allows an actuator
to move. During this operation, do not stick your head, hands, or other parts of the body
inside the mounter or tray feeder. Serious injury can result. Also make sure
non-operators are a safe distance from the mounter or tray feeder.
During signal output on/off operation, make sure no foreign obstacles are left in the mounter or
tray feeder. Otherwise, costly machine damage can occur.
10-4-4 Signal Input/Output Map
For the signal input/output map (signal input/output list), refer to the M10M20 service manual,
Chapter 4 “Electrical Section” > Signal Output Map/Signal Input Map.
