Chapter 10 Replenishing Components and Using Maintenance Menus
10-17
10-4-5 Actuators
Actuators mean devices to cause a machine to function. In this system, actuators specifically
mean pneumatic-driven devices and parts feeders. The Actuator menu allows you to check
each actuator movement and to measure its timing.
The Actuator allows the specified actuator to move. While operating actuators via this
menu, do not stick your head, hands, or other physical parts inside the mounter or the
tray feeder. Serious injury may result. Also make sure non-operator are at a safe
distance from the mounter or the tray feeder.
Before operating actuators, make sure no foreign obstacles are left in the mounter and the tray
feeder. The mounter and the tray feeder may cause damage.
Menu: Manual>Actuator
On/Off tab
* The number of heads differs depending on the mounter model.
Action:
① Under [Select Actuator], select a type of actuator.
② Click <OFF> button for the desired actuator. <OFF> button turns to <ON> and the
actuator starts to operate.
③ Click <ON> button. <ON> button turns to <OFF> and the actuator stops to operate.

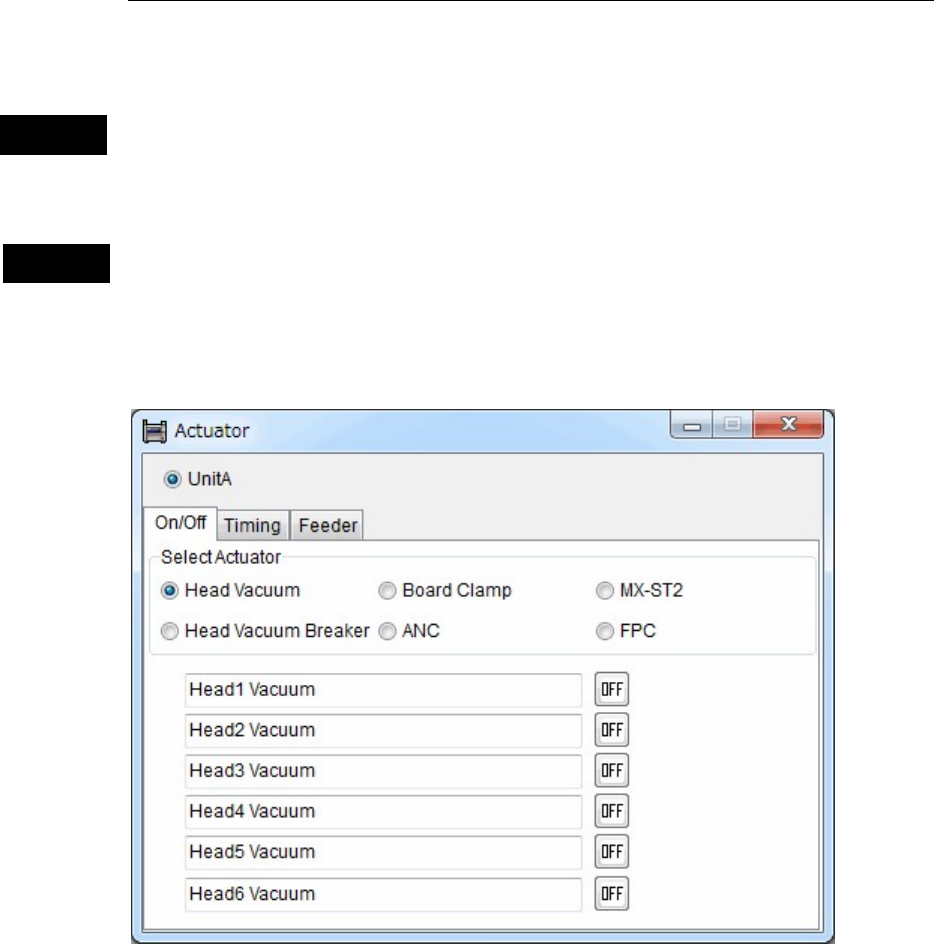

Window:
Head Vacuum Head1 Vacuum
Head2 Vacuum
Head3 Vacuum
Head4 Vacuum
Head5 Vacuum
Head6 Vacuum
Warning
Caution
Chapter 10 Replenishing Components and Using Maintenance Menus
10-18
Board Clamp Board stopper ON
Second stopper UP
Quick clamp UP
Push-up plate
Head Vacuum Breaker Head1 Vacuum Breaker
Head2 Vacuum Breaker
Head3 Vacuum Breaker
Head4 Vacuum Breaker
Head5 Vacuum Breaker
Head6 Vacuum Breaker
ANC ANC Open
Chapter 10 Replenishing Components and Using Maintenance Menus
10-19

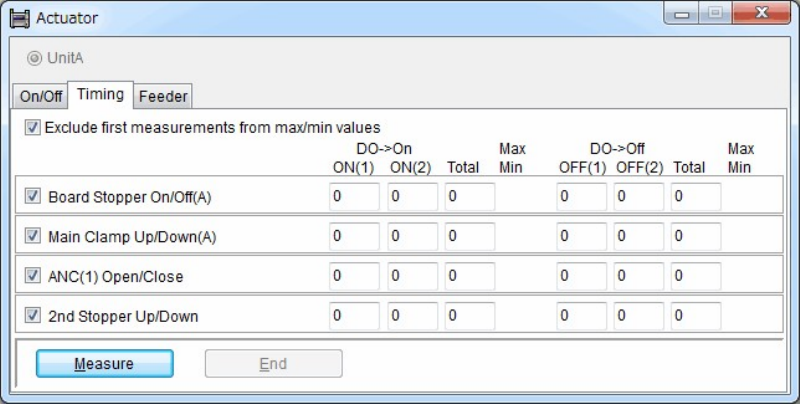

Timing tab
Measures actuator on/off timing.
Action:
① Click <Measure> button. The actuator on/off timing is measured and the results are
displayed one by one from the No.001 Board Stopper Up/Down.
② Click <End> button to end.
Window:
ON(1) Displays the time between when the ON command is issued until
the OFF sensor is turned OFF.
ON(2) Displays the time between when the OFF sensor is turned OFF until
the ON sensor is turned ON.
Total Displays the total time of ON(1) and ON(2).
OFF(1) Displays the time between when the OFF command is issued until
the ON sensor is turned OFF.
OFF(2) Displays the time between when the ON sensor is turned OFF until
the OFF sensor is turned ON.
Total Displays the total time of OFF(1) and OFF(2).
Max/Min Displays the maximum and minimum values among the values
obtained during the period between the start of measurement until
the end of measurement.
Note: Measurement is repeated unless <End> button is clicked.
Feeder tab
Performs feeder indexing for the specified feeder.
Action:
① Under [Location], select <ST-F> or <ST-R> button.
② Enter the feeder station number using the arrow keys.
③ Click <Execute> button. The specified feeder is activated and makes one feed.
