Chapter 10 Replenishing Components and Using Maintenance Menus
10-38
Resuming the production from the step the production cancelled
z Resuming the production without entering the step No.
When the production is paused by pressing the
CANCEL switch, the mounter retains the
continuous steps in the memory. Here is the procedures to resume the production from the
continuous steps.
Action:

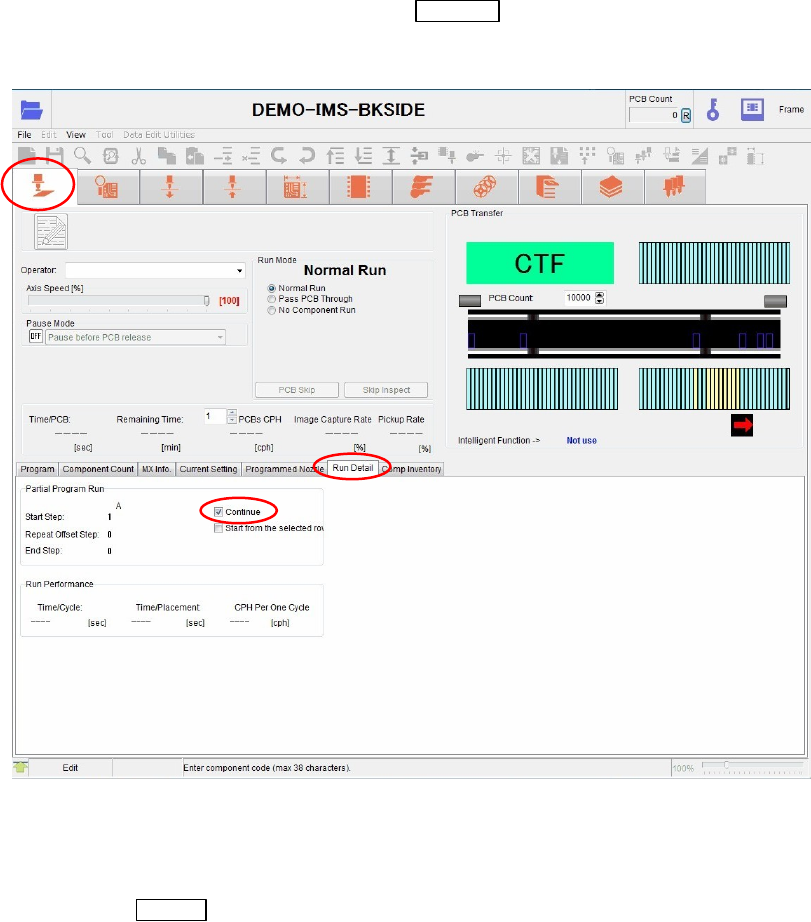

① Open the [Run]>[Run Detail] tab.
② Check on the [Continue] check box.
③ Press the
START switch to restart the production.
Note: Be sure to select the [Resume] check box.
Note: When you start the production from the beginning, the entered step Nos. are cleared.
Chapter 10 Replenishing Components and Using Maintenance Menus
10-39
z Start the production from the steps you selected.
Action:
① Open the [Run]>[Run Detail] tab.
② Check on the [Start from the selected row] check box.
③ Ｃｌｉｃｋ <Start Step Edit> button.
④ Enter the step No. to start the production.
⑤ Click the <Apply> button.
⑥ Press the
START switch to restart the production.
Chapter 10 Replenishing Components and Using Maintenance Menus
10-40
10-8 Component Handling in Machine Shutdown
If the machine stops during running, be careful that the component may drop from the head.
z If STOP
switch is pressed to suspend the machine, the machine completes the component
placement, and then stops. Therefore there is no problem.
z If
EMERGENCY STOP switch is pressed to stop the machine in an emergency, the
component remains picked up. But when
RESET switch is pressed, vacuuming at the
head is turned off. So receive the component with your hand.
z If
READY switch is still lighting, bring the head to within the reach of your hand via
Manual>Axis, and then let the component be released via Manual>Actuator>On/Off and
receive the component with your hand.
z If the front or rear cover is opened and then
RESET switch is pressed, vacuuming at the
head is turned off, and the component drops from the head.
