Chapter 11 Parameter Setting
11-11
Others

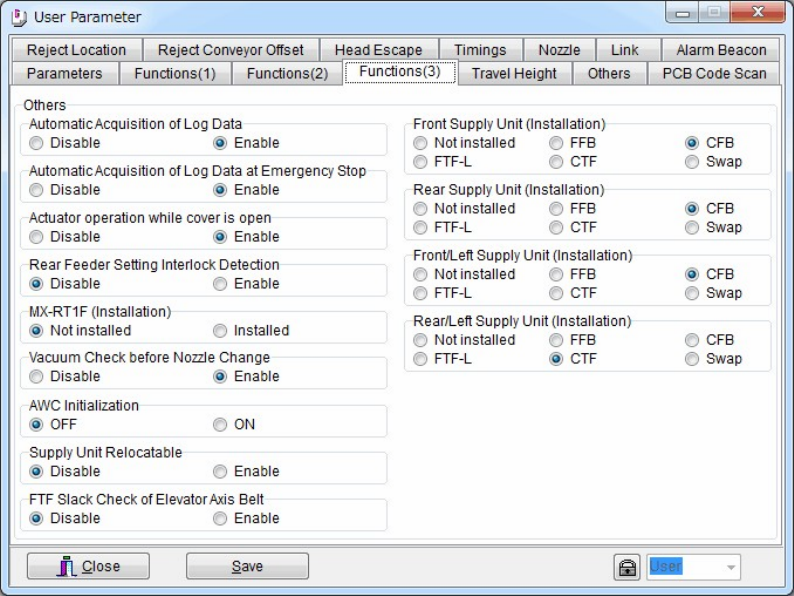

37. Automatic Acquisition of Log Data
38. Automatic Acquisition of Log Data at Emergency Stop
39. Actuator operation while cover is open
40. Rear Feeder Setting lnterlock Detection
41. MX-RT1F (Installation)
42. Vacuum Check before Nozzle Change
43. AWC Initialization
44. Supply Unit Relocatable
45. FTF Slack Check of Elevator Axis Belt
46. Front Supply Unit (Installation)
47. Rear Supply Unit (Installation)
48. Front/Left Supply Unit (Installation)
49. Rear/Left Supply Unit (Installation)
Chapter 11 Parameter Setting
11-12
11-1-9 Coplanarity Check (Optional)
Menu: System>UserParameter>Coplanarity Check
Check [Coplanarity Check] box to enable the coplanarity check function.
11-1-10 Nozzle
Menu: System>UserParameter>Nozzle
You can check the information and change the settings regarding nozzles when Nozzle
Presence Check or Nozzle ID Recognition can not be performed properly.
.
* The number of heads differs depending on the mounter model.
Chapter 11 Parameter Setting
11-13
■ Head Nozzle Code
It can be used at the NG result(E.g. when mistaking the absence of the nozzle for the presence,
and vice verse. ) in recognition process for nozzle on head.
Action:
① Check that the Head Nozzle Code corresponding to the machines is selected in the Head
Nozzle Code box as follows.
M10 → M10_NOH
M20 → M20_NOH
② Click the <Edit> button. The following window appears.
③ Select the Head No. in the Head box.
④ Click the <Image Test> button.
When Image Test Result is NG, check to see whether there is any dirt on the mirror and nozzle
ID mark sticker, or the condition of the illumination.
■ Station Nozzle Code
It can be used when the Nozzle No. can not be recognized or checking the presence of nozzles
in ANC is NG.
Action:
① Check that the Station Nozzle Code corresponding to the machines is selected in the
Station Nozzle Code box as follows.
M10 → M10_NOS
M20 → M20_NOS
