Chapter 12 Management Data 12-5 ■ Performance (Per Job); Produced PCB Count, Pause Count, Fiducial Pr ocess Count, Fiducial Mis-recognition Count, Fiducial Coordinates Adjust Count, Bad Mark Process Count, Bad Mark Mis-R…

Chapter 12 Management Data

12-4

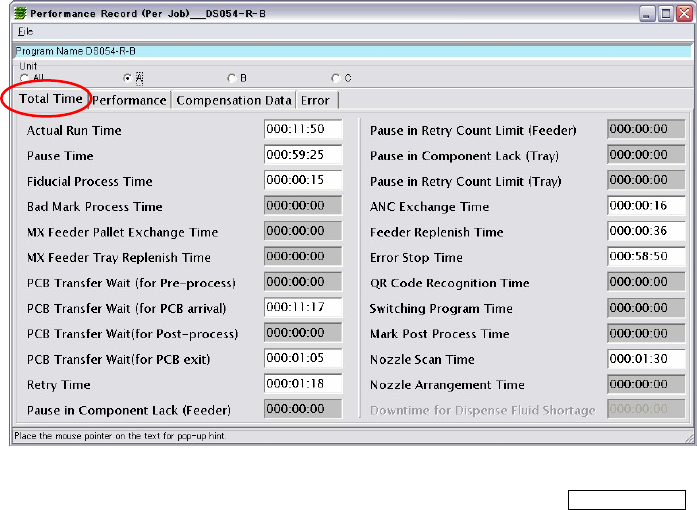

■Total Time (Per Job)

Actual Run Time: Run Time – Total Stop Time

Pause Time: Pause time pressed by the CYCLE STOP switch

(cycle stop)

Fiducial Process Time: XY travel to mark ～ Recognition completion

Bad Mark Process Time: XY travel to mark ～ Recognition completion

MX Feeder Pallet Exchange Time: Operating time of shuttle, elevator etc.

MX Feeder Tray Replenish Time: Travel to pickup-point completion ～ Tray feed

completion (head wait time)

PCB Transfer Wait (for Pre-process): Pre-process ready ON ～ Entrance sensor ON

PCB Transfer Wait (for PCB arrival): Travel to head wait-point completion ～ PCB clamp

completion

PCB Transfer Wait (for Post-process): Production of one PCB completion (arrival at exit

buffer) ～ unloading start

PCB Transfer Wait (for PCB exit): PCB unclamp ～ Loading completed

Retry Time: Reject start ～ Re-pickup ～ Vision recognition OK

Pause in Component Lack (Feeder): Pause time due to component exhaustion

(remain count = 0)

Pause in Retry Count Limit (Feeder): Pause time due to retry over due to

pickup/vision-process error

Pause in Component Lack (Tray): Pause time due to component exhaustion

(remain count = 0)

Pause in Retry Count Limit (Tray): Pause time due to retry over due to

pickup/vision-process error

ANC Exchange Time: XY travel to ANC ～ Removal completion (Z up)

Feeder Replenish Time: Travel to pickup point completion ～ Feeder feeding

completion (head wait time)

Error Stop Time: Pause time due to errors (excluding emergency stop)

QR Code Recognition Time: PCB QR code recognition time (option)

Switching Program Time: Production-program auto-switching time with QR

code, etc. (option)

Mark Post Process Time: Recognition time for XY mark compensation.

Nozzle Scan Time: Nozzle ID recognition time

Nozzle Arrangement Time: Nozzle arrangement time for nozzle optimization

Chapter 12 Management Data

12-5

■Performance (Per Job);

Produced PCB Count, Pause Count, Fiducial Process Count, Fiducial Mis-recognition Count,

Fiducial Coordinates Adjust Count, Bad Mark Process Count, Bad Mark Mis-Recognition

Count, Bad Mark Process Skip Count, Bad Mark Process Un-skip Count, Pickup Count, Place

Count, Pickup Error Count, Vision Process Error Count, Coplanarity Error Count, Interrupt

Count, Reject Count, Reuse Count, Choke Count, ANC Exchange Count (off), ANC Exchange

Count (on), Pickup Error Count in Comp Exhaustion, Feeder Link Count, PCB Skip Count,

Switching Program Count , QR Code Process Count, QR Code Mis-recognition Count, Nozzle

Scan Count, Nozzle Arrangement Count, 2 Points Fiducial Count, 2 Points Fiducial Count

(Elastic), Pickup Error/Pickup Count (%), Vision Error/Pickup Count (%), Feeder Drive Error

Chapter 12 Management Data

12-6

■Compensation (Per Job);

X Max, X Min, X Average, Y Max, Y Min, Y Average, T Max, T Min, T Average, Negative Press.

Avg., Stretch Max, Stretch Min, Stretch Average

■Error (Per Job);

EMG-stop SW Activate Count, EMG-stop Error Count, Conveyor Error Count, Feeder Drive

Error Count, Feeder Mis-set Error Count, ANC Error Count, Pickup Error Count, Vision

Process Error Count, Coplanarity Error Count
