Chapter 14 Intelligent Feeder

14-15

14-2-10 Checking the Station

This section explains how to find the lane (feeder) in which a component is to be set.

Action:

① Scan the "Show / Hide" barcode to display the ID registration window (InputBar).

② Scan the component’s barcode.

③ Scan the "Check Station" barcode.

④ The result will be displayed in a message window, so check it.

→If a feeder has already been set in the target lane, the LED will indicate the confirmation

status (light blue/flash) temporarily.

→For instance, a component (1005C), that is to be set in lane 34 on the front feeder bank, is

set in lane 30, a message window will appear showing: ① the lane No. in which the

component has been set by mistake, ② the correct lane No., and ③ the component name.

[Feeder position error. ST-F-30 -> ST-F-34"1005C" ID:62-20]

① ② ③

Note: The station check command can be accepted only while production is halted.

The station check function can be executed, for instance, just after <Run> button in the

production window is clicked to start production, and after production is halted to exchange

components. (In either case, production will remain halted until the [Start] button on the

mounter is pressed.)

Chapter 14 Intelligent Feeder

14-16

14-3 Running the Server Software

14-3-1 What is the Server Software?

The server software (CompSvr.exe) controls the ID database (relationship between feeder IDs

and component barcodes) and component table (relationship between component barcodes

and component codes). It also contains a barcode creation software program as a part of its

function to enable creation of command, feeder and component barcodes.

Here explains how to run the server software.

Server Software Window

14-3-2 Starting/Exiting the Server Software

■Starting

Double-click the server software icon on the Windows taskbar.

■Exiting

To exit the server software, select File > Exit from the taskbar.

When the server software is exited, connection between the barcode input software and client

software will be shut off. To use the intelligent feeder function again after the software is exited,

restart the mounter if it has been run on the mounter. In the case of PC, from the Windows

taskbar, select Start > Program > Intelligent Tool > CompSrvr.

Chapter 14 Intelligent Feeder

14-17

14-3-3 ID Database

The ID database shows the link information between feeder ID barcodes and component

barcodes.

This section explains the functions of the ID database.

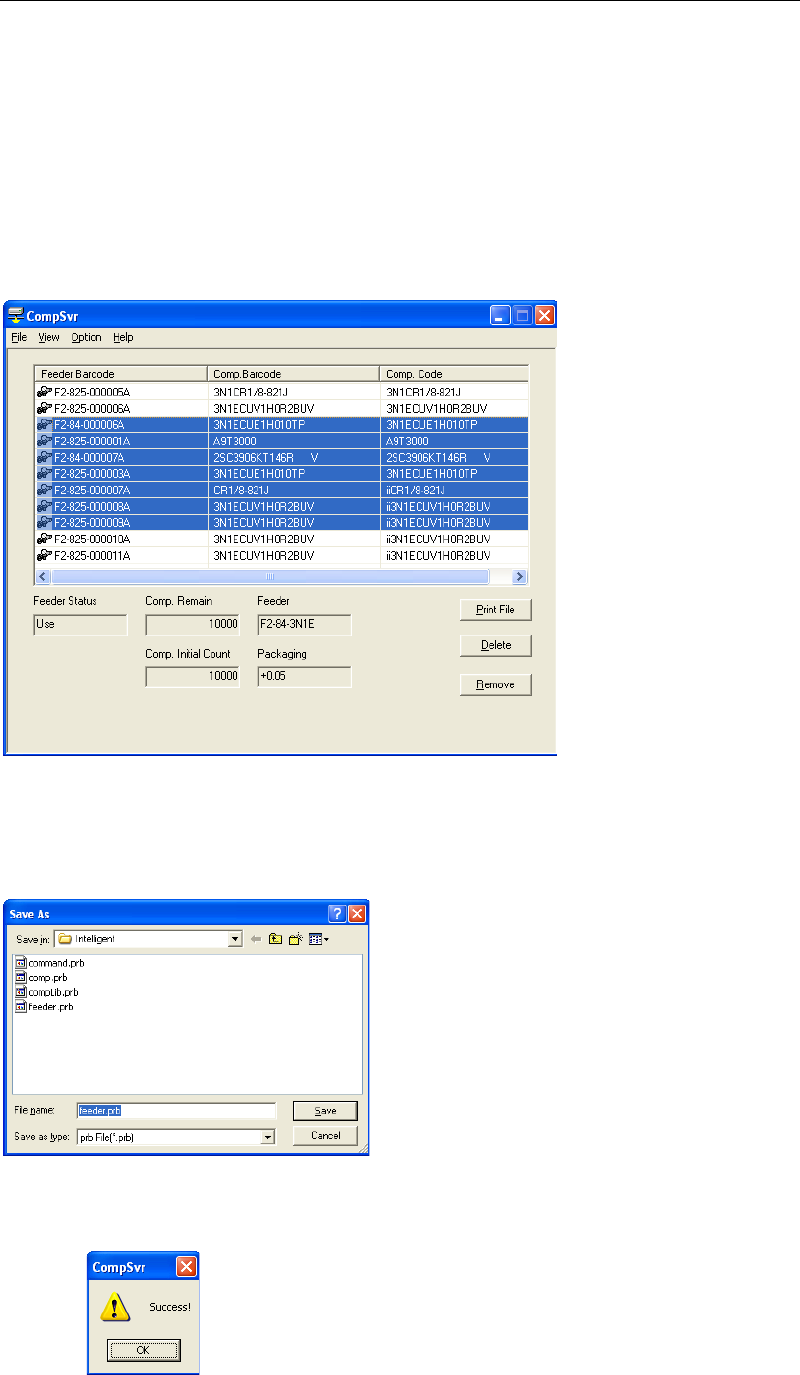

■Creating a Feeder Barcode Print File

Action:

① Select the feeder(s) whose barcode is to be printed. To select two or more feeders

collectively, drag the mouse while holding down the left button of the mouse.

② After a feeder record(s) is selected, click <Print File> button. The following dialog box will

appear, so enter the name of the file to be saved and the directory in which the file is to be

saved, and then click <Save>.

→The default file name is “feeder.prb”.

③ When the file is saved successfully, a message informing you will appear, so click <OK>

button.

REFERENCE: For feeder barcode printing, refer to “Printing Barcodes”.
