Chapter 1 General
1-23
1-4 Movable Range of Head Assembly
■ The following describes unavailable feeder stations of each head (feeder stations containing
unreachable pickup points).
Mounter M10
Head Qty ４ 6
Head No. 1 2 3 4 1 2 3 4 5 6
Unavailable ST
No. (F)
34-36 36
- -
32-36 34-36 36
- - -
Unavailable ST
No. (R)
1-3 1 1-5 1-3 1
Mounter M20
Head Qty ４ 6
Head No. 1 2 3 4 1 2 3 4 5 6
Unavailable ST
No. (FL)
34-36 36
- -
30-36 32-36 34-36 36 - -
Unavailable ST
No. (FR)
- - - - 1 1-3 1-5 1-7
Unavailable ST
No. (RL)
1-3 1 1-7 1-5 1-3 1 - -
Unavailable ST
No. (RR)
- - - - 36 34-36 32-36 30-36
Chapter 1 General
1-24
■ The following describes unavailable feeder stations of the main teach camera (feeder stations
containing unreachable pickup points).
Mounter M10
Head Qty ４ 6
Unavailable ST
No. (F)
- 35-36
Unavailable ST
No. (R)
- 1-2
Mounter M20
Head Qty ４ 6
Unavailable ST
No. (FL)
- 35-36
Unavailable ST
No. (FR)
-
1-2
Unavailable ST
No. (RL)
-
1-2
Unavailable ST
No. (RR)
-
35-36
■ Unavailable ANC (automatic nozzle changer) stations of each head (detaching disabled ANC stations)
Mounter M10
Head Qty ４ 6
Head No. 1 2 3 4 1 2 3 4 5 6
Unavailable ANC
station No.
- - - - - - - -
1-2
9-10
17-18
1-4
9-12
17-20
Mounter M20
Head Qty ４ 6
Head No. 1 2 3 4 1 2 3 4 5 6
Unavailable ANC
station No.
- - - - - - - - - -
Chapter 1 General
1-25
1-5 Adjusting Push-up Pin Height
Push-up pins, which are arranged on the Push-up plate, hold a PCB upward.

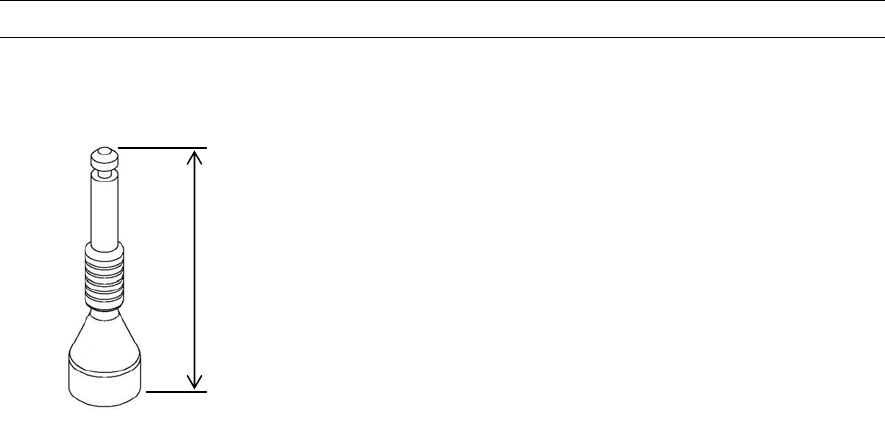

Note: There is only one type of push-up pin, the height is 45.0mm.
Hei
g
ht = 45.0mm
