Chapter 16 Dispenser 16-35 16-5-2-3 Washing the tube joint Action: ① After r emoving any residual dispense material from the interiors of the tube joint's metal components (tube joint, tube clamp) , wash these compo…
Chapter 16 Dispenser
16-34
③ Loosen the tube clamp bolt at the syringe side.
④ Extract the tube clamp and tube from the tube joint.
Tube clamp
Loosen this bolt.
Tube Tube joint
Syringe side
Chapter 16 Dispenser
16-35
16-5-2-3 Washing the tube joint
Action:
① After removing any residual dispense material from the interiors of the tube joint's
metal components (tube joint, tube clamp), wash these components ultrasonically in
ethyl alcohol or isopropyl alcohol.
Use care not to damage the components during the ultrasonic washing process.
② Do not wash the O-ring with a solvent as doing so could cause it to swell.
Use a cloth wetted with ethyl alcohol or isopropyl alcohol to clean off an adhered
dispense material.
③ Replace the tube with a new one.
Cut the new tube [SMC brand: soft fluorine resin tube: TD0604-20] to the prescribed
length of 240mm for use.
240mm
Chapter 16 Dispenser
16-36

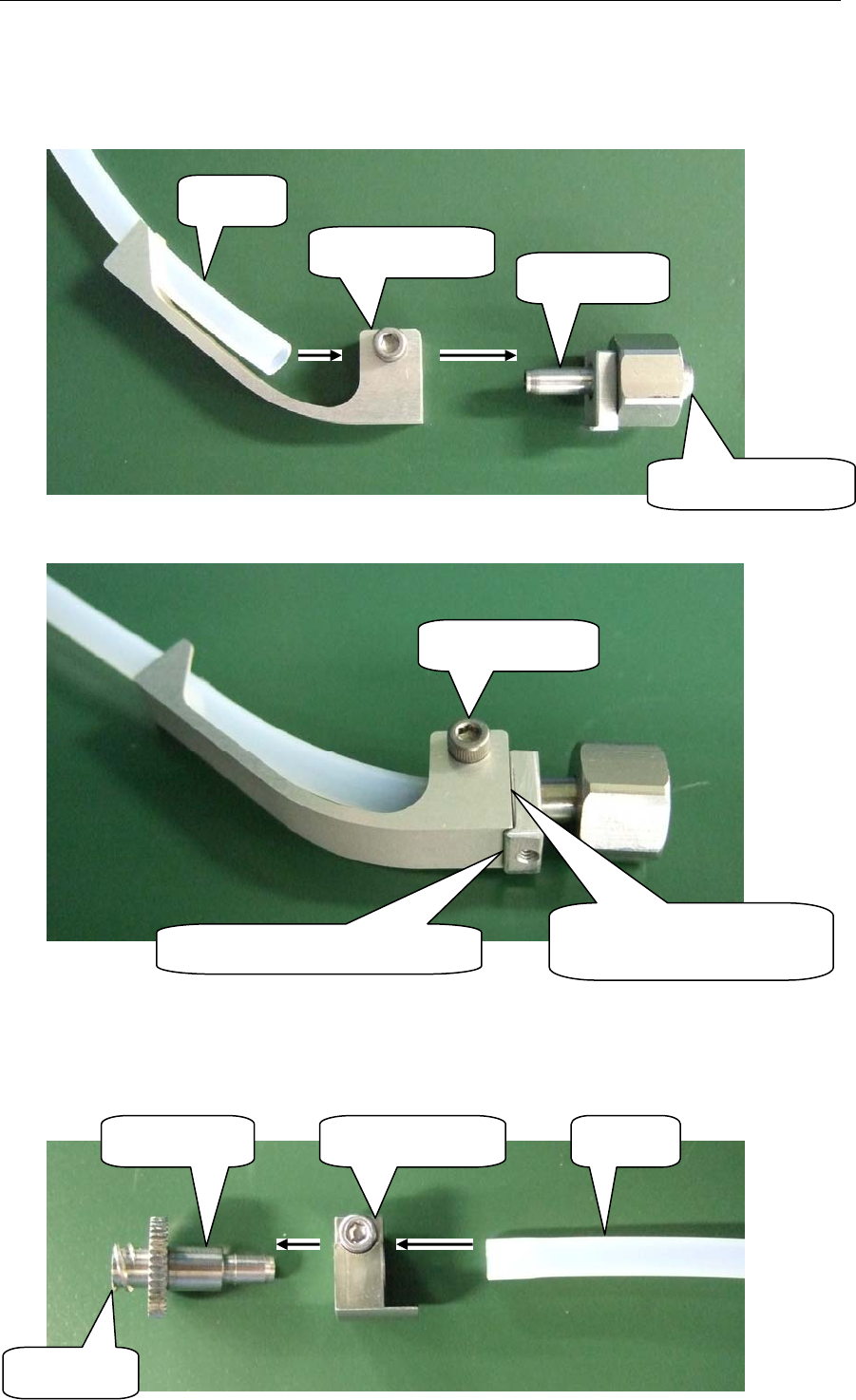

16-5-2-4 Reassembling the tube joint
Action:
① Reassemble the cartridge body side.
② Pass the tube through the tube clamp hole.
③ Next, insert the tube into the tube joint.
④ With the tube clamp pressed against the tube joint, tighten the bolt.
Be sure that the tube joint orientation is correct at this time.
⑤ Pull lightly on the tube to verify that it doesn't disconnect.
⑥ Reassemble the syringe side.
⑦ Pass the tube through the tube clamp hole.
⑧ Next, insert the tube into the tube joint.
Tube clamp
Tube
Tube joint
Cartridge body side
Tighten this bolt.
Note the tube joint's orientation.
Press the tube clamp against
the tube joint.
Tube clamp Tube Tube joint
Syringe side
