Chapter 2 Creating and Editing a Program 2-7 ④ Click "OK" button. The Advanced Wi ndow appears, so click <Yes>. ⑤ The following “Change Regional Options” wi ndow appears. The computer cannot be restarted …
Chapter 2 Creating and Editing a Program
2-6
② [System Language] window appears. Confirm the guidance on the window, which will help
you to change the System Language correctly, and click the [Next] button to continue.

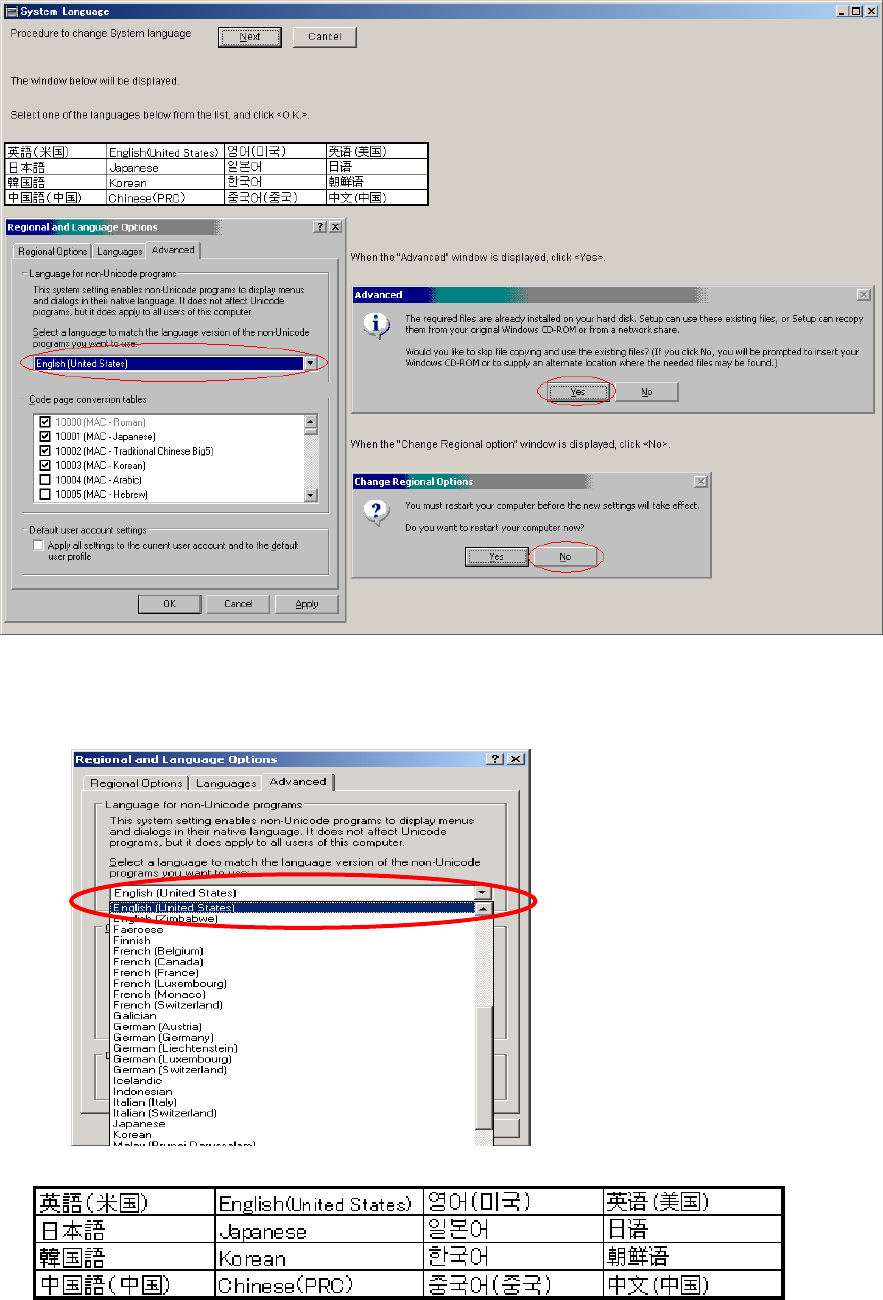

③ The following “Regional and Language Options” window appears, so click [Advance] tab
and select the desired language for each language group (Japanese, English, Korean, Chinese)
to be changed. (Refer to the table below.)
Chapter 2 Creating and Editing a Program
2-7

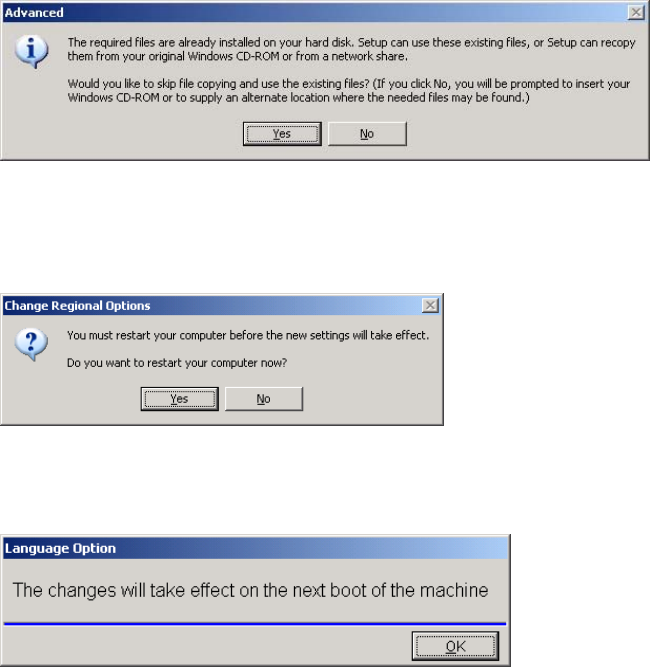

④ Click "OK" button. The Advanced Window appears, so click <Yes>.
⑤ The following “Change Regional Options” window appears. The computer cannot be
restarted at this time, so click <No>.
⑥ The following message appears, so click <OK> button.
⑦ Turn OFF the power of the mounter in the same way as you normally do. (i.e. MainMenu>
Exit>“Quite the System?” message appears. > Click <OK>)
⑧ Restart the mounter and check that the display language has been changed.
Chapter 2 Creating and Editing a Program
2-8
2-2 Data Entry Methods
2-2-1 Selecting a Cell for Data Entry
To select a cell, click the cell or move the active cell
1
by using the arrow keys. Then type in data
from the keyboard. Alternatively, right-click the mouse and select an item from the provided
combo box. To move directly to a specific line in the program editor/component library, use
Edit>GoTo menu. To move directly to a cell with specific text, use Edit>Find menu.
2-2-1-1 Moving to a Specific Line
Menu: Program>Edit>GoTo
Allows moving to a specified line.
Action:
① Select the line number you want to go to in the Go To dialog box.
② Click <Execute> button.
③ The active cell moves to the specified line.
Note: Each program/library editor has <First Line> and <Last Line> buttons. To move to the first line,
click <First Line> button. To move to the last line, click <Last Line> button.
First line button Last line button

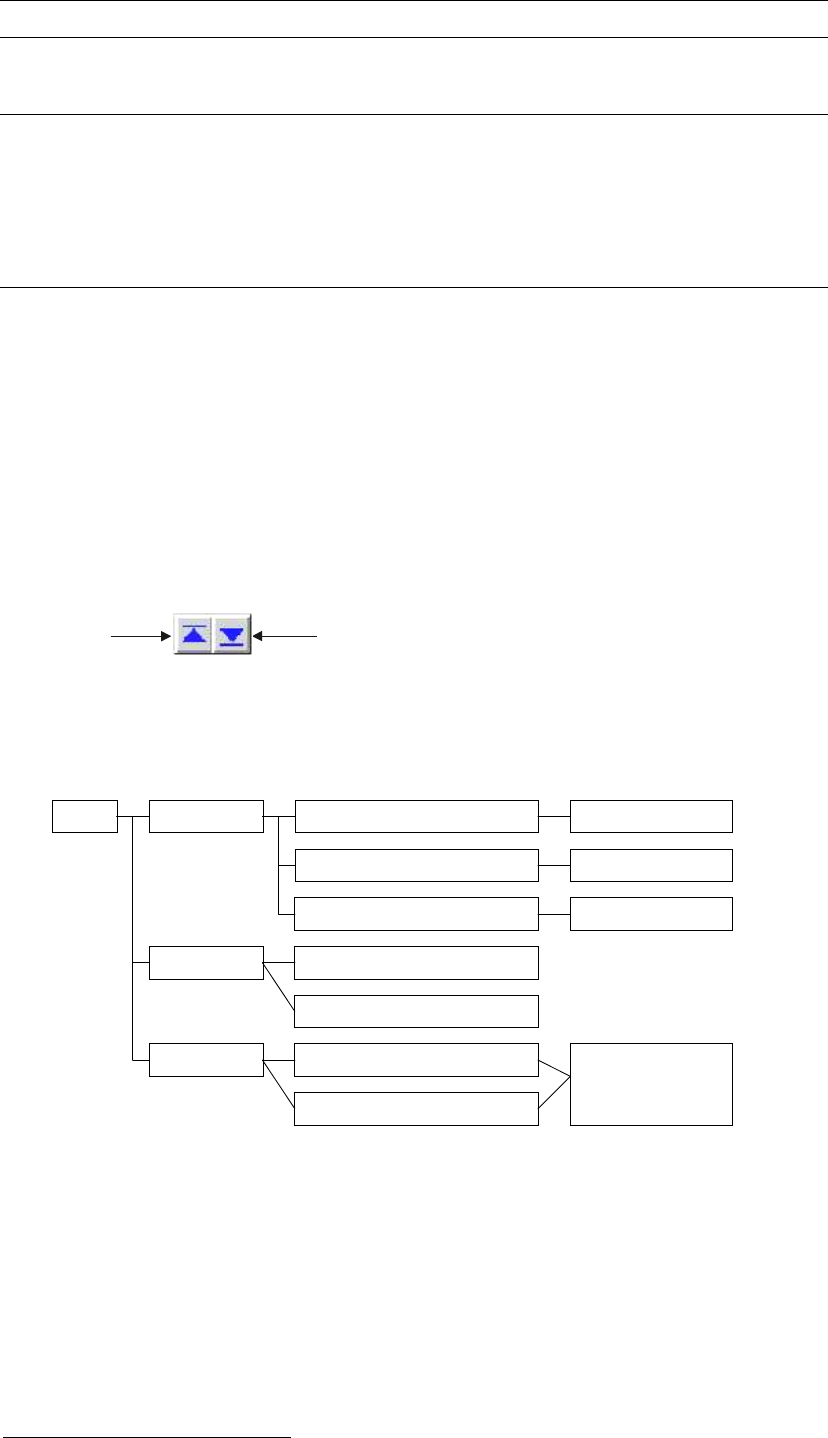

When particular data in the current editor is mapped to its correspondence in a different editor,
you can access the editor by double-clicking the data. See the below chart for access links.
Code Component Code Component Library > Component Code
Component Library > Image Code
Component Library > Nozzle No.
Feeder Library
Pallet Library
Packaging Library > Reject Location
Tray Library > Reject Location
Advanced Setting
Image Library
Nozzle Library
User Parameter >
Reject Location,
Reject Conveyor Offset
Feeder/Pallet
Packaging/Tray
Pickup Data
Placement&Mark Data
Libraries
1
Active cell: The currently selected cell for data entry. It is normally highlighted in blue.
