A-97 A26-2 【 RX-7R 】デュアルコンベア モータ部 【 RX-7R 】 Dual Conveyor motor １ ２ ２ ３ ３ ４ ５ ６ ７ ８ ８ ２１ ８ ８ ８ ２０ ８ ９ ９ ５ １０ １１ １０ １１ ５ １０ １１ １０ ５ １１ １０ ５ １１ １２ １３ １２ １３ １２ １３ １２ １３ １４ １４ １４ １４ １５ １７ １７ １７ １７ １７ １７ １８ １９ １９ １９ １９ ２２ ２４ …

100%1 / 296
A-96
A26-1
【RX-7】コンベア モータ部
【RX-7】Conveyor motor
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-454-261-01 BRACKET (L), MOTOR ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ (L) 1
2 EZ1-492-228-11 MOTOR ASSY ﾓ-ﾀ ASSY (ﾊﾊﾞﾁﾖｳ 2) 1
3 EZ4-454-289-01 NUT, MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 6
4 EZ1-492-230-14 BRAKE CLUTCH ASSY ﾌﾞﾚ-ｷ ｸﾗﾂﾁ ASSY 1
5 EZ1-492-218-32 MOTOR ASSY ﾓ-ﾀ ASSY (ｺﾝﾍﾞｱ 3) 1
6 EZ1-492-218-42 MOTOR ASSY ﾓ-ﾀ ASSY (ｺﾝﾍﾞｱ 4) 1
7 EZ4-453-822-01 PULLEY (P1110-009-1) (A) ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-009-1) A 4
8 EZ4-453-824-01 PULLEY (P1110-011-1) (C) ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-011-1) C 2
9 EZ4-453-828-01 BELT (318-3GT-9), TIMING ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (318-3GT-9) 1
10 EZ4-454-293-01 NUT, IDLER PLATE ｱｲﾄﾞﾗ-ﾊﾞﾝ ﾅﾂﾄ 2
11 EZ4-454-263-01 BRACKET, IDLER ｱｲﾄﾞﾗ- ﾌﾞﾗｹﾂﾄ 1
12 EZ4-453-830-01 IDLER (FIP1130), FLANGE PULLEY ﾌﾗﾝｼﾞﾂｷ ﾌﾟ-ﾘ- ｱｲﾄﾞﾗ- (FIP1130) 5
13 EZ4-454-295-01 COLLAR (DIA.13 DIA.8.2-L10.5) ｶﾗ- (ﾌｱｲ 13-ﾌｱｲ 8.2-L10.5) 5
14 EZ4-454-294-01 SHAFT, IDLER ｱｲﾄﾞﾗ- ｼﾔﾌﾄ 5
15 EZ4-454-367-01 COLLAR (DIA.7), IDLER ｱｲﾄﾞﾗ ｶﾗ- (ﾌｱｲ 7) 4
16 EZ4-454-516-01 BOLT (TSB4.5-20) ﾎﾞﾙﾄ (TSB4.5-20) 4
17 EZ4-718-724-05 NUT(1TYPE),HEXAGON(M4X0.7 SUS) ﾛﾂｶｸ ﾅﾂﾄ (1 ｼﾕ) (M4X0.7 SUS) 2
18 EZ4-718-767-03 SET-SCREW (M4X10 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M4X10 SUS) 2
19 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16 14
20 EZ7-683-436-04 BOLT,HEXAGON SOCKET 5X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12 4
21 EZ4-718-766-02 SET-SCREW (M3X5 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 10
22 EZ4-453-820-01 KEY (K04020), PARALLEL ﾍｲｺｳ ｷ- (K04020) 2
23 EZ4-454-262-01 BRACKET (R), MOTOR ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ (R) 1
24 EZ1-492-218-12 MOTOR ASSY ﾓ-ﾀ ASSY (ｺﾝﾍﾞｱ 1) 1
25 EZ1-492-218-21 MOTOR ASSY ﾓ-ﾀ ASSY (ｺﾝﾍﾞｱ 2) 1
26 EZ1-492-227-11 MOTOR ASSY ﾓ-ﾀ ASSY (ﾊﾊﾞﾁﾖｳ 1) 1
27 EZ4-454-289-01 NUT, MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 6
28 EZ4-454-293-01 NUT, IDLER PLATE ｱｲﾄﾞﾗ-ﾊﾞﾝ ﾅﾂﾄ 1
29 EZ4-453-822-01 PULLEY (P1110-009-1) (A) ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-009-1) A 3
30 EZ4-453-830-01 IDLER (FIP1130), FLANGE PULLEY ﾌﾗﾝｼﾞﾂｷ ﾌﾟ-ﾘ- ｱｲﾄﾞﾗ- (FIP1130) 2
31 EZ4-454-294-01 SHAFT, IDLER ｱｲﾄﾞﾗ- ｼﾔﾌﾄ 2
32 EZ4-454-295-01 COLLAR (DIA.13 DIA.8.2-L10.5) ｶﾗ- (ﾌｱｲ 13-ﾌｱｲ 8.2-L10.5) 2
33 EZ4-454-367-01 COLLAR (DIA.7), IDLER ｱｲﾄﾞﾗ ｶﾗ- (ﾌｱｲ 7) 2
34 EZ4-454-516-01 BOLT (TSB4.5-20) ﾎﾞﾙﾄ (TSB4.5-20) 2
35 EZ4-718-724-05 NUT(1TYPE),HEXAGON(M4X0.7 SUS) ﾛﾂｶｸ ﾅﾂﾄ (1 ｼﾕ) (M4X0.7 SUS) 2
36 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16 12
37 EZ4-718-767-03 SET-SCREW (M4X10 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M4X10 SUS) 2
38 EZ4-718-766-02 SET-SCREW (M3X5 SUS), HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 6
39 EZ4-454-928-01 BRACKET, TOOL CHIP ｼﾞｸﾞ ﾁﾂﾌﾟ ﾌﾞﾗｹﾂﾄ 1
40 EZ4-454-549-01 PIN (B3X8) PARALLEL ﾍｲｺｳ ﾋﾟﾝ (B3X8) 4
41 EZ4-454-927-01 BLOCK, TOOL CHIP ｼﾞｸﾞ ﾁﾂﾌﾟ ﾌﾞﾛﾂｸ 2
42 EZ4-455-731-01 UNION (KJH02-M3), HALF ﾊ-ﾌ ﾕﾆｵﾝ (KJH02-M3) 4
43 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 4
44 EZ4-701-529-01 TIE MOUNT (MB1) ﾀｲﾏｳﾝﾄ (MB1) 2
45 EZ7-682-246-09 SCREW +K 3X5 +K 3X5 2
46 EZ4-454-520-01 HOLDER (VUK05), FIXED ｺﾃｲﾖｳ ﾎﾙﾀﾞ (VUK05) 2
47 EZ4-454-521-01 GENERATOR (VUH05-44A), VACUUM ｼﾝｸｳ ﾊﾂｾｲｷ (VUH05-44A) 2
48 EZ4-455-732-01 STRAIGHT (KJH02-04) ｲｹｲ ｽﾄﾚ-ﾄ (KJH02-04) 4
49 EZ7-630-003-47 TUBE(TU0425B-100-X3) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0425B-100-X3) 4
50 EZ4-461-299-01 GLASS CHIP (7X7) ｶﾞﾗｽ ﾁﾂﾌﾟ (7X7) 4
A-97
A26-2

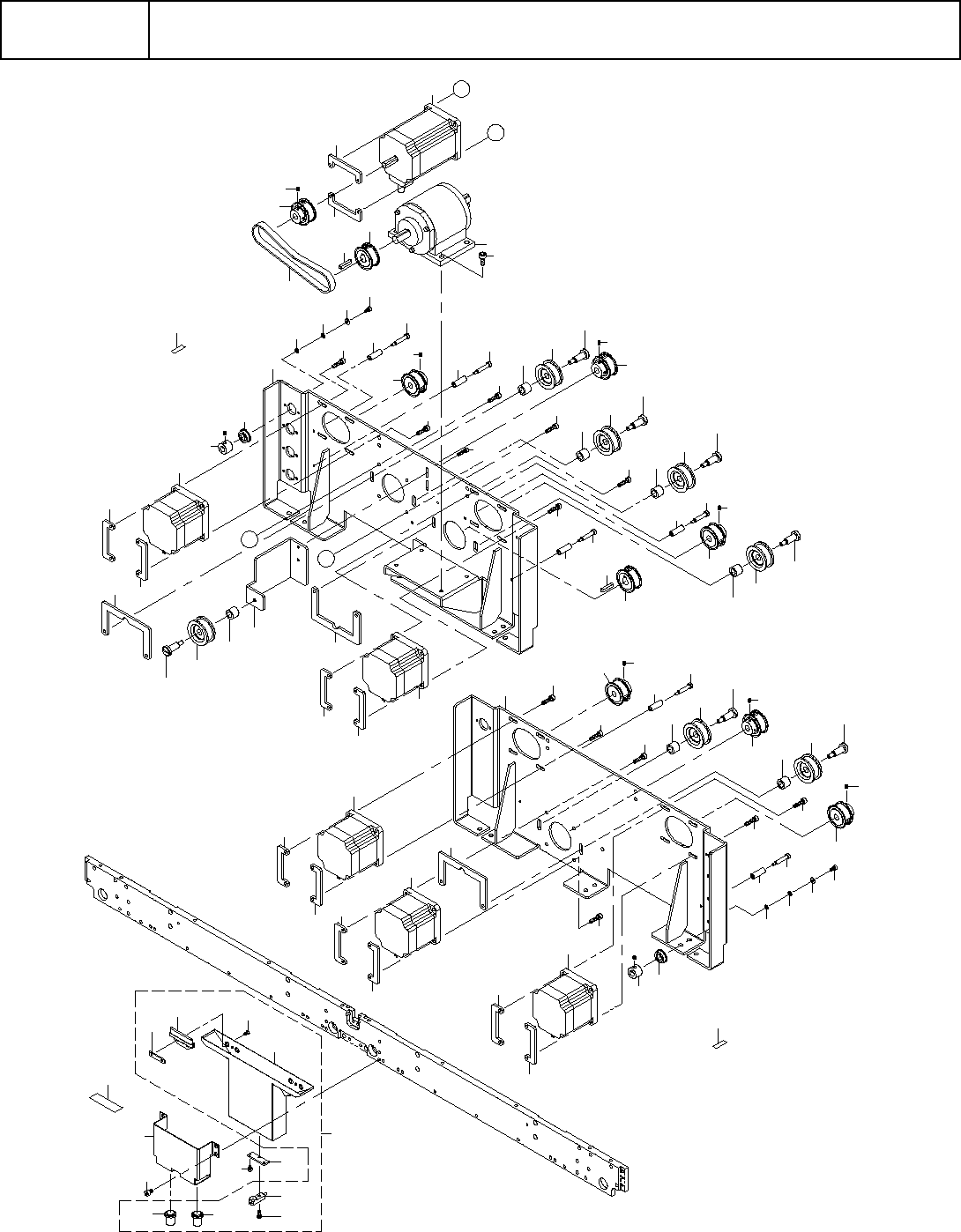

【RX-7R】デュアルコンベア モータ部
【RX-7R】Dual Conveyor motor
１
２
２
３
３
４
５
６
７
８
８
２１
８
８
８
２０
８
９
９
５
１０
１１
１０
１１
５
１０
１１
１０
５
１１
１０
５
１１
１２
１３
１２
１３
１２
１３
１２
１３
１４
１４
１４
１４
１５
１７
１７
１７
１７
１７
１７
１８
１９
１９
１９
１９
２２
２４
２３
２５
２６
２７
２７
１６
Ａ
Ｂ
Ａ
Ｂ
３３
２８
３２
３３
２８
３２
２９
３０
３０
４１
４２
３０
３０
３０
３０
３１
３４
３５
３４
３５
３６
３９
３６
３９
３９
１４
３７
３８
３８
３８
３８
３８
３８
４０
４３
４４
４５
４６
４７
４７
５１
５５
４９
５０
５８
５６
５９
５３
５４
５４
５２
５７
６０
２
４８
A-98
A26-2
【RX-7R】デュアルコンベア モータ部
【RX-7R】Dual Conveyor motor
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-230-14 BRAKE CLUTCH ASSY ﾌﾞﾚ-ｷ ｸﾗﾂﾁ ASSY 1
2 EZ4-453-820-01 KEY (K04020) PARALLEL ﾍｲｺｳ ｷ- (K04020) 2
3 EZ4-453-824-01 PULLEY (P1110-011-1) (C) ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-011-1) C 2
4 EZ4-453-828-01 BELT (318-3GT-9) TIMING ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (318-3GT-9) 1
5 EZ4-453-830-01 IDLER (FIP1130) FLANGE PULLEY ﾌﾗﾝｼﾞﾂｷ ﾌﾟ-ﾘ- ｱｲﾄﾞﾗ- (FIP1130) 5
6 401-93563 BRACKET(L)_MOTOR ﾓｰﾀｰﾌﾞﾗｹｯﾄ(L) 1
7 EZ4-454-263-01 BRACKET IDLER ｱｲﾄﾞﾗ- ﾌﾞﾗｹﾂﾄ 1
8 EZ4-454-289-01 NUT MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 6
9 EZ4-454-293-02 NUT IDLER PLATE ｱｲﾄﾞﾗ- ｲﾀ ﾅﾂﾄ 2
10 EZ4-454-294-01 SHAFT IDLER ｱｲﾄﾞﾗ- ｼﾔﾌﾄ 5
11 EZ4-454-295-01 COLLAR (DIA.13 DIA.8.2-L10.5) ｶﾗ- (ﾌｱｲ 13-ﾌｱｲ 8.2-L10.5) 5
12 EZ4-454-367-01 COLLAR (DIA.7) IDLER ｱｲﾄﾞﾗ ｶﾗ- (ﾌｱｲ 7) 4
13 EZ4-454-516-01 BOLT (TSB4.5-20) ﾎﾞﾙﾄ (TSB4.5-20) 4
14 EZ4-718-766-02 SET-SCREW (M3X5 SUS) HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 8
15 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) 4
16 EZ7-683-420-04 BOLT HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 2
17 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 12
18 EZ7-683-436-04 BOLT HEXAGON SOCKET 5X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12 4
19 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 4
20 401-59491 MOTOR ASSY (CVRL) ﾓｰﾀｰ ASSY (CVRL) 1
21 401-59489 MOTOR ASSY (CVFL) ﾓｰﾀｰ ASSY (CVFL) 1
22 401-59494 MOTOR ASSY (ADR) ﾓｰﾀｰ ASSY (ADR) 1
23 SB-1080002-00 BEARING ころがり軸受 5
24 E2141-721-000 STOPPER COLLAR ｽﾄｯﾊﾟｶﾗｰ 5
25 SM-6030602-TN SCREW M3X6 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6 10
26 WP-0330516-SC WASHER 3.3X8X0.5 ﾋﾗｻﾞｶﾞﾈ 3.3X8X0.5 10
27 WP-0320500-SF WASHER 3.2X7X0.5 ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M3 20
28 EZ4-453-830-01 IDLER (FIP1130) FLANGE PULLEY ﾌﾗﾝｼﾞﾂｷ ﾌﾟ-ﾘ- ｱｲﾄﾞﾗ- (FIP1130) 2
29 401-93562 BRACKET(R)_MOTOR ﾓｰﾀｰﾌﾞﾗｹｯﾄ(R) 1
30 EZ4-454-289-01 NUT MOTOR PLATE ﾓ-ﾀ ｲﾀ ﾅﾂﾄ 6
31 EZ4-454-293-02 NUT IDLER PLATE ｱｲﾄﾞﾗ- ｲﾀ ﾅﾂﾄ 1
32 EZ4-454-294-01 SHAFT IDLER ｱｲﾄﾞﾗ- ｼﾔﾌﾄ 2
33 EZ4-454-295-01 COLLAR (DIA.13 DIA.8.2-L10.5) ｶﾗ- (ﾌｱｲ 13-ﾌｱｲ 8.2-L10.5) 2
34 EZ4-454-367-01 COLLAR (DIA.7) IDLER ｱｲﾄﾞﾗ ｶﾗ- (ﾌｱｲ 7) 2
35 EZ4-454-516-01 BOLT (TSB4.5-20) ﾎﾞﾙﾄ (TSB4.5-20) 2
36 EZ4-718-766-02 SET-SCREW (M3X5 SUS) HEAD ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X5 SUS) 6
37 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) 3
38 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 12
39 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 3
40 401-59490 MOTOR ASSY (CVFR) ﾓｰﾀｰ ASSY (CVFR) 1
41 401-59492 MOTOR ASSY (CVRR) ﾓｰﾀｰ ASSY (CVRR) 1
42 401-59493 MOTOR ASSY (ADF) ﾓｰﾀｰ ASSY (ADF) 1
43 SB-1080002-00 BEARING ころがり軸受 5
44 E2141-721-000 STOPPER COLLAR ｽﾄｯﾊﾟｶﾗｰ 5
45 SM-6030602-TN SCREW M3X6 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6 10
46 WP-0330516-SC WASHER 3.3X8X0.5 ﾋﾗｻﾞｶﾞﾈ 3.3X8X0.5 10
47 WP-0320500-SF WASHER 3.2X7X0.5 ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M3 20
48 EZA-193-711-1A BOX ASSY DUST ﾀﾞｽﾄ ﾎﾞﾂｸｽ ASSY 1
49 EZ1-492-363-12 SENSOR ASSY ｾﾝｻ ASSY (ｺﾞﾐﾊﾞｺ (C) ｱﾘﾅｼ) (1)
50 EZ2-679-468-11 BOLT (CBSTS3-8) ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTS3-8) (1)
