A-1 12 A28-2 【 RX-7R 】基板ストッパー ASSY 【 RX-7R 】 PWB stopper assy 1 1 1 401-61 133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ (M-3ALU-2) (2) 1 12 401-61 134 DRY_BEARING(GSM-0304-05) ﾄﾞﾗｲﾍﾞｱﾘﾝｸﾞ(GSM-0304-05) (4) 1 13 RE-0200000-K0 E-RING…

100%1 / 296
A-111
A28-2
【RX-7R】基板ストッパー ASSY
【RX-7R】PWB stopper assy
55 401-61120 PIN_STOPPER HINGE ｽﾄﾂﾊﾟ- ﾋﾝｼﾞ ﾋﾟﾝ (2)
56 401-61122 LINK_SPACER ﾘﾝｸｽﾍﾟｰｻｰ (2)
57 401-61123 LINK_COLLAR ﾘﾝｸｶﾗｰ (2)
58 401-61124 STTOPER_BLOCK_SPACER ｽﾄｯﾊﾟｰﾌﾞﾛｯｸｽﾍﾟｰｻｰ (1)
59 EZ4-454-328-01 STOPPER CLAMP ｸﾗﾝﾌﾟ ｽﾄﾂﾊﾟ (1)
60 401-61132 CYLINDER(CDUJB8-15D) ｼﾘﾝﾀﾞ (CDUJB8-15D) (1)
61 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ (M-3ALU-2) (2)
62 401-61134 DRY_BEARING(GSM-0304-05) ﾄﾞﾗｲﾍﾞｱﾘﾝｸﾞ(GSM-0304-05) (4)
63 RE-0200000-K0 E-RING 2 E 形止め輪 2 (1)
64 401-61135 STOPPER_BOLT(SUB-M4-20) ｳﾚﾀﾝﾂｷｽﾄｯﾊﾟﾎﾞﾙﾄ(SUB-M4-20) (1)
65 SM-6033502-TN SCREW M3 L=35 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=35 (2)
66 402-00994 HOLDER_ST UNIT ｽﾄｯﾊﾟｰﾕﾆｯﾄﾎﾙﾀﾞｰ (1)
67 401-91356 STOPPER_JOINT ｼﾞｮｲﾝﾄｽﾄｯﾊﾟｰ (1)
68 401-95902 STOPPER LEVER(A) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(A) (1)
69 401-91357 PLATE_STOPPER ｽﾄｯﾊﾟｰﾌﾟﾚｰﾄ (1)
70 402-09860 STOPPER FRAME(2)_DUAL ｽﾄｯﾊﾟｰﾌﾚｰﾑ(2)_ﾃﾞｭｱﾙ (1)
71 402-01279 LEVER(2)STOPPER ｽﾄｯﾊﾟｰﾚﾊﾞｰ(2) (2)
72 402-01325 LEVER_STOPPER(3) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(3) (1)
73 E2038-721-000 STOPPER COLLAR ｽﾄｯﾊﾟｶﾗｰ (1)
74 400-00910 STOPER_PIN ｽﾄｯﾊﾟﾋﾟﾝ (1)
75 401-98649 STOPPER_CONNECT(2) ｽﾄｯﾊﾟｰｺﾈｸﾄ(2) (1)
76 E2039-721-000 WASHER A ｽﾗｽﾄﾜｯｼｬ A (2)
77 WP-0320501-SC WASHER M3 ﾋﾗｻﾞｶﾞﾈ M3 (2)
78 RE-0200000-K0 E-RING 2 E 形止め輪 2 (1)
79 SM-1031201-SC SCREW M3X0.5 L=12 ｻﾗｺﾈｼﾞ M3X0.5 L=12 (1)
80 NM-6030003-SC NUT M3X0.5 TYPE3 六角 ﾅｯﾄ M3X0.5 3 種 (2)
81 EZ4-455-734-01 UNION (KJL02-M5) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KJL02-M5) (2)
82 SM-6031402-TN SCREW M3X0.5 L=14 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X0.5 L=14 (2)
83 SL-6030892-TN SCREW M3 L=8 座金付き六角穴ﾎﾞﾙﾄ M3 L=8 (2)
84 402-02234 CYLINDER(BDAS10X25) ｼﾘﾝﾀﾞ(BDAS10X25) (1)
85 402-04781 SENSOR HOLDER(C1-BDAS10) ｾﾝｻｰﾎﾙﾀﾞｰ(C1-BDAS10) (1)
86 402-12266 SENSOR ASSY(ST) ｾﾝｻｰ ASSY(ST) (1)
87 402-07070 SENSOR ASSY(ST_2) ｾﾝｻｰ ASSY(ST_2) (1)
88 401-66475 STOPPER TOP ｽﾄｯﾊﾟｰﾄｯﾌﾟ (2)
89 SM-1030501-SC SCREW M3 L=5 ｻﾗｺﾈｼﾞ M3 L=5 (6)
90 402-09256 STOPPRT SPACER ｽﾄｯﾊﾟｰｽﾍﾟｰｻｰ (1)
91 401-61112 STTOPER_BLOCK ｽﾄﾂﾊﾟ-ﾌﾞﾛﾂｸ (1)
92 402-07026 STOPPER ASSEMBLY_SINGLE ｽﾄｯﾊﾟ ASSEMBLY(ｼﾝｸﾞﾙ) 1
93 402-07027 STOPPER KIT_SINGLE ｽﾄｯﾊﾟｷｯﾄ(ｼﾝｸﾞﾙ) (1)
94 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) (2)
95 PJ-3050800-03 T 8 ﾁｰｽﾞ 8 (1)
96 EZ7-632-378-00 TUBE POLYURETHAN (TU0805B) ﾎﾟﾘｳﾚﾀﾝ ﾁﾕ-ﾌﾞ (TU0805B)5X8X20M (1)
97 EZ4-447-063-41 UNION (KQ2L08-01AS) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L08-01AS) (1)
98 402-07028 SOLENOID VALVE(ST)ASSY_SINGLE ｿﾚﾉｲﾄﾞﾊﾞﾂﾌﾞ(ST)ASSY(ｼﾝｸﾞﾙ) (1)
99 EZ7-683-427-04 BOLT HEXAGON SOCKET 4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25 (4)
100 EZ4-716-434-31 TIE INSULOCK (AB200 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ (AB200 ｸﾛ) (9)
101 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) (8)
102 PJ-3040851-01 ELBOW UNION 8XPT1/8 ｴﾙﾎﾞ ﾕﾆｵﾝ 8XPT1/8 (1)
103 EZ4-457-146-31 CONTROLLER (AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A) (4)
104 402-07029 STOPPER ASSY_SINGLE ｽﾄｯﾊﾟ ASSY(ｼﾝｸﾞﾙ) 2
105 401-61120 PIN_STOPPER HINGE ｽﾄﾂﾊﾟ- ﾋﾝｼﾞ ﾋﾟﾝ (2)
106 401-61122 LINK_SPACER ﾘﾝｸｽﾍﾟｰｻｰ (2)
107 401-61123 LINK_COLLAR ﾘﾝｸｶﾗｰ (2)
108 401-61124 STTOPER_BLOCK_SPACER ｽﾄｯﾊﾟｰﾌﾞﾛｯｸｽﾍﾟｰｻｰ (1)
109 EZ4-454-328-01 STOPPER CLAMP ｸﾗﾝﾌﾟ ｽﾄﾂﾊﾟ (1)
110 401-61132 CYLINDER(CDUJB8-15D) ｼﾘﾝﾀﾞ (CDUJB8-15D) (1)
A-112
A28-2
【RX-7R】基板ストッパー ASSY
【RX-7R】PWB stopper assy
111 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ (M-3ALU-2) (2)
112 401-61134 DRY_BEARING(GSM-0304-05) ﾄﾞﾗｲﾍﾞｱﾘﾝｸﾞ(GSM-0304-05) (4)
113 RE-0200000-K0 E-RING 2 E 形止め輪 2 (1)
114 401-61135 STOPPER_BOLT(SUB-M4-20) ｳﾚﾀﾝﾂｷｽﾄｯﾊﾟﾎﾞﾙﾄ(SUB-M4-20) (1)
115 SM-6033502-TN SCREW M3 L=35 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=35 (2)
116 402-00994 HOLDER_ST UNIT ｽﾄｯﾊﾟｰﾕﾆｯﾄﾎﾙﾀﾞｰ (1)
117 401-91356 STOPPER_JOINT ｼﾞｮｲﾝﾄｽﾄｯﾊﾟｰ (1)
118 401-95902 STOPPER LEVER(A) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(A) (1)
119 401-61482 SENSOR ASSY(ST) ｾﾝｻｰ ASSY(ST) (1)
120 401-91357 PLATE_STOPPER ｽﾄｯﾊﾟｰﾌﾟﾚｰﾄ (1)
121 SM-1030501-SC SCREW M3 L=5 ｻﾗｺﾈｼﾞ M3 L=5 (3)
122 401-61112 STTOPER_BLOCK ｽﾄﾂﾊﾟ-ﾌﾞﾛﾂｸ (1)
123 402-09256 STOPPRT SPACER ｽﾄｯﾊﾟｰｽﾍﾟｰｻｰ 1

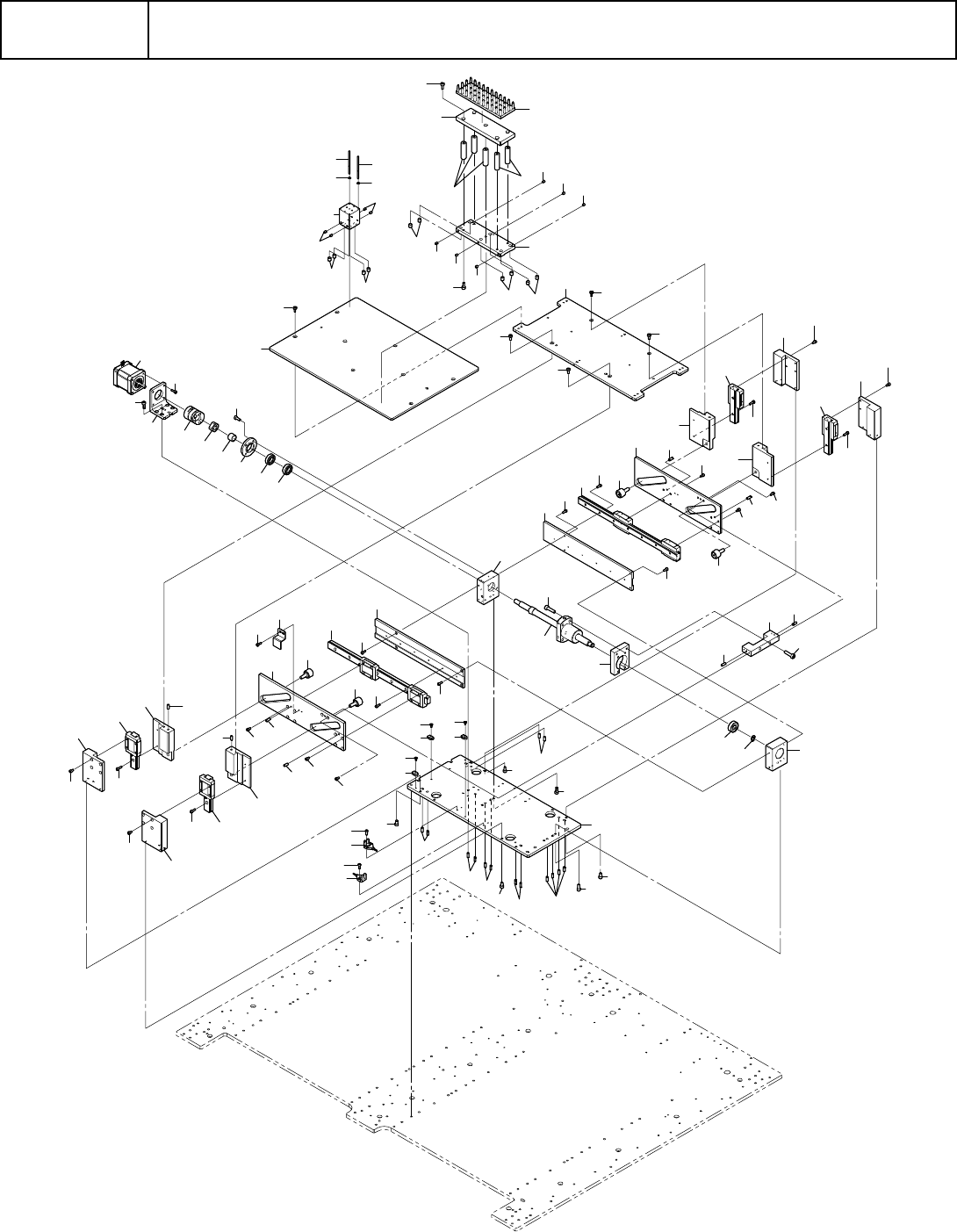

A-113
A29-1
【RX-7】搬送部 バックアップユニット
【RX-7】Backup unit
