A-1 19 A30-1 【 RX-7 】電装 BOX-1 【 RX-7 】 Electrical box - 1 15 34 21 34 30 34 28 30 13 32 13 32 20 34 33 22 15 33 15 33 15 32 13 30 47 47 28 23 33 34 34 34 48 14 27 6 11 12 16 33 33 24 24 33 33 33 33 3 1 2 33 25 33 33 25 3…
A-119
A30-1

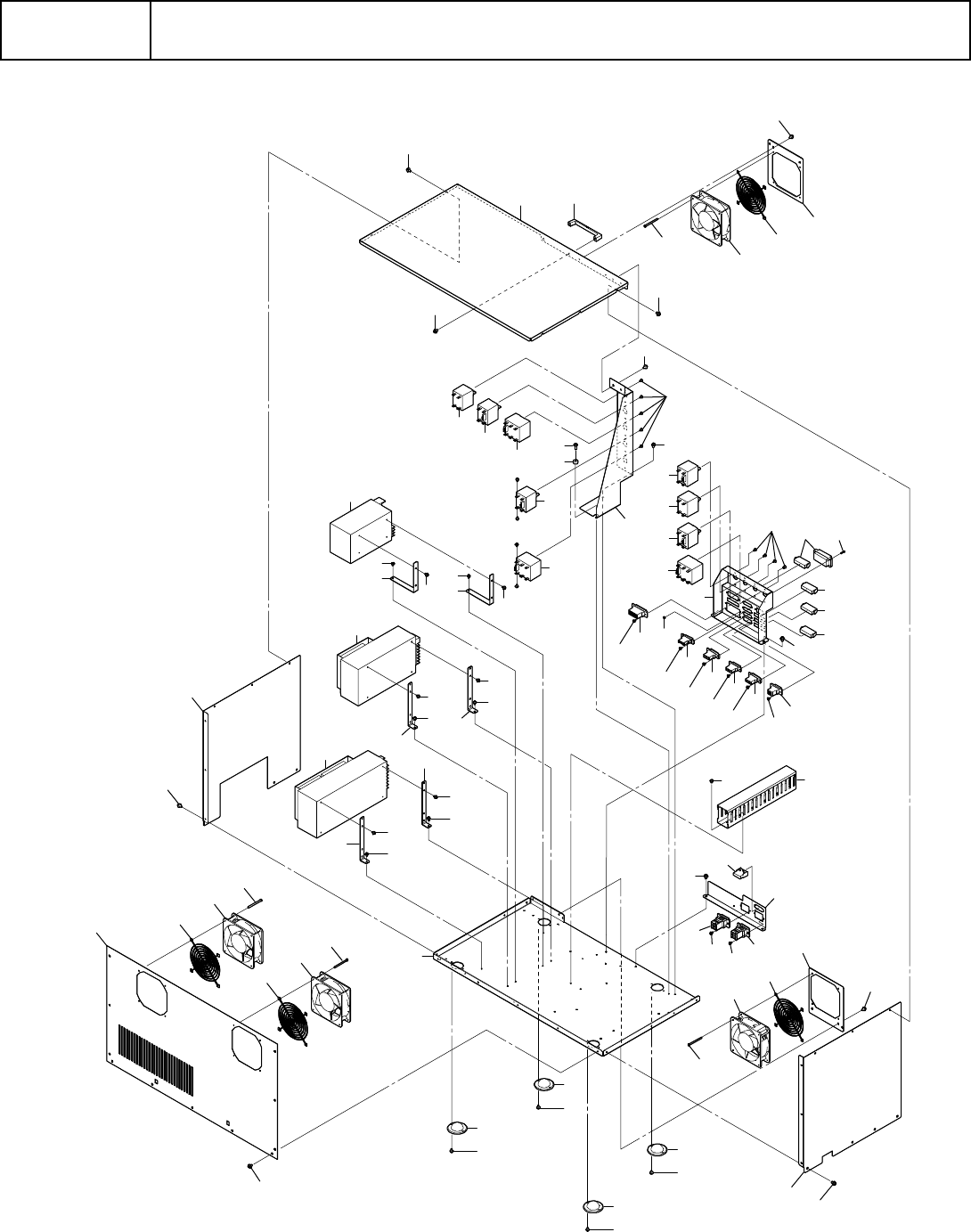

【RX-7】電装 BOX-1
【RX-7】Electrical box - 1
15
34
21
34
30
34
28
30
13
32
13
32
20
34
33
22
15
33
15
33
15
32
13
30
47
47
28
23
33
34
34
34
48
14
27
6
11
12
16
33
33
24
24
33
33
33
33
3
1
2
33
25
33
33
25
33
33
25
33
25
7
8
5
9
10
39
44
49
17
34
26
33
34
46
38
37
45
48
31
35
40
41
42
43
36
4
29
30
13
32
19
34
34
18
34
49
49
49
49
49
49
49
A-120
A30-1
【RX-7】電装 BOX-1
【RX-7】Electrical box - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-474-521-11 REGULATOR,SWITCHING(HWS600P-*) REGULATOR,SWITCHING(HWS600P-*) 1
2 EZ1-474-528-11 REGULATOR,SWITCHING(ADA1000F*) REGULATOR,SWITCHING(ADA1000F*) 1
3 EZ1-474-529-11 REGULATOR,SWITCHING(ADA750F-*) REGULATOR,SWITCHING(ADA750F-*) 1
4 EZ1-523-270-11 BREAKER, CIRCUIT(CP32V/2WDN) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/2WDN) 1
5 EZ1-523-272-11 BREAKER, CIRCUIT(CP32V/15WDC) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/15WDC) 1
6 EZ1-523-273-11 BREAKER, CIRCUIT(CP33V/2W) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/2W) 1
7 EZ1-523-275-11 BREAKER, CIRCUIT(CP33V/20WDN) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/20WDN) 1
8 EZ1-523-295-11 BREAKER, CIRCUIT (CP32V/30WDC) BREAKER, CIRCUIT (CP32V/30WDC) 1
9 EZ1-523-303-11 BREAKER, CIRCUIT (CP32V/10WDC) BREAKER, CIRCUIT (CP32V/10WDC) 1
10 EZ1-523-304-11 BREAKER, CIRCUIT(CP33V/7.5WDC) BREAKER, CIRCUIT(CP33V/7.5WDC) 1
11 EZ1-533-718-11 BREAKER, CIRCUIT (CP32V/7.5W) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/7.5W) 1
12 EZ1-576-339-11 BREAKER, CIRCUIT (CP32V/3) ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/3) 1
13 EZ1-763-987-11 FAN (4715MS-20T-B5A-B01) ﾌｱﾝ (4715MS-20T-B5A-B01) 4
14 EZ2-580-608-01 SCREW, +PSW M5X16 SCREW, +PSW M5X16 1
15 EZ4-180-708-01 CASTER (K-142-8L), BALL ﾎﾞ-ﾙ ｷﾔｽﾀ- (K-142-8L) 4
16 EZ4-453-730-02 PANEL (ACCP), FRONT COVER ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (ACCP) 1
17 EZ4-453-731-03 PANEL (DCCP), FRONT COVER ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (DCCP) 1
18 EZ4-453-732-03 PANEL (R), SIDE ｿｸﾒﾝ ﾊﾟﾈﾙ R 1
19 EZ4-453-733-01 PANEL (L), SIDE ｿｸﾒﾝ ﾊﾟﾈﾙ L 1
20 EZ4-453-734-01 PANEL, REAR ﾊｲﾒﾝ ﾊﾟﾈﾙ 1
21 EZ4-453-735-02 PANEL, UPPER ｼﾞﾖｳﾌﾞ ﾊﾟﾈﾙ 1
22 EZ4-453-737-05 PANEL, MAIN BASE ﾒｲﾝ ﾍﾞ-ｽ ﾊﾟﾈﾙ 1
23 EZ4-453-744-03 PANEL, AC CONNECTOR AC ｺﾈｸﾀ ﾊﾟﾈﾙ 1
24 EZ4-453-746-02 BRACKET, POWER FITTING ｽｲﾂﾁﾝｸﾞ ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ 2
25 EZ4-453-763-01 BRACKET (F-ADA-2) ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ (F-ADA-2) 4
26 EZ4-453-971-01 DUCT (AD-462), WIRING ﾊｲｾﾝ ﾀﾞｸﾄ (AD-462 ｾﾞﾝﾁﾖｳ 1M) 1
27 EZ4-459-135-01 COLLAR(CLJGJ14-5-6-TC2) ｼﾞﾕｼ ｶﾗ- (CLJGJ14-5-6-TC2) 1
28 EZ4-472-227-01 BRACKET, FAN ﾌｱﾝ ﾌﾞﾗｹﾂﾄ 2
29 EZ4-705-232-11 HANDLE 3, SQUARE (165-4) ｶｸｶﾞﾀ 3 ｺﾞｳ ﾄﾂﾃ (A165-4) 1
30 EZ4-720-311-01 GUARD, FAN (PG-47-02) ﾌｱﾝ ｶﾞ-ﾄﾞ (PG-47-02) 4
31 EZ7-682-150-01 SCREW +P 3X12 +P 3X12 4
32 EZ7-682-172-01 SCREW +P 4X50 +P 4X50 16
33 EZ7-682-961-01 SCREW +PSW 4X8 +PSW 4X8 28
34 EZ7-682-973-11 SCREW +PSW 5X10 +PSW 5X10 37
35 EZ7-684-023-04 N 3 TYPE 2 N 3 TYPE 2 4
36 EZ1-969-094-13 HARNESS (CP9-SV3, 4, 5) ﾊ-ﾈｽ (CP9-SV3, 4, 5) 1
37 EZ1-969-085-12 HARNESS (SDIO CN2701-IO1) ﾊ-ﾈｽ (SDIO CN2701-IO1) 1
38 EZ1-969-084-14 HARNESS (SDIO CN2903-H-IO) ﾊ-ﾈｽ (SDIO CN2903-H-IO) 1
39 EZ1-969-084-24 HARNESS (SDIO CN2904-H-IO) ﾊ-ﾈｽ (SDIO CN2904-H-IO) 1
40 EZ1-969-102-11 HARNESS (ATX-TP, POW) ﾊ-ﾈｽ (ATX-TP, POW) 1
41 EZ1-969-779-11 HARNESS (TB5-BOX CN3) ﾊ-ﾈｽ (TB5-BOX CN3) 1
42 EZ1-969-780-11 HARNESS (TB5-BOX CN4) ﾊ-ﾈｽ (TB5-BOX CN4) 1
43 EZ1-969-083-13 HARNESS(TB5-CONV, POW3) ﾊ-ﾈｽ (TB5-CONV, POW3) 1
44 EZ1-969-098-13 HARNESS (CR2, 3-TROLLY, POW) ﾊ-ﾈｽ (CR2, 3-TROLLY, POW) 1
45 EZ1-969-099-16 HARNESS (SDIO CN2800-2 ECT-IF) ﾊ-ﾈｽ (SDIO CN2800-2 ECT-IF) 1
46 EZ1-969-092-12 HARNESS (CP3-VAC) ﾊ-ﾈｽ (CP3-VAC) 1
47 EZ1-969-065-12 HARNESS(ACIN-TB1) ﾊ-ﾈｽ (ACIN-TB1) 1
48 EZ7-682-947-01 SCREW +PSW 3X6 +PSW 3X6 18
49 EZ7-682-948-01 SCREW +PSW 3X8 +PSW 3X8 16
