A-153 A39-1 【共通】EF フィーダ用台車本体 -1 【 COMMON 】 Trolley unit for EF Feeder - 1 3 4 55 56 57 15 12 13 19 20 21 21 20 27 26 26 27 23 24 28 29 30 30 22 31 33 33 6 35 35 36 36 32 37 38 38 39 18 25 43 43 42 54 44 45 44 45 46 47 46…
A-152
A38
【共通】ノズル
【COMMON】Nozzle
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZA-192-386-7A NOZZLE KIT HF0402R HF0402R ﾉｽﾞﾙ KIT 1 NozzleID:501
2 EZA-192-386-9A NOZZLE KIT HF0603R HF0603R ﾉｽﾞﾙ KIT 1 NozzleID:502
3 EZA-192-387-1A NOZZLE KIT HF1005R HF1005R ﾉｽﾞﾙ KIT 1 NozzleID:503
4 EZA-192-387-7A NOZZLE KIT HF10071 HF10071 ﾉｽﾞﾙ KIT 1 NozzleID:506
5
401-56296 NOZZLE KIT HF12081(C) HF12081(C) ﾉｽﾞﾙ KIT 1 NozzleID:511
EZA-192-408-0A NOZZLE KIT HF12081 HF12081 ﾉｽﾞﾙ KIT 1 NozzleID:507
6 EZA-192-387-9A NOZZLE KIT HF25201 HF25201 ﾉｽﾞﾙ KIT 1 NozzleID:508
7 401-57566 NOZZLE KIT_MF0603R(C) MF0603R(C)ﾉｽﾞﾙ KIT 1 NozzleID:601
8 401-57567 NOZZLR KIT_MF1005R(C) MF1005R(C)ﾉｽﾞﾙ KIT 1 NozzleID:602
9 401-57568 NOZZLE KIT_MF10071(C) MF10071(C)ﾉｽﾞﾙ KIT 1 NozzleID:603
10 401-57569 NOZZLE KIT_MF12081(C) MF12081(C)ﾉｽﾞﾙ KIT 1 NozzleID:604
11 401-57570 NOZZLE KIT_MF60401 MF60401 ﾉｽﾞﾙ KIT 1 NozzleID:609
12 401-57571 NOZZLE KIT_MF00901 MF00901 ﾉｽﾞﾙ KIT 1 NozzleID:610
13 401-57572 NOZZLE KIT_MF6025G MF6025G ﾉｽﾞﾙ KIT 1 NozzleID:619
14 401-57573 NOZZLE KIT_MF4025G MF4025G ﾉｽﾞﾙ KIT 1 NozzleID:620
15 401-57574 NOZZLE KIT_MF0080G MF0080G ﾉｽﾞﾙ KIT 1 NozzleID:621
16 401-57575 NOZZLE KIT_MF7530R MF7530R ﾉｽﾞﾙ KIT 1 NozzleID:611
17 401-57576 NOZZLE KIT_MF6020R MF6020R ﾉｽﾞﾙ KIT 1 NozzleID:617
18 401-57624 NOZZLE KIT_MF40301 MF40301 ﾉｽﾞﾙ KIT 1 NozzleID:608
19 401-57634 NOZZLE KIT_MF25201 MF25201 ﾉｽﾞﾙ KIT 1 NozzleID:606

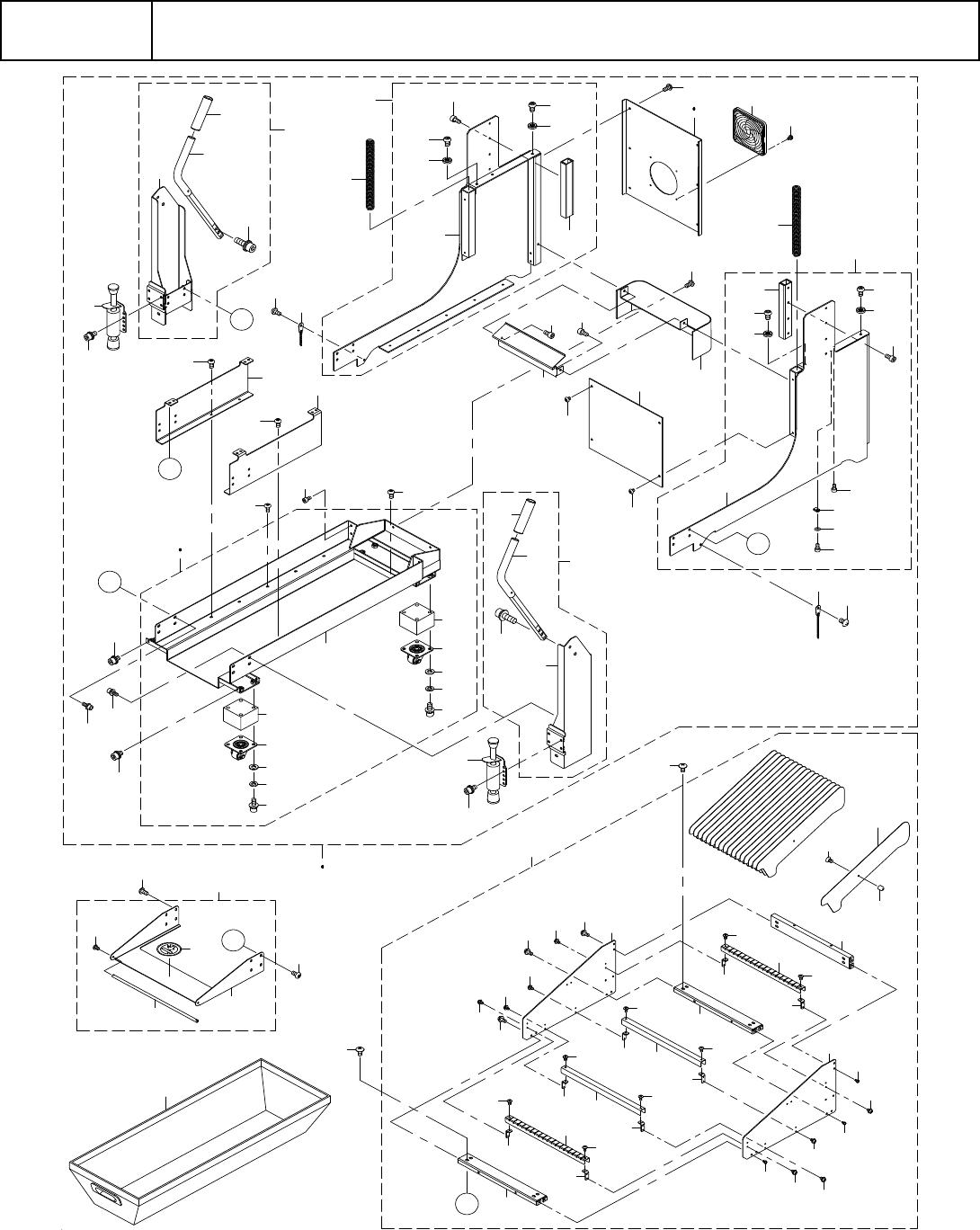

A-153
A39-1
【共通】EF フィーダ用台車本体-1
【COMMON】Trolley unit for EF Feeder - 1
3 4
55
56
57
15
12
13
19
20
21
21
20
27
26
26
27
23
24
28
29
30
30
22
31
33
33
6
35
35
36
36
32
37
38
38
39
18
25
43
43
42
54
44
45
44
45
46
47
46
47
48
48
61
62
60
64
65
65
61
60
62
63
63
59
59
66
67
67
63
60
60
61
63
64
65
60
65
60
67
60
66
62
60
67
61
63
61
61
63
61
61
58
71
71
A
A
76
74
75
77
77
72
73
B
B
C
33
33
34
5
17
78
16
52
14
11
53
C
1 2
50
51
49
69
70
68
6
10
10
9
7
8
7
9
8
40 41
A-154
A39-1
【共通】EF フィーダ用台車本体-1
【COMMON】Trolley unit for EF Feeder - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 401-43572 TROLEY_STAND
ﾄﾛﾘｰｽﾀﾝﾄﾞ
1
2 401-45946 TROLEY_STAND_950
ﾄﾛﾘｰｽﾀﾝﾄﾞ_950
1
950MM 仕様
3 401-43573 STAND_BASE_ASSY ｽﾀﾝﾄﾞﾍﾞｰｽｱｯｼｰ (1)
4 401-45945 STAND_BASE_ASSY_950
ｽﾀﾝﾄﾞﾍﾞｰｽｱｯｼｰ_950
(1)
950MM 仕様
5 401-53358 STAND_BASE
ｽﾀﾝﾄﾞﾍﾞｰｽ
(1)
6 401-43493 CASTER ｷｬｽﾀｰ (4)
7 SL-6082092-TN SCREW M8 L=20
座金付き六角穴ﾎﾞﾙﾄ M8 L=20
(16)
8 WS-0820002-KN SPRING WASHER M8
ﾊﾞﾈｻﾞｶﾞﾈ M8
(16)
950MM 仕様
9 WP-0841601-SC WASHER 8.4X17.4X1.6 ﾋﾗｻﾞｶﾞﾈ ﾐｶﾞｷﾏﾙ M8 (16) 950MM 仕様
10 401-45947 CASTER_SPASER
ｷｬｽﾀｰｽﾍﾟｰｻｰ
(4)
950MM 仕様
11 401-43575 HANDLE_R_ASSY
ﾊﾝﾄﾞﾙ R ｱｯｼｰ
(1)
12 401-62284 HANDLE_BASE_R ﾊﾝﾄﾞﾙﾍﾞｰｽ R (1)
13 401-27991 TROLLEY_HANDLE
ﾄﾛﾘﾊﾝﾄﾞﾙ
(1)
14 E2641-729-000 HANDLE CLIP
ﾊﾝﾄﾞﾙｸﾞﾘｯﾌﾟ
(1)
15 SL-6082592-TN SCREW M8 L=25 座金付き六角穴ﾎﾞﾙﾄ M8 L=25 (3)
16 401-43576 STAND_SIDE_BASE_L_ASSY
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ L ｱｯｼｰ
(1)
17 401-43496 STAND_SIDE_BASE_L
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ L
(1)
18 401-43497 SLIDE_RAIL ｽﾗｲﾄﾞﾚｰﾙ (1)
19 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
20 400-89239 E_TROLLEY_PLATE
E ﾄﾛﾘｰﾌﾟﾚｰﾄ
(2)
21 SM-3061052-TN SCREW M6 L=10 ﾏﾙﾈｼﾞ M6 L=10 (2)
22 401-43577 STAND_SIDE_BASE_R_ASSY
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ R ｱｯｼｰ
(1)
23 401-43498 STAND_SIDE_BASE_R
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ R
(1)
24 401-43497 SLIDE_RAIL ｽﾗｲﾄﾞﾚｰﾙ (1)
25 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
26 400-89239 E_TROLLEY_PLATE
E ﾄﾛﾘｰﾌﾟﾚｰﾄ
(2)
27 SM-3061052-TN SCREW M6 L=10 ﾏﾙﾈｼﾞ M6 L=10 (2)
28 HX-0015000-00 CABLE CLAMP
ｹｰﾌﾞﾙｸﾘｯﾌﾟ
(1)
29 WT-0430002-KN WASHER M4
ﾊﾂｷｻﾞｶﾞﾈ M4
(1)
30 SM-6040802-TN SCREW M4X0.7 L=8 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8 (2)
31 401-43499 REEL_HOLDER_SUPPORT_L
ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ L
(1)
32 401-43500 REEL_HOLDER_SUPPORT_R
ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ R
(1)
33 SM-3051052-TN SCREW M5 L=10 ﾏﾙﾈｼﾞ M5 L=10 (10)
34 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
35 SL-6061692-TN SCREW M6 L=16
座金付き六角穴ﾎﾞﾙﾄ M6 L=16
(8)
36 SL-6061092-TN SCREW M6 L=10 座金付き六角穴ﾎﾞﾙﾄ M6 L=10 (2)
37 401-43501 FRONT_COVER_BOTTOM
ﾌﾛﾝﾄｶﾊﾞｰﾎﾞﾄﾑ
(1)
38 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(2)
39 SM-3051052-TN SCREW M5 L=10 ﾏﾙﾈｼﾞ M5 L=10 (2)
40 401-64481 FRONT_COVER
ﾌﾛﾝﾄｶﾊﾞｰ
(1)
41 401-43502 FRONT_PLATE
ﾌﾛﾝﾄﾌﾟﾚｰﾄ
(1)
42 401-43503 BACK_PLATE ﾊﾞｯｸﾌﾟﾚｰﾄ (1)
43 SM-3040552-TN SCREW M4 L=5
丸ねじ M4 L=5
(4)
44 E2711-721-000 TROLLEY STOPPER
ﾄﾛﾘｰｽﾄｯﾊﾟｰ
(2)
45 SL-6061292-TN SCREW M6 L=12 座金付き六角穴ﾎﾞﾙﾄ M6 L=12 (4)
46 401-43504 GROUND_CHAIN
ｸﾞﾗｳﾝﾄﾞﾁｪｰﾝ
(2)
47 SM-3061252-TN SCREW M6 L=12
ﾏﾙﾈｼﾞ M6 L=12
(2)
48 401-43505 SUPPORT_SP ｻﾎﾟｰﾄｽﾌﾟﾘﾝｸﾞ (2)
49 401-64219 TAPE_GUARD_F_S
ﾃｰﾌﾟｶﾞｰﾄﾞ F_S
(1)
50 HM-0010100-1B FAN MOTOR
ﾌｨﾙﾀｰ
(1)
51 SL-4040881-SC SCREW M4 L=8 ｻﾞｶﾞﾈﾂｷ ﾅﾍﾞｺﾈｼﾞ M4 L=8 (4)
52 SM-3051052-TN SCREW M5 L=10
ﾏﾙﾈｼﾞ M5 L=10
(6)
53 401-43574 HANDLE_L_ASSY
ﾊﾝﾄﾞﾙ L ｱｯｼｰ
(1)
54 401-62283 HANDLE_BASE_L ﾊﾝﾄﾞﾙﾍﾞｰｽ L (1)
