A-14 A5-1 【 RX-7 】架台 ASSY-2 【 RX-7 】 Base frame assy - 2 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ4-138-825-02 PLUG (M10 X1.5), SCREW ｽｸﾘﾕ- ﾌﾟﾗｸﾞ (M10X1.5) 4 2 EZ4-294-534-01 CONTRO LLER (…
A-13
A5-1
【RX-7】架台 ASSY-2
【RX-7】Base frame assy - 2
A-14
A5-1
【RX-7】架台 ASSY-2
【RX-7】Base frame assy - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-138-825-02 PLUG (M10X1.5), SCREW ｽｸﾘﾕ- ﾌﾟﾗｸﾞ (M10X1.5) 4
2 EZ4-294-534-01 CONTROLLER (AS2002F-06) SPEED ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ (AS2002F-06) 4
3 EZ4-447-063-21 UNION (KQ2L06-01AS), ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L06-01AS) 4
4 EZ4-454-729-01 CYLINDER(CXSM32-100), DUAL ROD ﾃﾞﾕｱﾙ ﾛﾂﾄﾞ ｼﾘﾝﾀﾞ (CXSM32-100) 4
5 EZ4-454-743-01 CONTROLLER (AS2201F-01-06SA) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ (AS2201F-01-06SA 4
6 EZ4-454-745-02 LM GUIDE (SHS15V1UU) LM ｶﾞｲﾄﾞ (SHS15V1UU) 8
7 EZ4-454-941-01 RAIL GUIDE 1 (L) ﾚ-ﾙ ｶﾞｲﾄﾞ 1 (L) 2
8 EZ4-454-941-11 RAIL GUIDE 1 (R) ﾚ-ﾙ ｶﾞｲﾄﾞ 1 (R) 2
9 EZ4-454-942-02 RAIL GUIDE 2 ﾚ-ﾙ ｶﾞｲﾄﾞ 2 4
10 EZ4-454-942-12 RAIL GUIDE 2 ﾚ-ﾙ ｶﾞｲﾄﾞ 2 4
11 EZ4-454-943-01 BLOCK, TABLE POSITIONING ﾃ-ﾌﾞﾙ ｲﾁｷﾞﾒ ﾌﾞﾛﾂｸ 4
12 EZ4-454-944-02 SIDE PLATE (R) ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (R) 1
13 EZ4-454-944-12 SIDE PLATE (L) ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (L) 1
14 EZ4-454-945-01 CYLINDER PLATE ｼﾘﾝﾀﾞ- ﾌﾟﾚ-ﾄ 4
15 EZ4-458-991-01 COLLAR (8-6-3), Y AXIS ｶﾗ- (8-6-3), Y ｼﾞｸ 4
16 EZ4-705-547-11 PIN, PARALLEL (A4X10) ﾍｲｺｳ ﾋﾟﾝ (A4X10) 12
17 EZ4-719-971-01 NIPPLE, JOINT (KQ2N06-99) ﾂｷﾞﾃ ﾆﾂﾌﾟﾙ (KQ2N06-99) 4
18 EZ7-683-408-04 BOLT,HEXAGON SOCKET 3X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X16 8
19 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 32
20 EZ7-683-420-04 BOLT,HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 24
21 EZ7-683-423-04 BOLT,HEXAGON SOCKET 4X16 6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16 48
22 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10 4
23 EZ7-683-457-04 SOCKET 6X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X20 12
24 EZ7-683-465-04 BOLT,HEXAGON SOCKET 6X40 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X40 8
25 EZ7-683-472-04 BOLT,HEXAGON SOCKET 8X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 8X16 4
26 EZA-192-115-8A SENSOR (B) ASSY, FLATCAR RISE ﾀﾞｲｼﾔ ｼﾞﾖｳｼﾖｳ ｾﾝｻ (B) ASSY 1
27 EZ4-463-738-01 BRACKET R, BOTTOM ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ﾎﾞﾄﾑ 2
28 EZ4-463-739-01 CONNECTOR BRACKET R, SPACER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ｽﾍﾟ-ｻ 2
29 EZA-1944-226-B TROLLEY CONTACT(M)A MOUNT ﾄﾛﾘｰ CONTACT(M)A MOUNT 2
30 EZA-1944-227-B TROLLEY CONTACT(M)B MOUNT ﾄﾛﾘｰ CONTACT(M)B MOUNT 2
31 EZ4-472-320-01 CONNECTOR COVER ｺﾈｸﾀ- ｶﾊﾞ- 2
32 EZ2-580-594-01 SCREW, +PSW M3X12 ﾈｼﾞ +PSW M3X12 8
33 EZ2-580-600-01 SCREW, +PSW M4X8 SCREW, +PSW M4X8 8
34 EZ3-719-601-61 SCREW (B2X5), TAPPING 0 ﾊﾞﾝ P3 ｼﾕ ﾀﾂﾋﾟﾝ B2X5 16
35 EZ7-683-403-04 BOLT,HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 8
36 EZ4-447-109-11 UNION (KQ2L06-M5A), ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L06-M5A) 2
37 EZ7-688-004-11 W 4, MIDDLE W 4, MIDDLE 12
38 EZ4-455-626-02 POSITIONING BUSH (MASTR) ｲﾁｷﾞﾒ ﾌﾞﾂｼﾕ (ｷｼﾞﾕﾝ) 4
39 EZ4-455-627-01 POSITIONING BUSH (SLAVE) ｲﾁｷﾞﾒ ﾌﾞﾂｼﾕ (ｼﾞﾕｳｿﾞｸ) 4
40 EZ4-447-250-11 STRAIGHT (KQ2H06-08A) ｲｹｲ ｽﾄﾚ-ﾄ (KQ2H06-08A) 2
41 EZ4-455-638-01 CONNECTOR BRACKET UPPER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ｱﾂﾊﾟ- 2
42 EZ4-455-639-01 CONNECTOR BRACKET BOTTOM ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ﾎﾞﾄﾑ 2
43 EZ4-455-640-01 CONNECTOR BRACKET SPACER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ ｽﾍﾟ-ｻ 2
44 EZ4-463-737-01 CONNECTOR BRACKET R, UPPER ｺﾈｸﾀ- ﾌﾞﾗｹﾂﾄ R ｱﾂﾊﾟ- 2

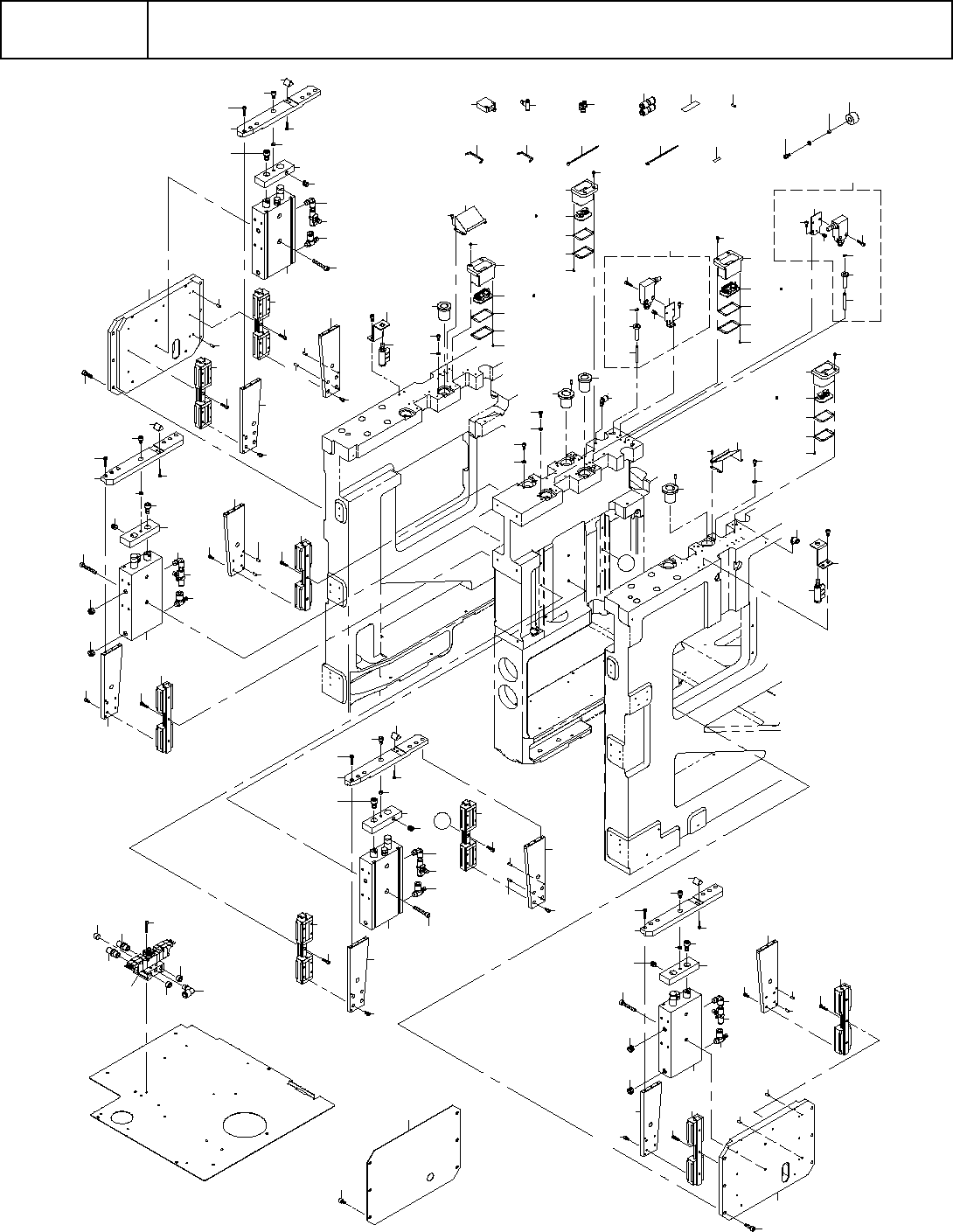

A-15
A5-2
【RX-7R】架台 ASSY-2
【RX-7R】Base frame assy - 2
１９
１８
２７
１２
１２
２７
２６
１５
１６
２５
２５
２３
２３
２９
２４
２１
９
２０
６
１１
８
７
３
２７
１３
２８
２７
２７
１２
１２
１６
１５
２５
２５
２３
２３
２３
２３
２８
２１
２９
２４
２７
１
７
２０
９
１４
２６
６
１１
１１
２５
１５
１２
１２
２７
２７
６
１４
９
２０
１７
２７
２４
２９
２１
２８
２３
２３
２５
１６
Ａ
Ａ
１３
３
７
８
１１
６
２０
９
２１
２４
２９
２３
２３
２５
２５
１５
２７
１２
１２
２７
２８
３２
３１
３１
３２
５７
４１
６６
５１
４２
７５
５３
４３
４３
５３
４２ ７６
５１
４１
４１
４３
５６
５５
４２ ７７
５４
５４
４２ ７７
５５
５６
４３
４１
６６
８
７
３
８
７
３
４
４
４
４
５
５
５
５
１７
１７
２３
２３
２７
３０
３５
３７
３４
２
２
３３
３３
２
３６
３８
３９
４５
４５
４６
４９
４９
５０
５０
５２
５２
５７
６０
６１ ６２
６４
８４
８１
８２
８３
８５
８６
８０
８１
８３
８２
８０
８５
８４
８６
７９
７９
５９５８
７８
４０
１
１
１６
１
１
４４
４７
７２
