C-17 C5 【 RX-7R 】搬送部周辺配 管図 【 RX-7R 】 Conveyor pipe diagram ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ1-492-216-12 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 1) 1 2 EZ1-492-216-22 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝ…
C-16
C-17
C5

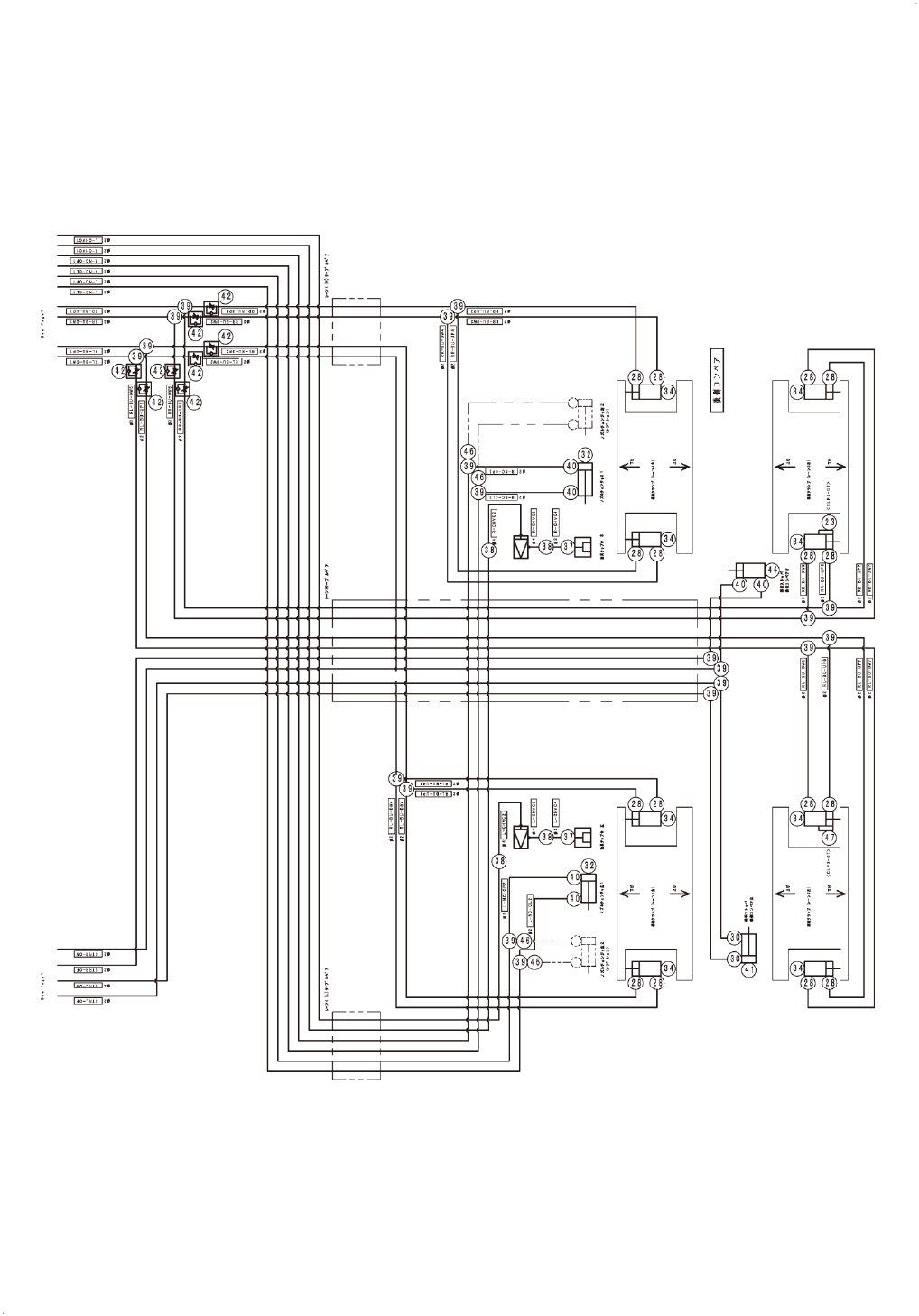

【RX-7R】搬送部周辺配管図
【RX-7R】Conveyor pipe diagram
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-216-12 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 1) 1
2 EZ1-492-216-22 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 2) 1
3 PJ-3050800-03 T-JOINT D=8 ﾁｰｽﾞ φ8 1
4 402-03380 PLUG (KJP-02) ﾌﾟﾗｸﾞ (KJP-02) 4
5 402-07022 SOLENOID VALVE ASSY_SINGLE ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY (ｼﾝｸﾞﾙ) 1
6 402-07028 SOLENOID VALVE(ST) ASSY_SINGLE ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ(ST) ASSY (ｼﾝｸﾞﾙ) 1
7 EZ4-447-052-11 UNION (KQ2H02-M3G) HALF ﾊ-ﾌ ﾕﾆｵﾝ (KQ2H02-M3G) 16
8 PJ-3040851-01 ELBOW UNION ｴﾙﾎﾞﾕﾆｵﾝ 2
9 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ (M-3ALU-2) 4
10 EZ4-453-569-01 PLUG (CYP025-08B29449) ﾌﾟﾗｸﾞ (CYP025-08B29449) 6
11 EZ4-453-817-01 CYLINDER (SMG-L-10-10) ｼﾘﾝﾀﾞ (SMG-L-10-10) 2
12 EZ4-457-146-31 CONTROLLER (AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ-(AS121 16
13 EZ4-454-500-01 CYLINDER (CDUJB8-11-DCP6468P) ｼﾘﾝﾀﾞ (CDUJB8-11-DCP6468P) 8
14 401-58139 VACUUM (VSU-H05-44S) ﾊﾞｷｭｰﾑ (VSU-H05-44S) 2
15 EZ4-454-545-01 SILENCER (SLW-6S) ｻｲﾚﾝｻ (SLW-6S) 4
16 EZ4-455-731-01 UNION (KJH02-M3) HALF ﾊ-ﾌ ﾕﾆｵﾝ (KJH02-M3) 2
17 EZ4-455-732-01 STRAIGHT (KJH02-04) ｲｹｲ ｽﾄﾚ-ﾄ (KJH02-04) 4
18 EZ4-455-733-01 WYE (KJU02-00) UNION ﾕﾆｵﾝ ﾜｲ (KJU02-00) 16
19 EZ4-455-734-01 UNION (KJL02-M5) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KJL02-M5) 4
20 401-61132 CYLINDER(CDUJB8-15D-M9NS) ｼﾘﾝﾀﾞ (CDUJB8-15D） 2
21 PC-0122010-00 SPEED CONTROLLER ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ- 8
22 401-61137 STRAIGHT(KQ2H02-00A) ｽﾄﾚｰﾄ (KQ2H02-00A) 4
23 EZ1-492-216-22 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 2) 1
24 EZ1-492-216-32 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 3) 1
25 EZ1-492-216-42 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 4) 1
26 EZ1-492-217-14 SOLENOID VALVE ASSY ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY 1
27 401-61456 SOLENOID VALVE ASSY(ST) ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY(ST) 1
28 EZ4-447-052-11 UNION (KQ2H02-M3G) HALF ﾊ-ﾌ ﾕﾆｵﾝ (KQ2H02-M3G) 32
29 PJ-3040851-01 ELBOW UNION ｴﾙﾎﾞﾕﾆｵﾝ 2
30 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ (M-3ALU-2) 4
31 EZ4-453-569-01 PLUG (CYP025-08B29449) ﾌﾟﾗｸﾞ (CYP025-08B29449) 6
32 EZ4-453-817-01 CYLINDER (SMG-L-10-10) ｼﾘﾝﾀﾞ (SMG-L-10-10) 2
33 EZ4-457-146-31 CONTROLLER (AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ- (AS1211F-M5-02A) 24
34 EZ4-454-500-01 CYLINDER (CDUJB8-11-DCP6468P) ｼﾘﾝﾀﾞ (CDUJB8-11-DCP6468P) 16
35 401-58139 VACUUM (VSU-H05-44S) ﾊﾞｷｭｰﾑ (VSU-H05-44S) 2
36 EZ4-454-545-01 SILENCER (SLW-6S) ｻｲﾚﾝｻ (SLW-6S) 4
37 EZ4-455-731-01 UNION (KJH02-M3) HALF ﾊ-ﾌ ﾕﾆｵﾝ (KJH02-M3) 2
38 EZ4-455-732-01 STRAIGHT (KJH02-04) ｲｹｲ ｽﾄﾚ-ﾄ (KJH02-04) 4
39 EZ4-455-733-01 WYE (KJU02-00) UNION ﾕﾆｵﾝ ﾜｲ (KJU02-00) 28
40 EZ4-455-734-01 UNION (KJL02-M5) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KJL02-M5) 8
41 401-61132 CYLINDER(CDUJB8-15D-M9NS) ｼﾘﾝﾀﾞ (CDUJB8-15D） 2
42 PC-0122010-00 SPEED CONTROLLER ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ- 16
43 401-61137 STRAIGHT(KQ2H02-00A) ｽﾄﾚｰﾄ (KQ2H02-00A) 8
44 402-02234 CYLINDER (BDAS10X25) ｼﾘﾝﾀﾞ (BDAS10X25) 2
45 PJ-3050800-03 T-JOINT D=8 ﾁｰｽﾞ φ8 1
46 402-03380 PLUG (KJP-02) ﾌﾟﾗｸﾞ (KJP-02) 4
47 EZ1-492-216-12 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 1) 1
