A-23 A7-1 【 RX-7 】架台 ASSY-4 【 RX-7 】 Base frame assy - 4 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ4-455-243-12 BRACKET (XA), CABLE (R) ｹ-ﾌﾞﾙ ﾌﾞﾗｹｯﾄ (XA) (R) 1 2 EZ4-455-244-01 SUPPORT PLA …

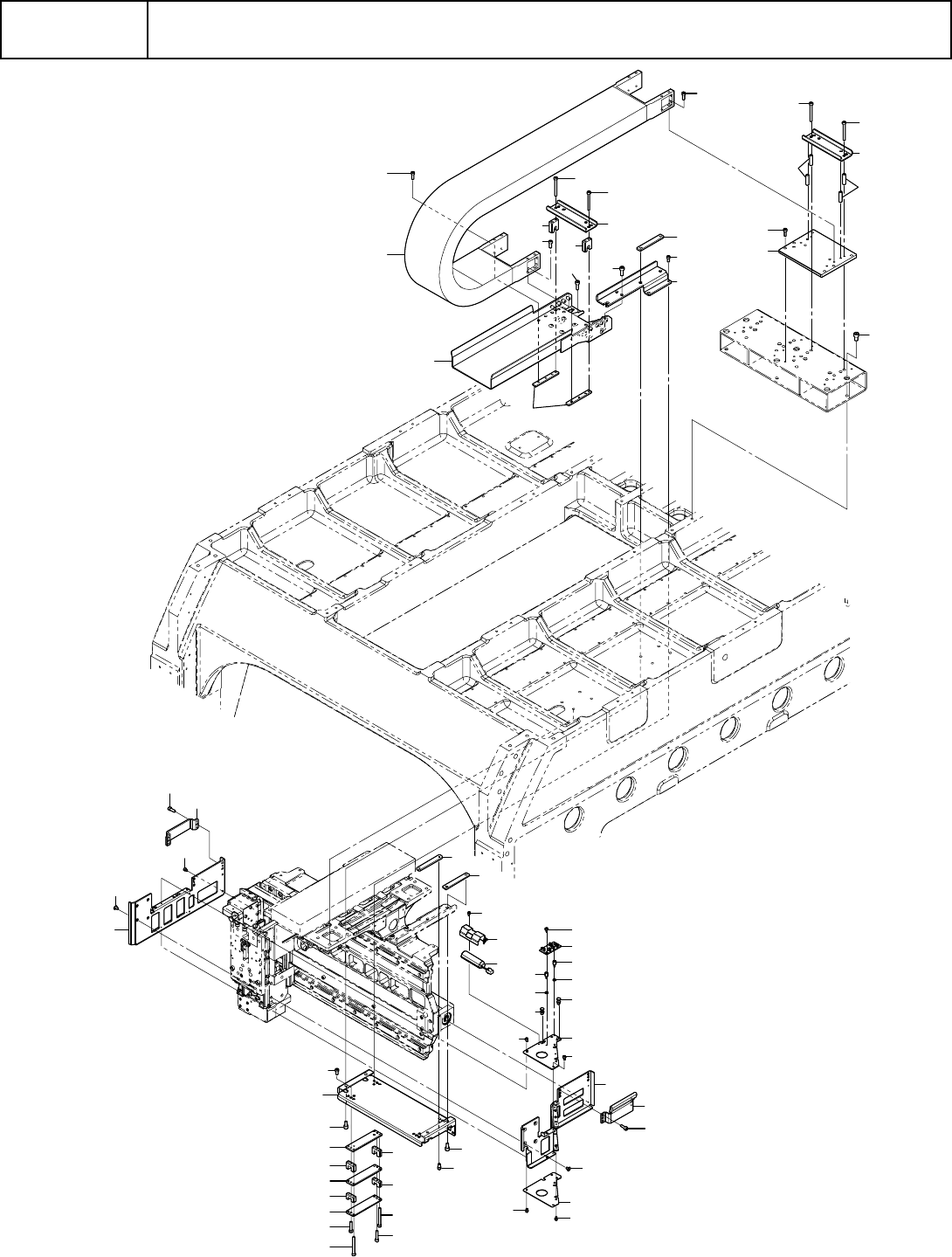

A-22
A7-1
【RX-7】架台 ASSY-4
【RX-7】Base frame assy - 4
24
12
7
17
24
38
26
26
20
28
23
28
18
3
38
37
8
39
37
39
36
40
20
24
8
6
22
21
13
4
3
32
35
30
33
34
31
31
19
1
5
24
21
2
22
22
27
23
9
23
27
14
16
15
26
25
16
10
15
11
25
26
22
22
34
33
35
29
A-23
A7-1
【RX-7】架台 ASSY-4
【RX-7】Base frame assy - 4
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ4-455-243-12 BRACKET (XA), CABLE (R) ｹ-ﾌﾞﾙ ﾌﾞﾗｹｯﾄ (XA) (R) 1
2 EZ4-455-244-01 SUPPORT PLATE (X) ｻﾎﾟ-ﾄﾌﾟﾚ-ﾄ (X) 1
3 EZ4-455-245-01 NUT PLATE (M5) ｲﾀ ﾅｯﾄ (M5) 2
4 EZ4-455-245-11 NUT PLATE (M4) ｲﾀ ﾅｯﾄ (M4) 1
5 EZ4-455-246-01 CLAMP (LH), CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ LH 1
6 EZ4-455-247-01 CLAMP (RH), CABLE ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ RH 1
7 EZ4-455-462-01 BRACKET, CABLE BARE ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹｯﾄ 1
8 EZ4-455-463-01 CABLE RETAINER ｹ-ﾌﾞﾙ ｵｻｴ 2
9 EZ4-455-464-03 CABLE GUIDE ｹ-ﾌﾞﾙ ｶﾞｲﾄﾞ 1
10 EZ4-455-465-01 CLAMP PLATE (S) ｸﾗﾝﾌﾟ ﾌﾟﾚ-ﾄ (S) 1
11 EZ4-455-465-11 CLAMP PLATE (H) ｸﾗﾝﾌﾟ ﾌﾟﾚ-ﾄ (H) 1
12 EZ4-455-691-01 BARE (TKR20H28W80R95), CABLE ｹ-ﾌﾞﾙ ﾍﾞｱ (TKR20H28W80R95) 1
13 EZ4-455-721-12 BRACKET (XB), CABLE (R) ｹ-ﾌﾞﾙ ﾌﾞﾗｹｯﾄ (XB) (R) 1
14 EZ4-458-968-01 PLATE, CLAMP BASE ｸﾗﾝﾌﾟ ﾍﾞ-ｽ ﾌﾟﾚ-ﾄ 1
15 EZ4-459-118-01 SPACER (S), CLAMP ｸﾗﾝﾌﾟ ｽﾍﾟ-ｻ (S) 2
16 EZ4-459-118-11 SPACER (L), CLAMP ｸﾗﾝﾌﾟ ｽﾍﾟ-ｻ (L) 2
17 EZ4-464-111-02 PLATE, CABLE RETAINER NUT ｹ-ﾌﾞﾙ ｵｻｴ ﾅｯﾄ ﾌﾟﾚ-ﾄ 2
18 EZ4-466-199-01 ARM , CABLE GUIDE ( ) ｹ-ﾌﾞﾙ ｶﾞｲﾄﾞ ｱ-ﾑ (Ｌ) 1
19 EZ4-471-563-11 SUPPORT PLATE (X, R) ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (X, R) 1
20 EZ4-472-239-01 SPACER BLK, CABLE RETAINER ｹ-ﾌﾞﾙ ｵｻｴ ｽﾍﾟ-ｻ BLK 2
21 EZ7-682-260-04 SCREW +K 4X6 +K 4X6 8
22 EZ7-683-401-04 BOLT,HEXAGON SOCKET 3X4 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4 16
23 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 6
24 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 10
25 EZ7-683-425-04 BOLT,HEXAGON SOCKET 4X20 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X20 2
26 EZ7-683-428-04 BOLT, HEXAGON SOCKET 4X40 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X40 8
27 EZ7-683-435-04 BOLT,HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 4
28 EZ7-683-437-04 BOLT,HEXAGON SOCKET 5X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14 5
29 EZ1-492-202-12 BATTERY ASSY ﾊﾞﾂﾃﾘ- ASSY 1
30 EZ1-895-367-21 BOARD, BACKUP MONITORING ﾊﾞﾂｸｱﾂﾌﾟ ﾓﾆﾀ- ﾎﾞ-ﾄﾞ (Z) 1
31 EZ4-056-942-11 SPACER, MINIATURE CARD ﾐﾆ ｶ-ﾄﾞ ｽﾍﾟ-ｻ- 2
32 EZ4-468-642-01 BATTERY BOX (Z, L) ﾊﾞﾂﾃﾘ- BOX (Z, L) 1
33 EZ4-705-584-01 SPACER (SQ-7) ｽﾍﾟ-ｻ (SQ-7) 2
34 EZ7-623-208-22 SW 3,TYPE 2 SW 3,TYPE 2 2
35 EZ7-683-401-04 BOLT,HEXAGON SOCKET 3X4 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4 4
36 EZ4-459-119-01 BASE, CABLE CLAMP ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ ﾍﾞ-ｽ 1
37 EZ4-472-252-01 COLLAR, CABLE RETAINER SPACER ｹ-ﾌﾞﾙ ｵｻｴ ｽﾍﾟ-ｻ ｶﾗ- 4
38 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 10
39 EZ7-683-428-04 BOLT, HEXAGON SOCKET 4X40 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X40 4
40 EZ7-683-452-04 BOLT,HEXAGON SOCKET 6X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10 3
A-24
A7-2
【RX-7R】架台 ASSY-4
【RX-7R】Base frame assy - 4
４
５
５
６
７
８
１０
１３
１４
３
２０
２１
２１
９
２２
２４
２８
３１
２９
３０
３３
３３
３４
３４
３４
Ｂ
Ａ
Ａ
Ｂ
３５
３５
３５
３６
３６
３８
３９
４０
４１
４２
１５
１９
２
１
１７
１８
１８
３８
３８
１７
１２
１１
１６
４６
４３
４９
４８
４７
４４
４５
４５
５１
５０
