A-65 A20-2 【 RX-7R 】デュアル搬送部ユニット - 幅調整 1 【 RX-7R 】 Dual Conveyor unit - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 402-00904 PLA TE(1)_RAIL SUPPOR T ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(1) 2 2 402-00905 PLA TE(2)_R…

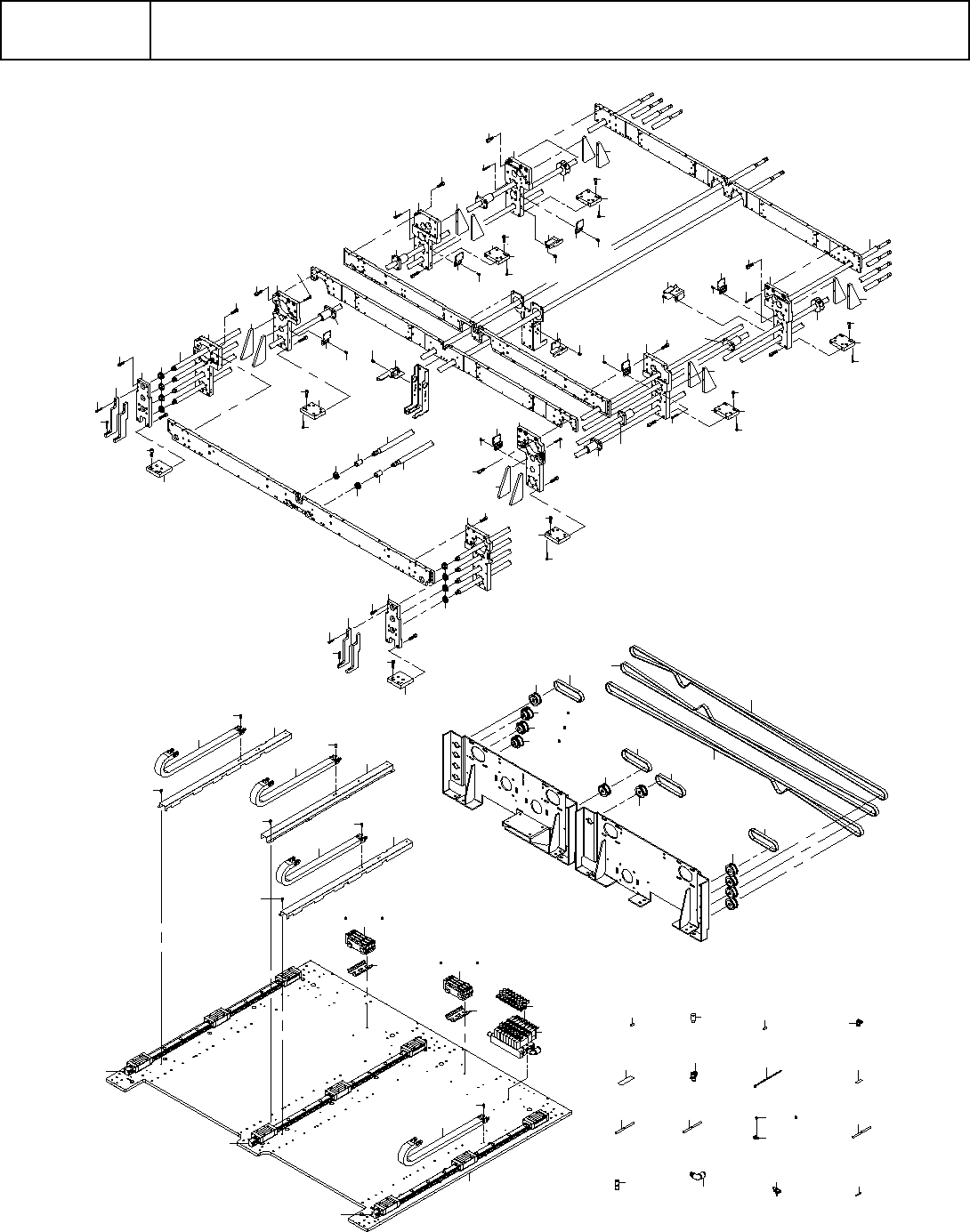

A-64
A20-2
【RX-7R】デュアル搬送部ユニット-幅調整 1
【RX-7R】Dual Conveyor unit - 1
３６
３５
３０
３３
１
１
２
３
５
５
６
１３
１３
１３
１３
１８ ４３
１８
４３
１８
４３
４
４
３
６８
６
７
８
１４
１７
１６
１５
２１
２２
２３
２３
２３
２３
２３
２３
２４
２６
２６
２６
２６
２６
２６
２６
２６
２６
２６
２７
２７
２８
２９
３１
５９
２８
１０ １１ ２０
１０ １１ ２０
３２
３２
３８
３７
３９ ４０
４２
４２
４２
４１
４１
４１
５０
５０
５０
２５
５２
５３
５４
９
９
５５
５７
５７
５７
５７
５７
５７
５６
５６
９
９
５５
５５
５８
２８
４１
６０
６０
６０
６１
６２
６２
２
６２
６２
６３
６３
７
６４
６４
６４
６４
６４
６４
６４
６８
６４
６４
６４
６８
６８
６５
６５
６５
６５
６５
６６
６６
４７
６２
６７
６９
５５
５８
６２
１９
１９
１９
５０
６５
３
３
６６
６６
６６
６６
６６
６６
６６
６６
４７
４７
４７
４７
４７
４７
４７
７０
A-65
A20-2
【RX-7R】デュアル搬送部ユニット-幅調整 1
【RX-7R】Dual Conveyor unit - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 402-00904 PLATE(1)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(1) 2
2 402-00905 PLATE(2)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(2) 2
3 402-00907 BASE(1)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾍﾞｰｽ(1) 4
4 402-00908 BASE(2)_RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾍﾞｰｽ(2) 2
5 402-01173 PLATE(3)RAIL SUPPORT ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(3) 2
6 402-01174 PLATE(4)RAIL SUPPORT
ﾚｰﾙｻﾎﾟｰﾄﾌﾟﾚｰﾄ(4)
2
7 402-01175 RAIL SUPPORT HOLDER(2) ﾚｰﾙｻﾎﾟｰﾄﾎﾙﾀﾞｰ(2) 2
8 PH-0400105-S0 PARALLEL PIN TYPE B 4X10 平行ﾋﾟﾝ B 種 4X10 12
9 SB-1080002-00 BEARING ころがり軸受 10
10 EZ1-492-208-11 AMPLIFIER SENSOR (FX-501) ｾﾝｻ ｱﾝﾌﾟ (FX-501) 4
11 EZ1-492-213-11 AMPLIFIER SENSOR (FX-502) ｾﾝｻ ｱﾝﾌﾟ (FX-502) 2
12 EZ1-492-251-11 SENSOR ASSY
ｾﾝｻ ASSY (ﾊﾞﾂｸ ｱﾂﾌﾟ ﾋﾟﾝ 4)
1
13 EZ2-177-403-01 BELT TIMING (234-3GT-9) ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (234-3GT-9) 4
14 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) 2
15 EZ4-431-981-31 PIN (DIA. 4) PARALLEL ﾍｲｺｳ ﾋﾟﾝ ﾌｱｲ 4 ｼﾘ-ｽﾞ 4
16 EZ4-447-063-41 UNION (KQ2L08-01AS) ELBOW ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L08-01AS) 1
17 EZ4-452-347-01 LABEL (PLAIN) SERIAL NO.(1446) ｼﾘｱﾙ NO. ﾗﾍﾞﾙ (ﾑｼﾞ) (1446) 1
18 EZ4-453-826-01 PULLEY (P1110-015) (E) TIMING
ﾀｲﾐﾝｸﾞ ﾌﾟ-ﾘ (P1110-015) E
3
19 EZ4-453-828-21 BELT (1947-3GT-9) TIMING ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ (1947-3GT-9) 3
20 EZ4-453-835-01 PLATE (MS-DIN-E) END ｴﾝﾄﾞ ﾌﾟﾚ-ﾄ (MS-DIN-E) 2
21 402-01116 CABLEVEYOR BRACKET(4R) ｹｰﾌﾞﾙﾍﾞｱﾌﾞﾗｹｯﾄ(4R) 1
22 402-01127 CABLEVEYOR BRACKET(3) ｹｰﾌﾞﾙﾍﾞｱｰﾌﾞﾗｹｯﾄ(3) 1
23 402-00993 BEAM SENSOR BRACKET ﾋﾞｰﾑｾﾝｻｰﾌﾞﾗｹｯﾄ 6
24 402-01126 CABLEVEYOR BRACKET(2)
ｹｰﾌﾞﾙﾍﾞｱｰﾌﾞﾗｹｯﾄ(2)
1
25 402-01117 CABLEVEYOR BRACKET(4L) ｹｰﾌﾞﾙﾍﾞｱﾌﾞﾗｹｯﾄ(4L) 1
26 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 20
27 EZ4-454-371-01 BRACKET (L) DUCT ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ L 2
28 EZ4-454-503-01 CABLE BARE ｹ-ﾌﾞﾙ ﾍﾞｱ 3
29 EZ4-455-708-01 BRACKET (C) DUCT ﾀﾞｸﾄ ﾌﾞﾗｹﾂﾄ (C) 1
30 EZ4-455-733-01 WYE (KJU02-00) UNION
ﾕﾆｵﾝ ﾜｲ (KJU02-00)
12
31 EZ4-457-146-31 CONTROLLER (AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A) 16
32 EZ4-488-445-01 RAIL DIN (60) DIN ﾚ-ﾙ (60) 2
33 EZ4-701-529-01 TIE MOUNT (MB1) ﾀｲﾏｳﾝﾄ (MB1) 39
34 EZ4-702-261-02 BOLT HEXAGON SOCKET (M3X6) ﾛﾂｶｸ ｱﾅﾂｷ ｻﾗ ﾎﾞﾙﾄ (M3X6) 39
35 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) 167
36 EZ4-722-956-01 LABEL(SILVER) BLANK
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10)
28
37 EZ7-630-003-47 TUBE(TU0425B-100-X3) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0425B-100-X3) 0.12
38 EZ7-630-003-55 TUBE (TU0212B-20) 2MMX20M BLK ﾁﾕ-ﾌﾞ(TU0212B-20) 2MMX20M BLK 17.31
39 EZ7-682-247-09 SCREW +K 3X6 SCREW +K 3X6 9
40 EZ7-682-249-09 SCREW +K 3X10 ﾈｼﾞ +K 3X10 30
41 EZ7-683-401-04 BOLT HEXAGON SOCKET 3X4 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4 34
42 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
65
43 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 14
44 EZ7-683-405-04 BOLT HEXAGON SOCKET 3X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10 2
45 EZ7-683-419-04 BOLT HEXAGON SOCKET 4X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8 14
46 EZ7-683-420-04 BOLT HEXAGON SOCKET 4X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10 40
47 EZ7-683-422-04 BOLT HEXAGON SOCKET 4X14 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X14 48
48 EZ7-683-423-04 BOLT HEXAGON SOCKET 4X16
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ
33
49 EZ7-683-427-04 BOLT HEXAGON SOCKET 4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25 4
50 401-52119 PULLEY (F) TIMING ﾀｲﾐﾝｸﾞ ﾌﾟｰﾘ (F) 7
A-66
A20-2
【RX-7R】デュアル搬送部ユニット-幅調整 1
【RX-7R】Dual Conveyor unit - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 EZ7-683-435-04 BOLT HEXAGON SOCKET 5X10 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X10 68
52 BT-0200121-EB URETHANE TUBE BLACK 2X1.2 ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 黒 2X1.2 12
53 401-61137 STRAIGHT(KQ2H02-00A) ｽﾄﾚｰﾄ (KQ2H02-00A) 8
54 PJ-3040851-01 ELBOW UNION 8XPT1/8 ｴﾙﾎﾞ ﾕﾆｵﾝ 8XPT1/8 1
55 401-90503 DRIVE_SHAFT ｸﾄﾞｳｼﾞｸ 4
56 401-94930 SPACE COLLAR_BEARING
ﾍﾞｱﾘﾝｸﾞﾖｳｽﾍﾟｰｻｰ
2
57 401-90407 SCREW_SHAFT ｽｸﾘｭｰｼｬﾌﾄ 6
58 402-01640 SEPARATE COLLAR(SCSS1215C) ｾﾊﾟﾚｰﾄｶﾗｰ(SCSS1215C) 2
59 402-08331 CABLEVEYOR_DUAL C/V LANE2 ﾃﾞｭｱﾙ C/V LANE2 ﾖｳｹｰﾌﾞﾙﾍﾞﾔ 1
60 EZ4-454-502-01 GUIDE (MHS15C3R640S2ET213) ｶﾞｲﾄﾞ (MHS15C3R640S2ET213) 3
61 402-09683 CONVEYOR BASE(2) ｺﾝﾍﾞｱｰﾍﾞｰｽ(2) 1
62 402-08612 RAIL SUPPORT RIB(1)
ﾚｰﾙｻﾎﾟｰﾄﾘﾌﾞ(1)
12
63 402-08613 RAIL SUPPORT RIB(2) ﾚｰﾙｻﾎﾟｰﾄﾘﾌﾞ(2) 4
64 SM-6031602-TN SCREW M3 L=16 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3 L=16 40
65 SM-6032002-TN SCREW M3X0.5 L=20 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X0.5 L=20 24
66 SM-6051602-TN SCREW ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ 56
67 PC-0122010-00 SPEED CONTROLLER ｽﾋﾟｰﾄﾞ ｺﾝﾄﾛｰﾗ 8
68 402-12031 BASE(3)_RAIL SUPPORT
ﾚｰﾙｻﾎﾟｰﾄﾍﾞｰｽ(3)
2
69 402-03380 PLUG(KJP-02) ﾌﾟﾗｸﾞ(KJP-02) 4
70 EZ1-492-217-14 SOLENOID VALVE ASSY ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY 1
