PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 空圧制 御部(ﾒｲﾝﾎ ﾞﾃﾞｨ部) PNEUMA TIC SYSTEM SEC T.(MAIN BODY SECT.) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610130573AA PNEUMATIC UNIT KQ2U10-00A 2 N001 N510066715AA FITTING KQ2U1…

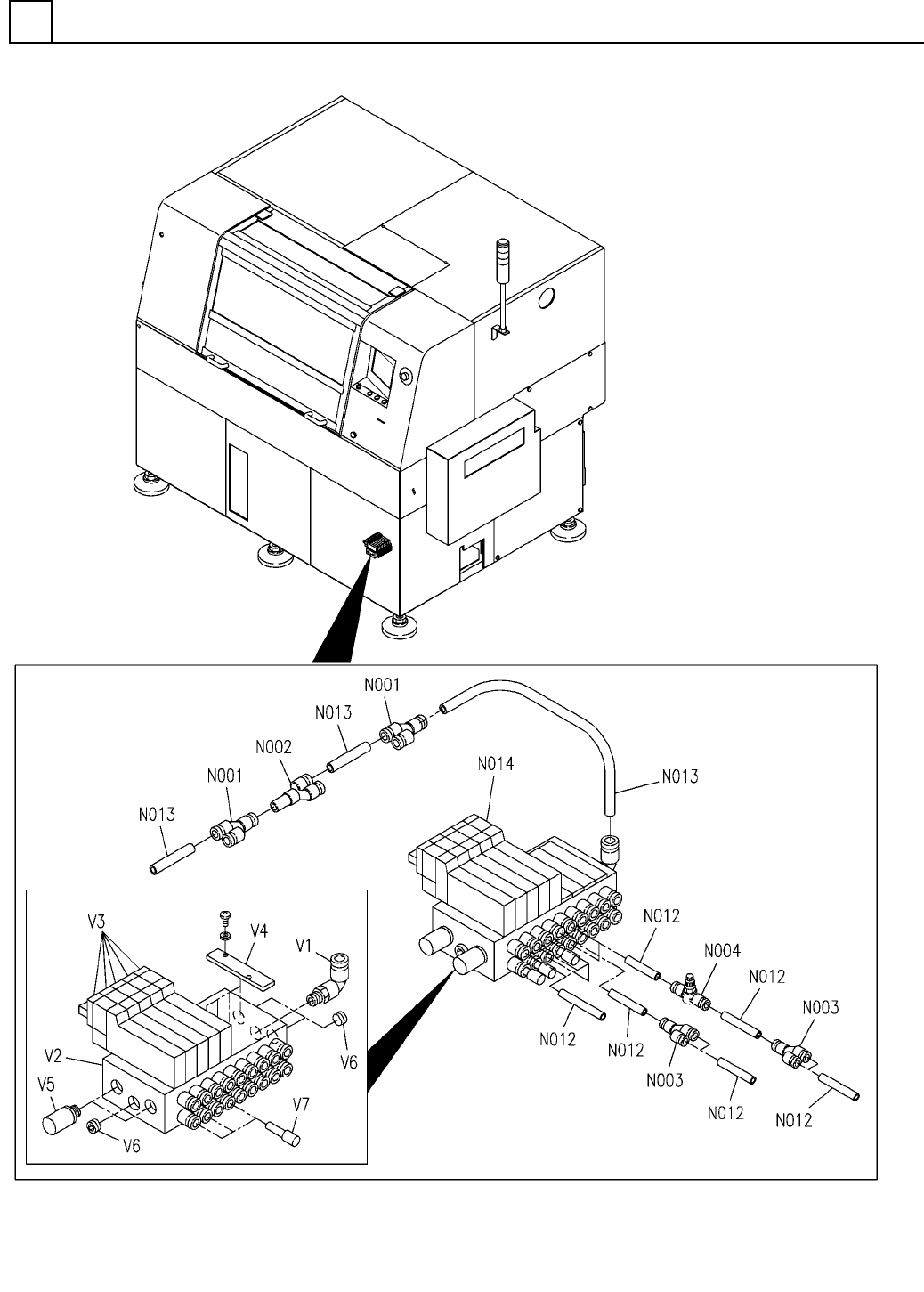

空圧制御部(ﾒｲﾝﾎﾞﾃﾞｨ部)
PNEUMATIC SYSTEM SECT.(MAIN BODY SECT.)
1
FN610130573AA_06
P9
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
1
空圧制御部(ﾒｲﾝﾎﾞﾃﾞｨ部)
PNEUMATIC SYSTEM SECT.(MAIN BODY SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610130573AA
PNEUMATIC UNIT
KQ2U10-00A
2
N001
N510066715AA
FITTING
KQ2U10-99A
1
N002
N510066846AA
JOINT
KQ2U06-00A
3
N003
N510066456AA
JOINT
AS2001F-06
2
N004
KXF068FAA00
SPEED CONTROLLER
TU0604B-20
2
N012
KXF03U6AA00
TUBE
TU1065B-20
1
N013
KXF03V4AA00
TUBE
NKS-00001-2
1
N014
MTNP000064AA
MANIFOLD
KQ2L10-01AS
1V 1 N510066802AA
JOINT
VV5QZ15-09C6C
1V 2 N510043024AA
MANIFOLD
VQZ1151B-5LO1-X555
5
V 3 N510055093AA
SOLENOID VALVE
VVQZ1000-10A-5
4
V 4 N415VVQZ-895
PLATE
AN10-01
2V 5 N510064382AA
SILENCER
B-TYPE PT1/8
3V 6 N433BYYY-019
PLUG
KQ2P-06
3
V 7 KXF09ZBAA00
PLUG
P10
FN610130573AA_06

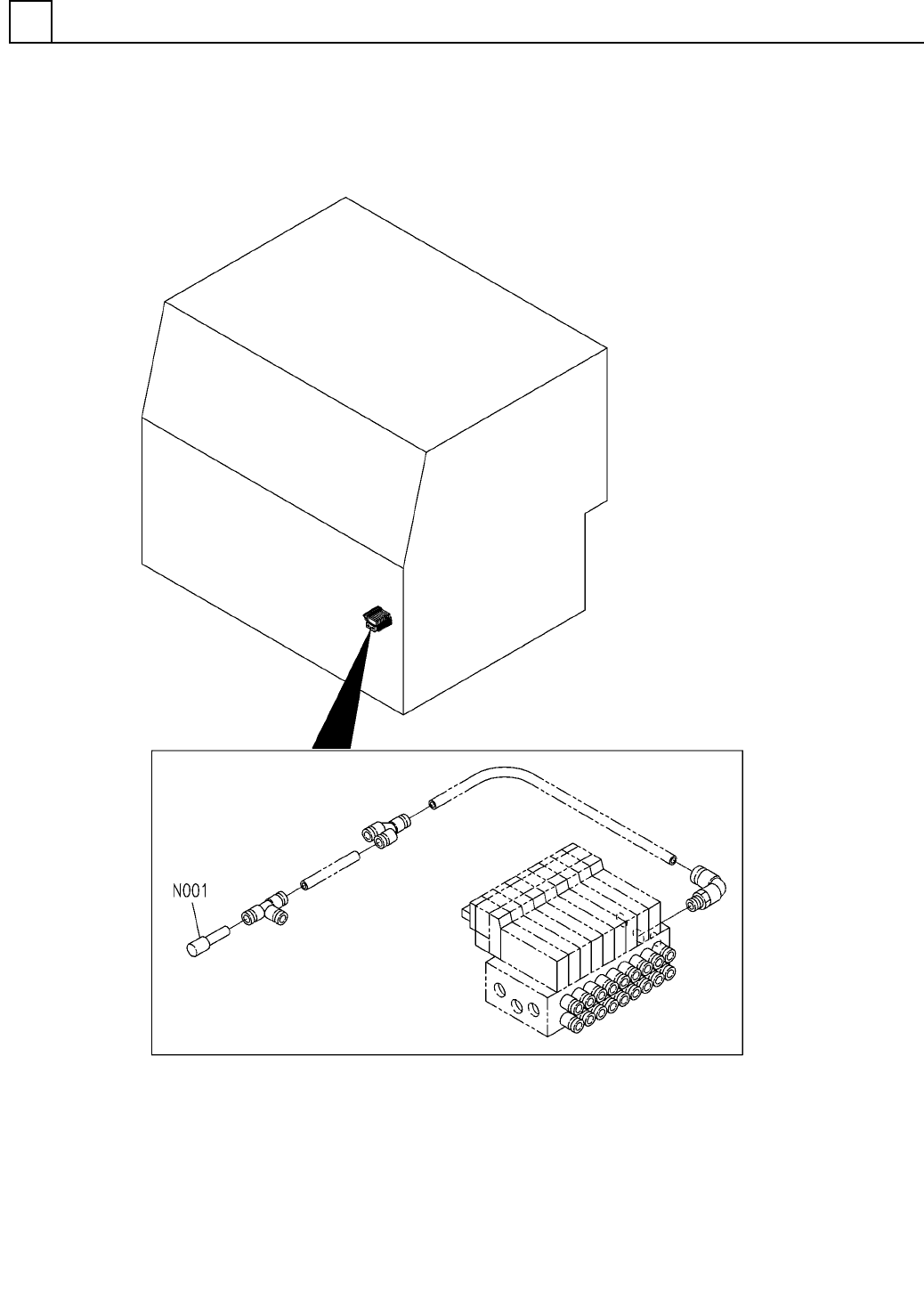

空圧制御部(40ｽﾃｰｼｮﾝ専用部)
PNEUMATIC SYSTEM SECT.(40 STATION EXCLUSIVE SECT.)
1
FN610094617AA_00_B
P11
