RL132四跨具部品书N7203A389B44 - 第625页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 空圧制 御部(RL 4 P ｵﾌﾟｼｮﾝ部) PNEUMA TIC SYSTEM SEC T.(FOR RL 4P OPTION SECT.) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610116535AA PNEUMATIC SYSTEM 1 001 N210137845AA PLATE KQ2U10…

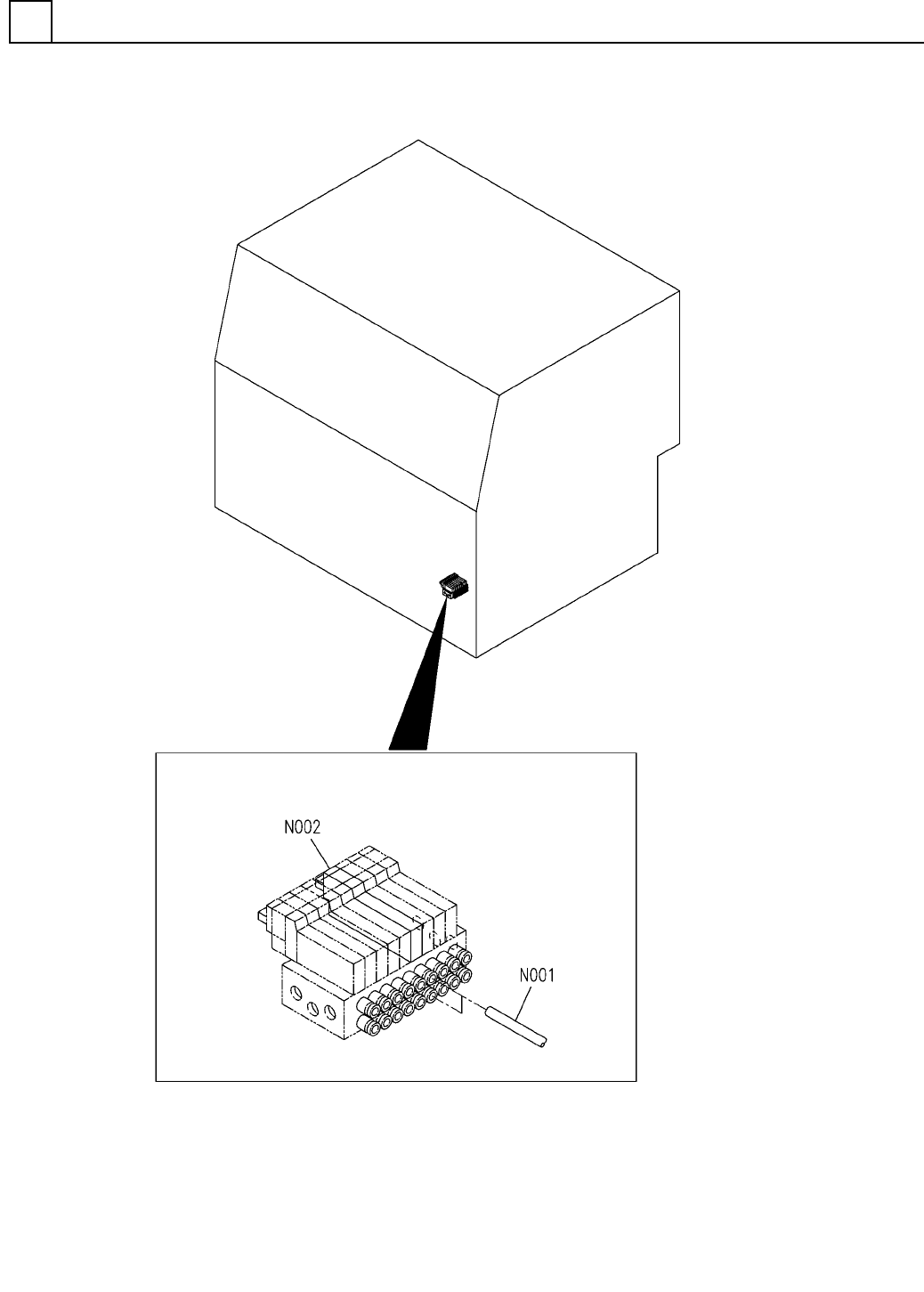

空圧制御部(RL 4P ｵﾌﾟｼｮﾝ部)
PNEUMATIC SYSTEM SECT.(FOR RL 4P OPTION SECT.)
1
FN610116535AA_05
P15
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
1
空圧制御部(RL 4P ｵﾌﾟｼｮﾝ部)
PNEUMATIC SYSTEM SECT.(FOR RL 4P OPTION SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610116535AA
PNEUMATIC SYSTEM
1001 N210137845AA
PLATE
KQ2U10-00A
1
N001
N510066715AA
FITTING
KQ2P-06
2
N005
KXF09ZBAA00
PLUG
TU0604B-20
1
N008
KXF03U6AA00
TUBE
TU1065B-20
1
N009
KXF03V4AA00
TUBE
NK-SI-14003
1
N010
MTNP000299AA
MANIFOLD
M4X30-10.9 A2J (Trivalent)
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT
M4X35-10.9 A2J (Trivalent)
2
X620
N510017364AA
HEX. SOCKET HEAD CAP BOLT
KQ2L10-01S
1V 1 KXF0E0YFA00
FITTING
VV5QZ15-02C6C
1
V 2 N510033370AA
MANIFOLD
VQZ1151B-5LO1-X555
2
V 3 N510055093AA
SOLENOID VALVE
AN103-01
2V 4 KXF00W9AA00
SILENCER
B-TYPE PT1/8
3V 5 N433BYYY-019
PLUG
P16
FN610116535AA_05
空圧制御部(ﾎﾞﾃﾞｨ修正)(ｵﾌﾟｼｮﾝ)
PNEUMATIC SYSTEM SECT.(BODY AMEND)(OPTION)
1
FN610131860AA_00_A
P17
