RL132四跨具部品书N7203A389B44 - 第104页
ｶﾊﾞｰ部（40 ｽﾃｰｼｮﾝ5） COVER SECT .(40 STATION-5 ) 6 FN610125947AA_19-5 M71
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ4）
COVER SECT.(40 STATION-4)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A002
N610157247AB
FRAME
1009 N210148439AB
COVER
1011 N210148438AB
COVER
1
020 N210148440AA
COVER
1022 N210100753AA
PLATE
1028 MTPB006858AA
COVER
1
029 N210149172AB
ROD
1
036 3086239031
LABEL
1037 N210153696AC
BRACKET
1044 1087105805
BRACKET
1
046 N210148441AE
COVER
1
047 N210174437AA
COVER
1048 N210156020AB
COVER
1049 MTPB005519AA
COVER
1
050 MTPB005518AA
COVER
1051 N210174440AA
COVER
JB-A M5X8 +
29
N003
N510038044AA
BOLT
M5X12
29
N004
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
29
N005
N510018765AA
TOOTHED LOCK WASHER
HS5D-02RNP S
1
N009
N510056987AA
SWITCH
53015030-WM
1
N010
KXF06F4AA00
JOINT
TH-125-2
2
N015
N510059870AA
HINGE
AP-2(black)
1
N023
KXF08CUAA00
DRAWER PULL
XW1E-BV402MFR-TK2377 S
1
N024
N510011524AA
SWITCH
EL-10
1
N026
N348EL10
BUSHING FOR WIRING
6 External toothed Steel Unichrome white (Tri
2
N027
N510018767AA
TOOTHED LOCK WASHER
4 10H A2J (Trivalent)
4
X562
N510018497AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
6
X563
N510018499AA
ROUND PLAIN WASHER
8 10H A2J (Trivalent)
1
X565
N510018503AA
WASHER
M4
4
X572
N510020099AA
WASHER
M4-6H-4T A2J (Trivalent)
4
X592
N510017855AA
HEXAGON NUT
M8-6H-4T A2J (Trivalent)
1
X595
N510017879AA
HEXAGON NUT
M4X30-10.9 A2J (Trivalent)
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT
M5X10-10.9 A2J (Trivalent)
6
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M4X8-4.8 A2J (Trivalent)
4
N501
N510018282AA
TRUSS HEAD SCREW
M4X12-4.8 A2J (Trivalent)
4
N502
N510018259AA
TRUSS HEAD SCREW
CCBSS6-10
2
N504
N510032025AA
BOLT
M70
FN610125947AA_19-4
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ5）
COVER SECT.(40 STATION-5)
6
FN610125947AA_19-5
M71

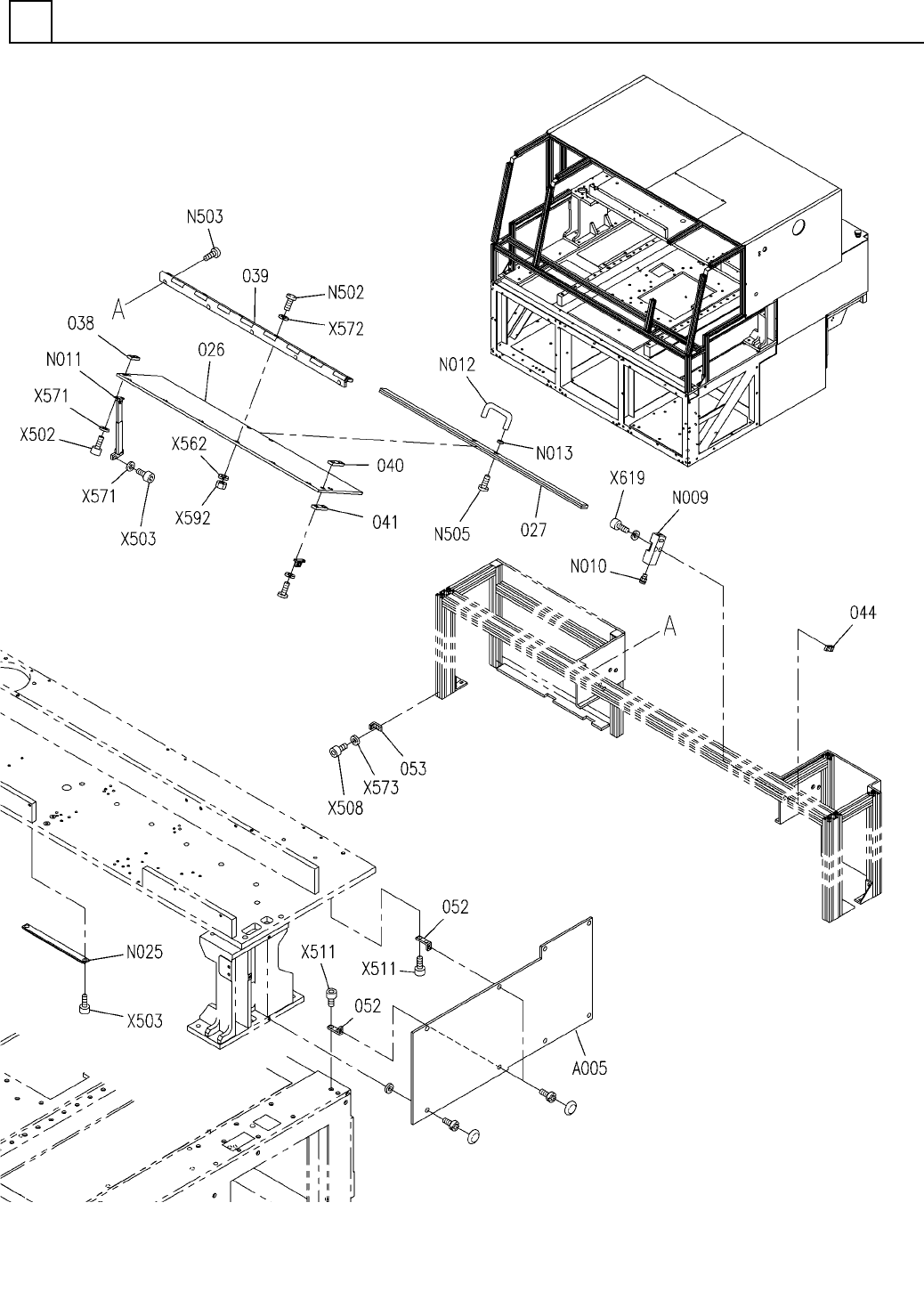

PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ5）
COVER SECT.(40 STATION-5)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A005
N610147655AB
COVER
1026 N210157280AC
COVER
1027 N210100767AA
BRACKET
1
038 KXFB012PA01
NUT PLATE
1039 N210093565AA
HINGE
1040 N210153695AA
NUT PLATE
1
041 N210153693AA
SPACER
1
044 1087105805
BRACKET
2052 N210171975AA
BRACKET
2053 N210175373AA
BRACKET
HS5D-02RNP S
1
N009
N510056987AA
SWITCH
53015030-WM
1
N010
KXF06F4AA00
JOINT
B-1223-12-L
1
N011
N980B122312L
STAY
THA-31-6
1
N012
N982THA3406A
DRAWER PULL
THA-270-3(3460)
2
N013
N982THA3460
WASHER
LF1B-NC4P-2THWW2-1M
1
N025
N510060416AA
LAMP
M3X8-10.9 A2J (Trivalent)
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M3X12-10.9 A2J (Trivalent)
2
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
6
X562
N510018497AA
ROUND PLAIN WASHER
M3
4
X571
N510020098AA
WASHER
M4
6
X572
N510020099AA
WASHER
M5
2
X573
N510020100AA
WASHER
M4-6H-4T A2J (Trivalent)
6
X592
N510017855AA
HEXAGON NUT
M4X30-10.9 A2J (Trivalent)
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT
M4X12-4.8 A2J (Trivalent)
6
N502
N510018259AA
TRUSS HEAD SCREW
M5X10-4.8 A2J (Trivalent)
5
N503
N510018284AA
TRUSS HEAD SCREW
M5X16-4.8 A2J (Trivalent)
2
N505
N510018290AA
TRUSS HEAD SCREW
M6X10-10.9 A2J (Trivalent)
4
X511
N510017424AA
HEX. SOCKET HEAD CAP BOLT
M72
FN610125947AA_19-5
