ｶﾊﾞｰ部（40 ｽﾃｰｼｮﾝ6） COVER SECT .(40 STATION-6 ) 6 FN610125947AA_19-6 M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ5）
COVER SECT.(40 STATION-5)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A005
N610147655AB
COVER
1026 N210157280AC
COVER
1027 N210100767AA
BRACKET
1
038 KXFB012PA01
NUT PLATE
1039 N210093565AA
HINGE
1040 N210153695AA
NUT PLATE
1
041 N210153693AA
SPACER
1
044 1087105805
BRACKET
2052 N210171975AA
BRACKET
2053 N210175373AA
BRACKET
HS5D-02RNP S
1
N009
N510056987AA
SWITCH
53015030-WM
1
N010
KXF06F4AA00
JOINT
B-1223-12-L
1
N011
N980B122312L
STAY
THA-31-6
1
N012
N982THA3406A
DRAWER PULL
THA-270-3(3460)
2
N013
N982THA3460
WASHER
LF1B-NC4P-2THWW2-1M
1
N025
N510060416AA
LAMP
M3X8-10.9 A2J (Trivalent)
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M3X12-10.9 A2J (Trivalent)
2
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
6
X562
N510018497AA
ROUND PLAIN WASHER
M3
4
X571
N510020098AA
WASHER
M4
6
X572
N510020099AA
WASHER
M5
2
X573
N510020100AA
WASHER
M4-6H-4T A2J (Trivalent)
6
X592
N510017855AA
HEXAGON NUT
M4X30-10.9 A2J (Trivalent)
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT
M4X12-4.8 A2J (Trivalent)
6
N502
N510018259AA
TRUSS HEAD SCREW
M5X10-4.8 A2J (Trivalent)
5
N503
N510018284AA
TRUSS HEAD SCREW
M5X16-4.8 A2J (Trivalent)
2
N505
N510018290AA
TRUSS HEAD SCREW
M6X10-10.9 A2J (Trivalent)
4
X511
N510017424AA
HEX. SOCKET HEAD CAP BOLT
M72
FN610125947AA_19-5
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ6）
COVER SECT.(40 STATION-6)
6
FN610125947AA_19-6
M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6

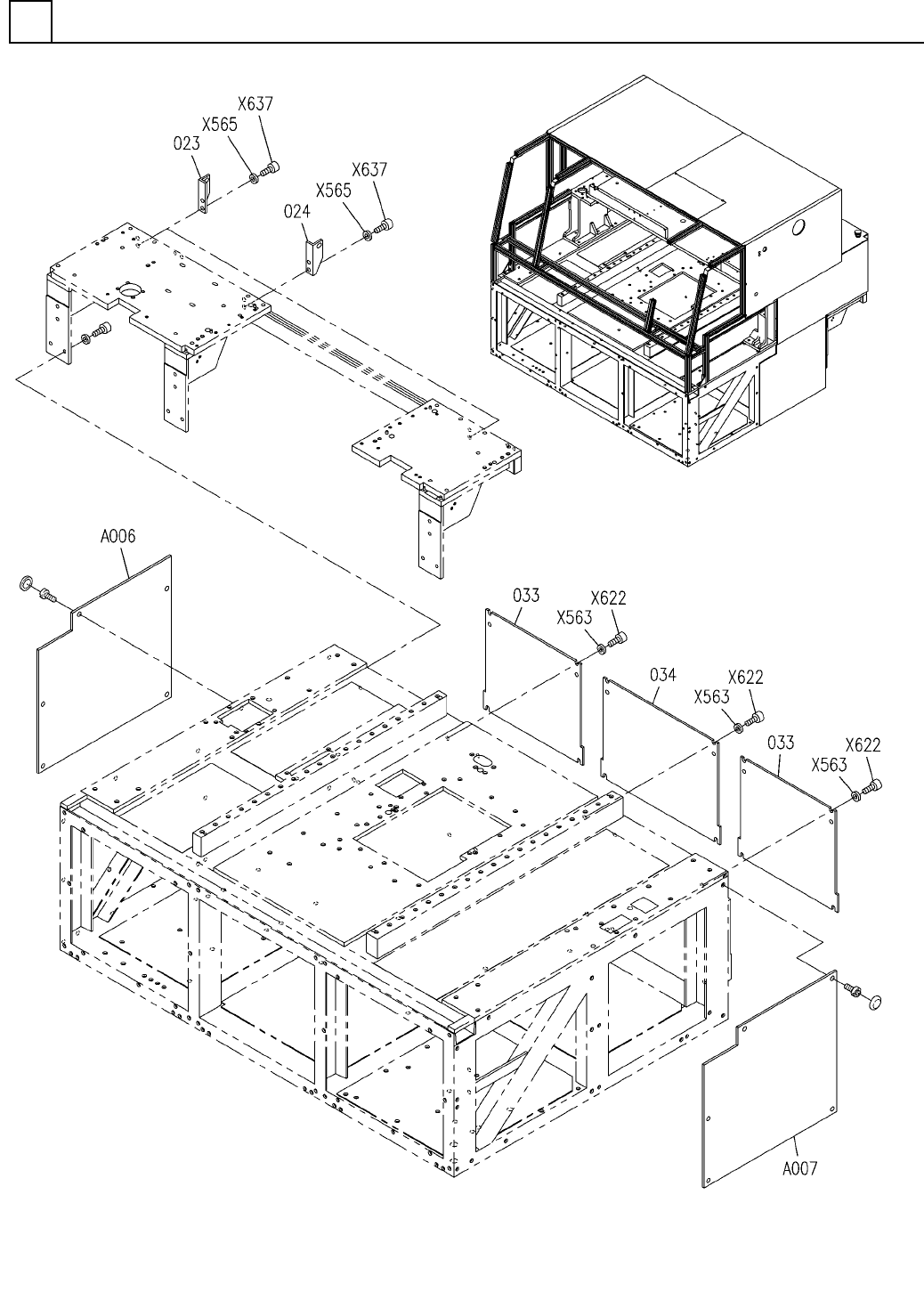

ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ6）
COVER SECT.(40 STATION-6)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
S
1
A006
N610131432AC
COVER
S
1
A007
N610131433AC
COVER
2023 N210149330AA
BRACKET
1
024 N210149331AA
BRACKET
2033 N210149555AB
COVER
1034 N210149556AB
COVER
5 10H A2J (Trivalent)
12
X563
N510018499AA
ROUND PLAIN WASHER
8 10H A2J (Trivalent)
9
X565
N510018503AA
WASHER
M5X10-10.9 A2J (Trivalent)
12
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M8X12-10.9 A2J (Trivalent)
10
X637
N510017465AA
HEX. SOCKET HEAD CAP BOLT
M74
FN610125947AA_19-6
