RL132四跨具部品书N7203A389B44 - 第120页

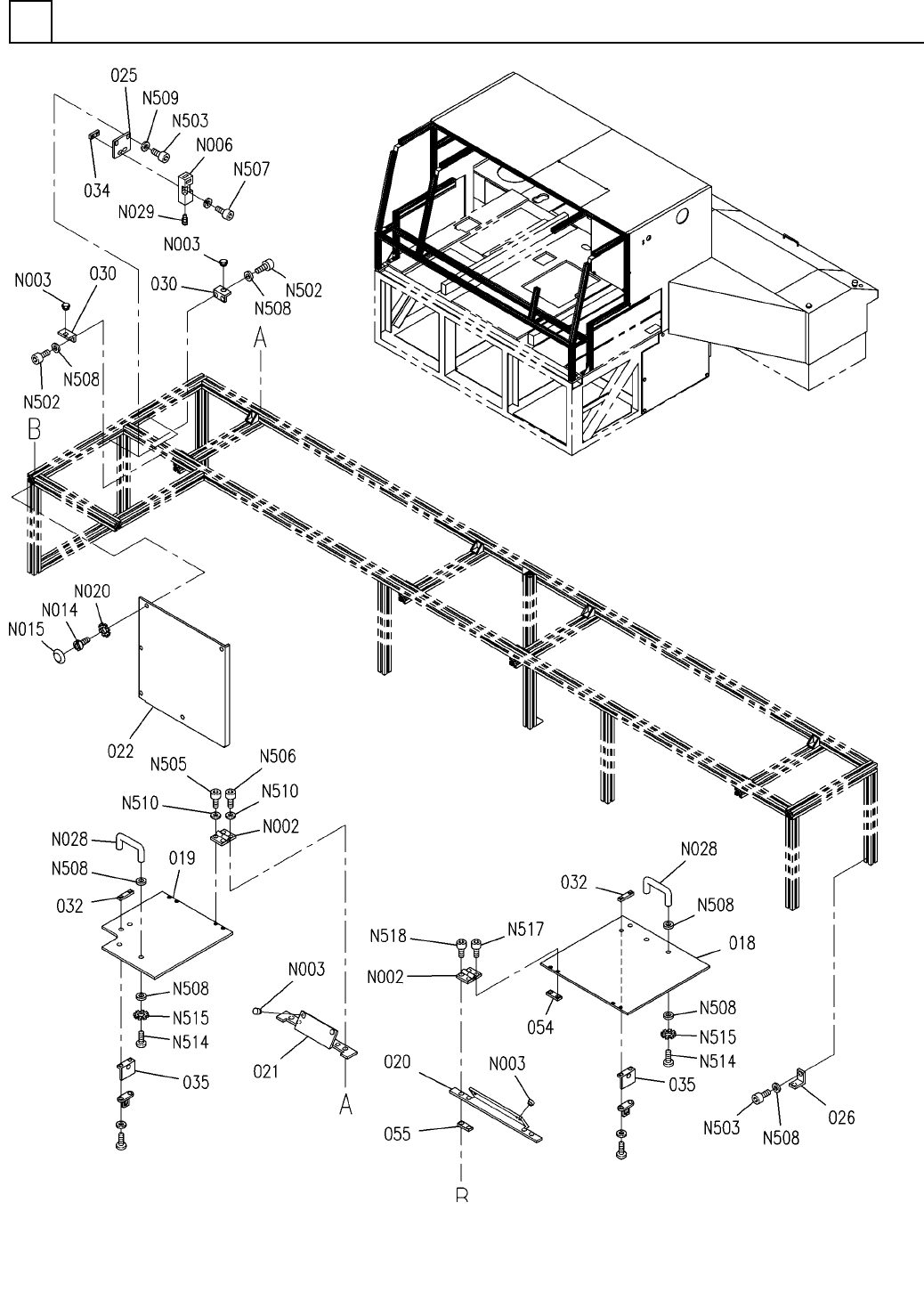

ｶﾊﾞｰ部（80 ｽﾃｰｼｮﾝ5） COVER SECT .(80 STATION-5 ) 6 FN610130678AA_18-5 M87
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ4）
COVER SECT.(80 STATION-4)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A002
N610157248AC
FRAME
1
A003
N610157250AA
FRAME
S
1
A008
N610116800AA
COVER
1
A009
N610130674AA
REAR PANEL UNIT
2013 N210093217AA
COVER
1014 N210100762AC
COVER
1
015 N210100809AC
COVER
1
016 N210152363AA
COVER
1017 N210152364AA
COVER
1023 N210155060AA
COVER
1
024 N210093236AA
BRACKET
1
045 N210099105AA
COVER
1048 N210156601AA
COVER
1049 N210149172AB
ROD
JB-A M5X8 +
46
N014
N510038044AA
BOLT
M5X12
46
N015
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
46
N020
N510018765AA
TOOTHED LOCK WASHER
M5X10-10.9 A2J (Trivalent)
4
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
6
N508
N510018499AA
ROUND PLAIN WASHER
M8-6H-4T A2J (Trivalent)
1
N516
N510017877AA
HEXAGON NUT
M86
FN610130678AA_18-4
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ5）
COVER SECT.(80 STATION-5)
6
FN610130678AA_18-5
M87
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ5）
COVER SECT.(80 STATION-5)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
018 MTPA009766AA
COVER
1019 N210141826AA
COVER
1020 N210093232AB
BRACKET
1
021 N210093233AB
BRACKET
1022 N210152320AB
COVER
2025 N210100753AA
PLATE
6
026 N210093556AA
BRACKET
2
030 N210093563AC
BRACKET
2032 N210153695AA
NUT PLATE
2034 1087105805
BRACKET
2
035 N210153696AC
BRACKET
2
054 N210167382AA
NUT PLATE
2055 N210167383AA
SPACER
B-1078-12
4
N002
KXF012NAA00
HINGE
C-30-CS-6
6
N003
KXF0C9YAA00
RUBBER
HS5D-02RNP S
2
N006
N510056987AA
SWITCH
JB-A M5X8 +
5
N014
N510038044AA
BOLT
M5X12
5
N015
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
5
N020
N510018765AA
TOOTHED LOCK WASHER
AP-2(black)
2
N028
KXF08CUAA00
DRAWER PULL
53015030-WM
2
N029
KXF06F4AA00
JOINT
M5X10-10.9 A2J (Trivalent)
4
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
16
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
4
N505
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X12-10.9 A2J (Trivalent)
4
N506
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M4X30-10.9 A2J (Trivalent)
4
N507
N510017361AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
24
N508
N510018499AA
ROUND PLAIN WASHER
M5
4
N509
N510020100AA
WASHER
4 10H A2J (Trivalent)
16
N510
N510018497AA
ROUND PLAIN WASHER
M6X10-4.8 A2J (Trivalent)
4
N514
N510018304AA
TRUSS HEAD SCREW
6 External toothed Steel Unichrome white (Tri
4
N515
N510018767AA
TOOTHED LOCK WASHER
M4X10-4.8 A2J (Trivalent)
4
N517
N510018257AA
TRUSS HEAD SCREW
M4X15-4.8 A2J (Trivalent)
4
N518
N510018263AA
TRUSS HEAD SCREW
M88
FN610130678AA_18-5
