RL132四跨具部品书N7203A389B44 - 第122页
ｶﾊﾞｰ部（80 ｽﾃｰｼｮﾝ6） COVER SECT .(80 STATION-6 ) 6 FN610130678AA_18-6 M89
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ5）
COVER SECT.(80 STATION-5)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
018 MTPA009766AA
COVER
1019 N210141826AA
COVER
1020 N210093232AB
BRACKET
1
021 N210093233AB
BRACKET
1022 N210152320AB
COVER
2025 N210100753AA
PLATE
6
026 N210093556AA
BRACKET
2
030 N210093563AC
BRACKET
2032 N210153695AA
NUT PLATE
2034 1087105805
BRACKET
2
035 N210153696AC
BRACKET
2
054 N210167382AA
NUT PLATE
2055 N210167383AA
SPACER
B-1078-12
4
N002
KXF012NAA00
HINGE
C-30-CS-6
6
N003
KXF0C9YAA00
RUBBER
HS5D-02RNP S
2
N006
N510056987AA
SWITCH
JB-A M5X8 +
5
N014
N510038044AA
BOLT
M5X12
5
N015
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
5
N020
N510018765AA
TOOTHED LOCK WASHER
AP-2(black)
2
N028
KXF08CUAA00
DRAWER PULL
53015030-WM
2
N029
KXF06F4AA00
JOINT
M5X10-10.9 A2J (Trivalent)
4
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
16
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
4
N505
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X12-10.9 A2J (Trivalent)
4
N506
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M4X30-10.9 A2J (Trivalent)
4
N507
N510017361AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
24
N508
N510018499AA
ROUND PLAIN WASHER
M5
4
N509
N510020100AA
WASHER
4 10H A2J (Trivalent)
16
N510
N510018497AA
ROUND PLAIN WASHER
M6X10-4.8 A2J (Trivalent)
4
N514
N510018304AA
TRUSS HEAD SCREW
6 External toothed Steel Unichrome white (Tri
4
N515
N510018767AA
TOOTHED LOCK WASHER
M4X10-4.8 A2J (Trivalent)
4
N517
N510018257AA
TRUSS HEAD SCREW
M4X15-4.8 A2J (Trivalent)
4
N518
N510018263AA
TRUSS HEAD SCREW
M88
FN610130678AA_18-5
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ6）
COVER SECT.(80 STATION-6)
6
FN610130678AA_18-6
M89
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6

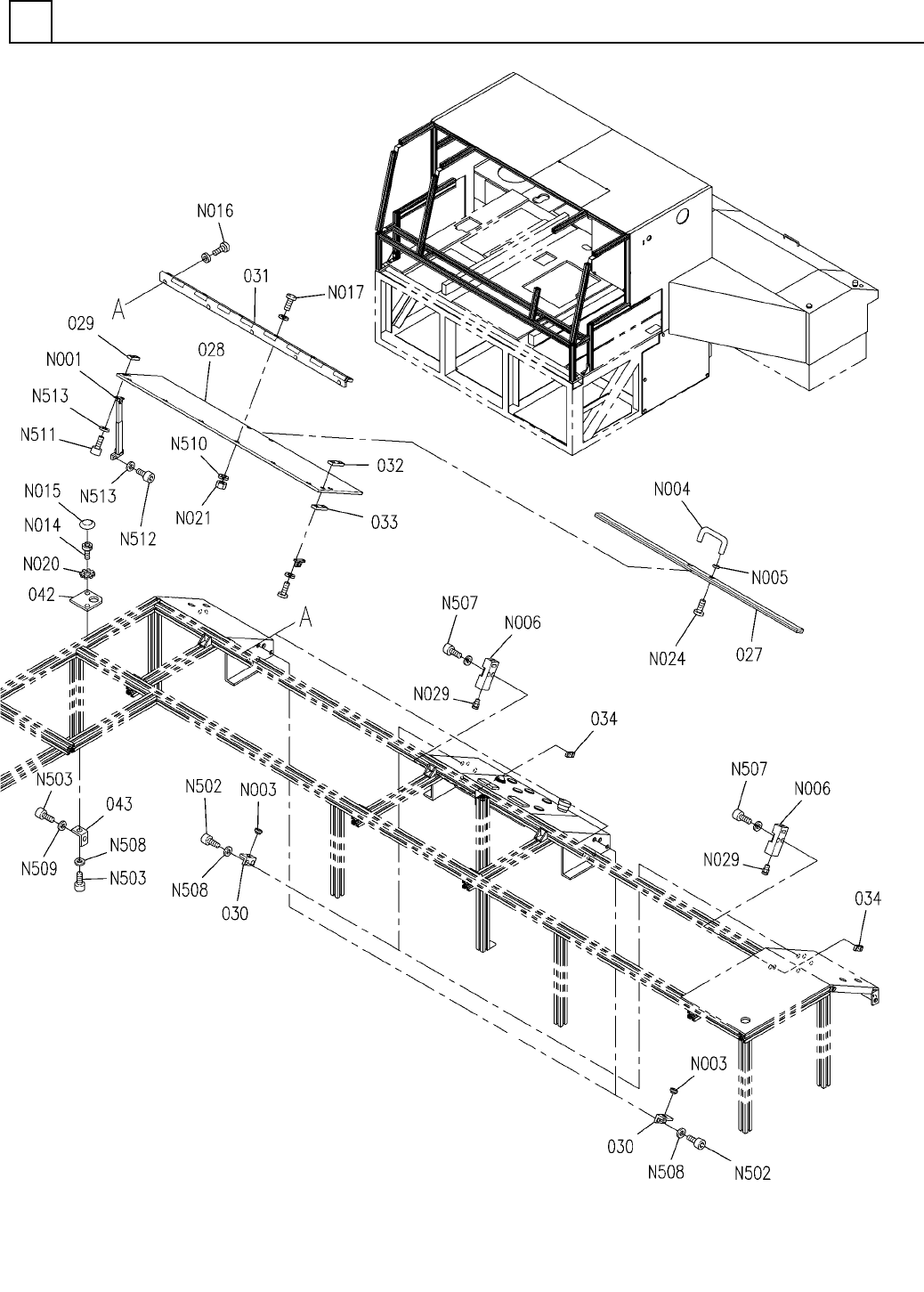

ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ6）
COVER SECT.(80 STATION-6)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
2
027 N210100767AA
BRACKET
S
2028 N210100769AB
COVER
2029 KXFB012PA01
NUT PLATE
4
030 N210093563AC
BRACKET
2031 N210093565AA
HINGE
2032 N210153695AA
NUT PLATE
2
033 N210153693AA
SPACER
2
034 1087105805
BRACKET
1042 N210100725AA
PLATE
1043 N210100724AA
BRACKET
B-1223-12-L
2
N001
N980B122312L
STAY
C-30-CS-6
4
N003
KXF0C9YAA00
RUBBER
THA-31-6
2
N004
N982THA3406A
DRAWER PULL
THA-270-3(3460)
4
N005
N982THA3460
WASHER
HS5D-02RNP S
2
N006
N510056987AA
SWITCH
JB-A M5X8 +
2
N014
N510038044AA
BOLT
M5X12
2
N015
N986YYYY-814
CAP
M5X10-4.8 A2J (Trivalent)
10
N016
N510018284AA
TRUSS HEAD SCREW
M4X12-4.8 A2J (Trivalent)
12
N017
N510018259AA
TRUSS HEAD SCREW
5 External toothed Steel Unichrome white (Tri
2
N020
N510018765AA
TOOTHED LOCK WASHER
M4-6H-4T A2J (Trivalent)
12
N021
N510017855AA
HEXAGON NUT
M5X16-4.8 A2J (Trivalent)
4
N024
N510018290AA
TRUSS HEAD SCREW
53015030-WM
2
N029
KXF06F4AA00
JOINT
M5X10-10.9 A2J (Trivalent)
8
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M4X30-10.9 A2J (Trivalent)
4
N507
N510017361AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
9
N508
N510018499AA
ROUND PLAIN WASHER
M5
1
N509
N510020100AA
WASHER
4 10H A2J (Trivalent)
12
N510
N510018497AA
ROUND PLAIN WASHER
M3X8-10.9 A2J (Trivalent)
4
N511
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M3X12-10.9 A2J (Trivalent)
4
N512
N510017308AA
HEX. SOCKET HEAD CAP BOLT
M3
8
N513
N510020098AA
WASHER
M90
FN610130678AA_18-6
