RL132四跨具部品书N7203A389B44 - 第140页
挿入ﾍｯ ﾄﾞ部(挿入 動力部2) INSERT ION HEAD SECT. (INSERTION P OWER SECT.-2) 7 FN610129985AA_16-2 M107
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部1)
INSERTION HEAD SECT.(INSERTION POWER SECT.-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610129985AA
INSERTION HEAD UNIT
1
A001
N610074349AA
ROTARY ENCODER
1
A003
N610089590AC
HOSE
1
001 MTPA002271AA
CAM
1002 N210145219AA
CAM
1004 N210145221AA
CAM
1
005 N210149857AA
CAM
1
006 N210149858AA
CAM
1007 N210157232AA
CAM
1013 N210058841AA
KEY
1
014 N210084973AC
PULLEY
1
015 N210092174AF
CAM BOX
1031 X01A53024
BLOCK
1032 N210105033AA
FLANGE
2
038 N210154469AA
KEY
1050 N210154470AB
SHAFT
1075 X02P12243
HOLDER(TUBE)
1
076 N210103757AA
BRACKET
M8X10 45H A2J (Trivalent)
6
N003
N510018388AA
HEX. SOCKET SET SCREW
SW50E07LF(230O26000)
1
N006
N620SW50-025
REDUCTION GEAR
87WASMH25-6
1
N010
N510034997AA
WASHER
87WASMH40-20
1
N011
N510035000AA
WASHER
FU04SC
1
N019
KXF0237AA00
LOCK-NUT
87KEDZ8-30
1
N020
N510035005AA
KEY
FUS07SC RYUBU light
1
N021
N510038140AA
LOCK-NUT
6007ZZ
1
N022
XLC6007ZZ
BALL BEARING
3005M d1=d2=10
1
N050
N6443005-053
COUPLING
AN15-02
1
N053
N510064385AA
SILENCER
KS-1/4
1
N054
N431KS02
FITTING
KN-1/4
1
N055
N431KN02
FITTING
3 842 529 295
2
N056
N510036844AA
BLOCK
M3X6-4.8 A2J (Trivalent)
2
N059
N510018158AA
FLUSH HEAD SCREW
M3X8-10.9 A2J (Trivalent)
7
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M6X16-10.9 A2J (Trivalent)
5
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT
M6X20-10.9 A2J (Trivalent)
14
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M10X30-10.9 A2J (Trivalent)
5
X520
N510017167AA
HEX. SOCKET HEAD CAP BOLT
M3X16-10.9 A2J (Trivalent)
4
X611
N510017313AA
HEX. SOCKET HEAD CAP BOLT
M5X10-10.9 A2J (Trivalent)
2
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M6X40-10.9 A2J (Trivalent)
4
X632
N510017442AA
HEX. SOCKET HEAD CAP BOLT
M5X8-45H A2J (Trivalent)
2
X717
N510018384AA
HEX. SOCKET SET SCREW
M106
FN610129985AA_16-1

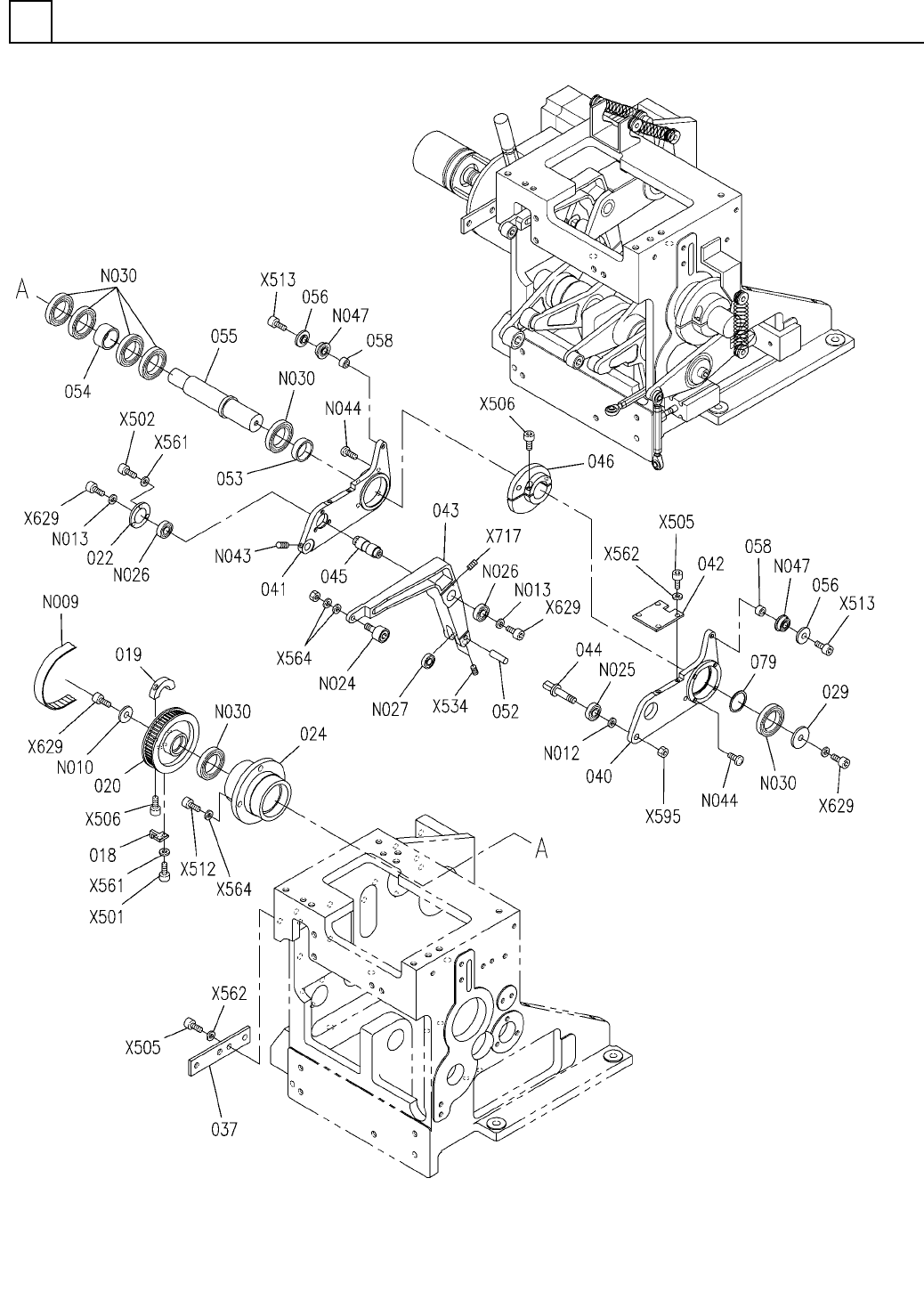

挿入ﾍｯﾄﾞ部(挿入動力部2)
INSERTION HEAD SECT.(INSERTION POWER SECT.-2)
7
FN610129985AA_16-2
M107
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部2)
INSERTION HEAD SECT.(INSERTION POWER SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
018 X02G45107
PLATE
1019 X02G45109
NUT
1020 X02G45110
PULLEY(TIMING)
1
022 X02G45116
PLATE
1024 N210158955AA
FLANGE
1029 X02G45126
WASHER
1
037 X02G45138
PLATE
1
040 N210157145AA
LEVER
1041 N210157146AA
LEVER
1042 X01L45001
PLATE
1
043 N210084985AB
LEVER
1
044 X01L4500501
PIN
1045 X01L45006
SHAFT
1046 N210157198AA
CAM
1
052 X01A45037
PIN
1053 N210157197AA
COLLAR
1054 N210158956AA
COLLAR
1
055 X01A45043
PIN
2
056 N210172273AA
WASHER
2058 N210084980AA
COLLAR
1079 N210157196AA
COLLAR
360-EV5GT-15
1
N009
N510027682AA
BELT(TIMING)
87WASMH25-6
1
N010
N510034997AA
WASHER
87FWSSM-D16.0-V8.0-T2.0
1
N012
N510033690AA
WASHER
87FWSSM-D14.0-V6.0-T3.0
2
N013
N510035006AA
WASHER
CFN6R-A
1
N024
N531CFN6RA
CAM FOLLOWER
NART8R-940061
1
N025
N531NART-019
ROLLER FOLLOWER
6901ZZ
2
N026
KXF00MLAA00
BEARING
NART6R-040025
1
N027
N531NART-033
CAM FOLLOWER
6005ZZ
6
N030
KXF00K8AA00
BEARING
M4X5-45H A2J (Trivalent)
1
N043
N510018372AA
HEX. SOCKET SET SCREW
M4X6-10.9 A2J (Trivalent)
8
N044
N510017534AA
HEX. SOCKET BUTTON HEAD BOL
F696ZZIMC3PS2S
2
N047
N510020363AA
BEARING
M3X5-10.9 A2J (Trivalent)
2
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
3
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
6
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X16-10.9 A2J (Trivalent)
4
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT
M6X16-10.9 A2J (Trivalent)
4
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT
M6X20-10.9 A2J (Trivalent)
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M4X8-45H A2J (Trivalent)
2
X534
N510018375AA
HEX. SOCKET SET SCREW
3 10H A2J (Trivalent)
5
X561
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
6
X562
N510018497AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
6
X564
N510018501AA
ROUND PLAIN WASHER
M8-6H-4T A2J (Trivalent)
1
X595
N510017877AA
HEXAGON NUT
M6X12-10.9 A2J (Trivalent)
4
X629
N510017428AA
HEX. SOCKET HEAD CAP BOLT
M5X8-45H A2J (Trivalent)
1
X717
N510018384AA
HEX. SOCKET SET SCREW
M108
FN610129985AA_16-2
