挿入ﾍｯﾄﾞ部(挿入動力部4) INSERT ION HEAD SECT. (INSERTION P OWER SECT.-4) 7 FN610129985AA_16-4 M111

PART No.

ｲﾗｽﾄ

No.

REF

No.

PART NAME

REMARKSQ'TY

7

挿入ﾍｯﾄﾞ部(挿入動力部3)

INSERTION HEAD SECT.(INSERTION POWER SECT.-3)

部品名品番個数備考

R

2

R

3

R

1

S

1

A002

N610074303AA

MOTOR

1008 N210145709AA

SPRING

1016 N210084989AB

PLATE

1

017 X02G45106

BRACKET(SENSOR)

1021 X02G45111

PULLEY(TIMING)

1028 N210092175AC

LEVER

1

029 X02G45126

WASHER

2

051 N210092183AA

SPRING

4056 N210172273AA

WASHER

1057 N210092184AA

BRACKET

3

058 N210084980AA

COLLAR

1

059 N210182452AA

COLLAR

1060 X01A45069

COLLAR

1067 X01A45090

PIN

87FWSSM-D15.0-V8.0-T3.0

1

N016

N510038169AA

WASHER

EE-SX672

1

N017

KXF01YHAA00

SENSOR

6905ZZ

2

N032

KXF06P1AA00

BEARING

CFN8R-A

1

N033

N531CFN8RA

CAM FOLLOWER

P0S8L

1

N036

N534P0S8L

ROD END

POS8

1

N037

N534P0S8

ROD END

M8,1-TYPE,STEEL,Z.C.T (L.H.T) (Trivalent)

1

N046

N510018953AA

HEXAGON NUT

F696ZZIMC3PS2S

4

N047

N510020363AA

BEARING

87LBMFN8-130

1

N051

N510038167AA

ROD

M4X16-10.9 A2J (Trivalent)

6

X506

N510017351AA

HEX. SOCKET HEAD CAP BOLT

M5X16-10.9 A2J (Trivalent)

3

X509

N510017395AA

HEX. SOCKET HEAD CAP BOLT

M6X10-10.9 A2J (Trivalent)

3

X511

N510017424AA

HEX. SOCKET HEAD CAP BOLT

M6X20-10.9 A2J (Trivalent)

3

X513

N510017435AA

HEX. SOCKET HEAD CAP BOLT

M8X20-10.9 A2J (Trivalent)

5

X516

N510017472AA

HEX. SOCKET HEAD CAP BOLT

3 10H A2J (Trivalent)

2

X561

N510018494AA

ROUND PLAIN WASHER

4 10H A2J (Trivalent)

4

X562

N510018497AA

ROUND PLAIN WASHER

5 10H A2J (Trivalent)

3

X563

N510018499AA

ROUND PLAIN WASHER

6 10H A2J (Trivalent)

3

X564

N510018501AA

ROUND PLAIN WASHER

8 10H A2J (Trivalent)

8

X565

N510018503AA

WASHER

M3

2

X571

N510020098AA

WASHER

Thick washer for M8

3

X575

N510020102AA

WASHER

M6-6H-4T A2J (Trivalent)

2

X594

N510017867AA

HEXAGON NUT

M3X6-10.9 A2J (Trivalent)

2

X609

N510017337AA

HEX. SOCKET HEAD CAP BOLT

M3X10-10.9 A2J (Trivalent)

2

X610

N510017305AA

HEX. SOCKET HEAD CAP BOLT

M6X12-10.9 A2J (Trivalent)

1

X629

N510017428AA

HEX. SOCKET HEAD CAP BOLT

M6X45-10.9 A2J (Trivalent)

1

X633

N510017444AA

HEX. SOCKET HEAD CAP BOLT

M110

FN610129985AA_16-3

挿入ﾍｯﾄﾞ部(挿入動力部4)

INSERTION HEAD SECT.(INSERTION POWER SECT.-4)

7

FN610129985AA_16-4

M111

PART No.

ｲﾗｽﾄ

No.

REF

No.

PART NAME

REMARKSQ'TY

7

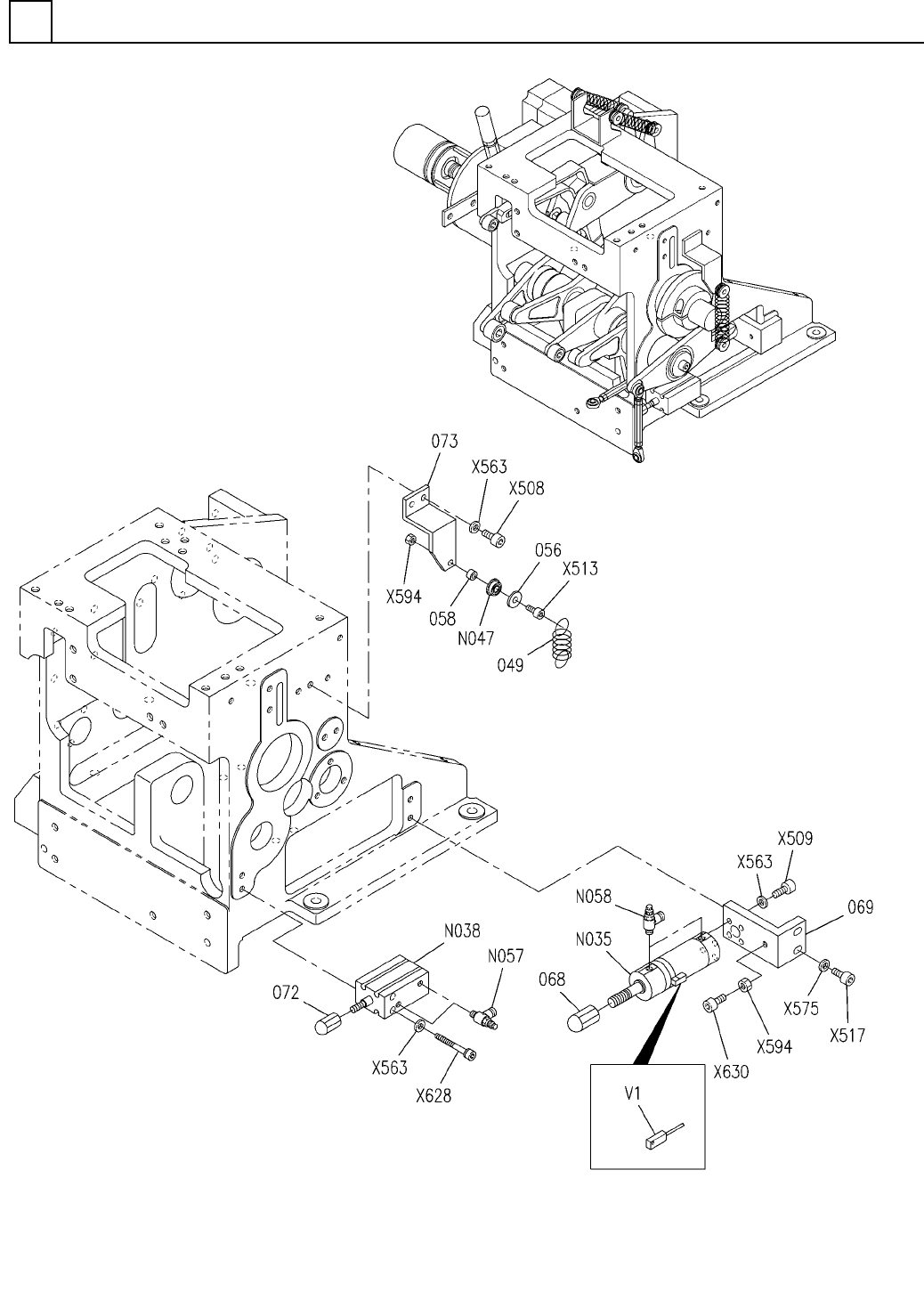

挿入ﾍｯﾄﾞ部(挿入動力部4)

INSERTION HEAD SECT.(INSERTION POWER SECT.-4)

部品名品番個数備考

R

2

R

3

R

1

1

049 N210092181AA

SPRING

1056 N210172273AA

WASHER

1058 N210084980AA

COLLAR

1

068 X01A45104

BRACKET

1069 X01A45105

BRACKET(CYLINDER)

1072 X01A45113

BRACKET

1

073 N210092186AA

BRACKET

CDG1BN25-25Z-H7A1S

1

N035

MTNP000949AA

CYLINDER

CDU20-40D

1

N038

N401CDU2040D

CYLINDER

F696ZZIMC3PS2S

1

N047

N510020363AA

BEARING

PSL6M5A

2

N057

MTNP000795AA

SPEED CONTROLLER

PSL601A

2

N058

MTNP000796AA

SPEED CONTROLLER

M5X12-10.9 A2J (Trivalent)

2

X508

N510017390AA

HEX. SOCKET HEAD CAP BOLT

M5X16-10.9 A2J (Trivalent)

4

X509

N510017395AA

HEX. SOCKET HEAD CAP BOLT

M6X20-10.9 A2J (Trivalent)

1

X513

N510017435AA

HEX. SOCKET HEAD CAP BOLT

M8X25-10.9 A2J (Trivalent)

2

X517

N510017473AA

HEX. SOCKET HEAD CAP BOLT

5 10H A2J (Trivalent)

8

X563

N510018499AA

ROUND PLAIN WASHER

Thick washer for M8

2

X575

N510020102AA

WASHER

M6-6H-4T A2J (Trivalent)

2

X594

N510017867AA

HEXAGON NUT

M5X50-10.9 A2J (Trivalent)

2

X628

N510017409AA

HEX. SOCKET HEAD CAP BOLT

M6X30-10.9 A2J (Trivalent)

1

X630

N510017438AA

HEX. SOCKET HEAD CAP BOLT

D-H7A1

1

V 1 N401DH7A1

SWITCH

M112

FN610129985AA_16-4
