RL132四跨具部品书N7203A389B44 - 第169页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 8 挿入部 (ﾁｬｯｸ 部(4P)) INSERT SECT.(CHUCK S ECT.(4P)) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610131482AA INSERTION UNIT 1 001 N210154869AA SPRING 1 002 X02G41002 SPRING 4 003 X0…

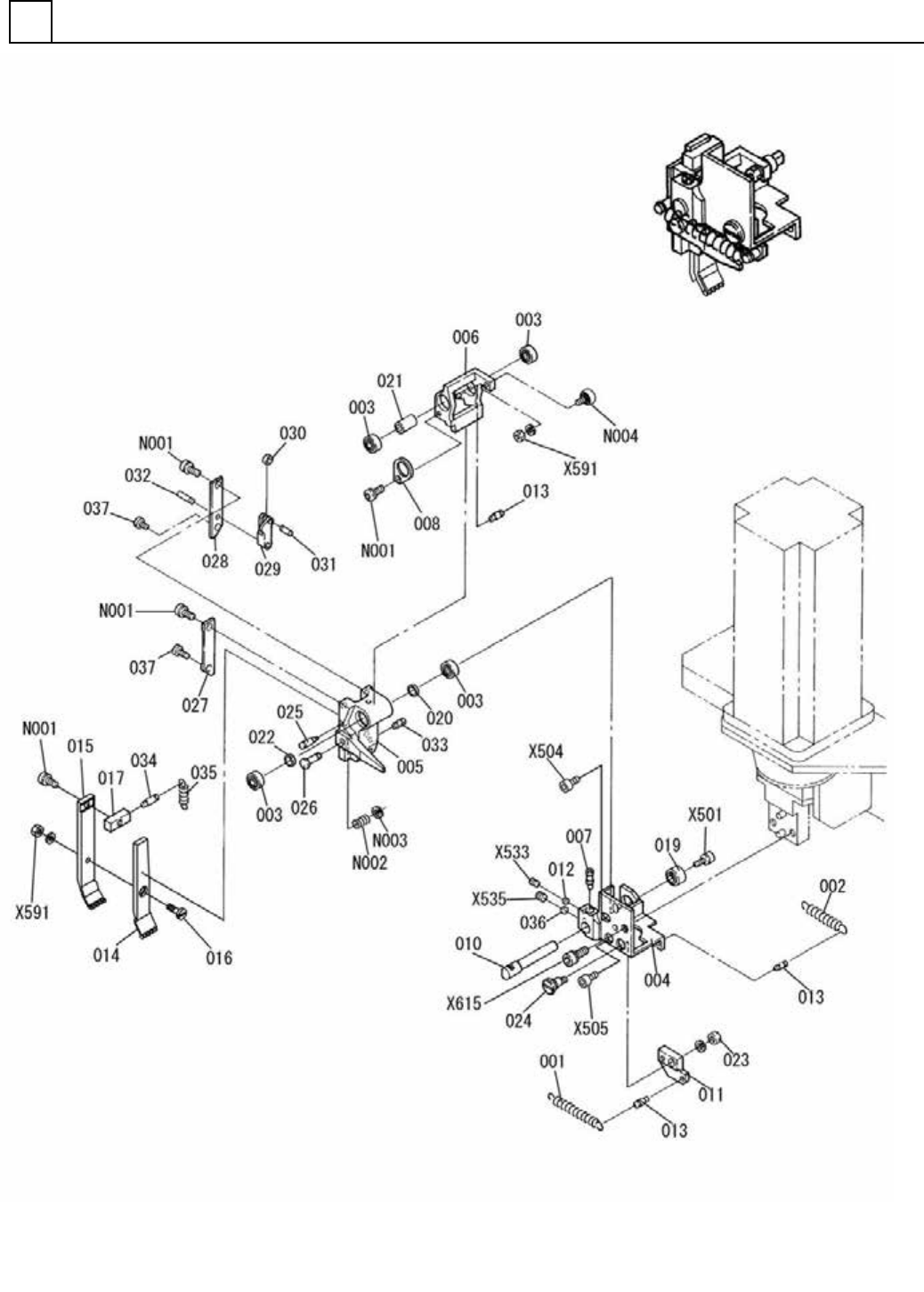

挿入部(ﾁｬｯｸ部(4P))
INSERT SECT.(CHUCK SECT.(4P))
8
FN610131482AA_09
M135
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
8
挿入部(ﾁｬｯｸ部(4P))
INSERT SECT.(CHUCK SECT.(4P))
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610131482AA
INSERTION UNIT
1001 N210154869AA
SPRING
1002 X02G41002
SPRING
4
003 X02G41003
BEARING
1004 X02G41101
BODY
1005 N210156569AA
HOLDER
1
006 N210156568AA
LEVER
1
007 X02G41104
PIN
1008 X02G41107
COVER
1010 X02G41109
SHAFT
1
011 X02G41110
PLATE(STOPPER)
1
012 X02G41111
SET PIECE
3013 N210089453AA
PIN
1014 MTPA004270AA
CHUCK
1
015 MTPA004271AA
CHUCK
1016 N210161188AA
PIN
1017 X01A4120401
STOPPER
1
019 X01A41313
COLLAR
1
020 X01A41315
COLLAR
1021 N210156567AA
COLLAR
1022 X01A41317
COLLAR
1
023 X01A41319
NUT
1
024 X01A41321
PIN
1025 N210089452AA
PIN
1026 X01A41324
PIN
1
027 X01A4132702
PLATE(A)
1028 X01A4132802
PLATE(B)
1029 X01A4132901
LEVER
1
030 X01A4133001
ROLLER
1
031 X01A4133101
PIN
1032 X01A41332
PIN
1033 X01A41337
PIN
1
034 X01A41338
PIN
E0180-022-1000-M
1
035 MTNK000339AA
SPRING
1036 X01A41342
SET PIECE
2037 X01A41343
SCREW
87BCB3-5
4
N001
N510023214AA
BOLT
5167
1
N002
N9865167
SPRING
2,STEEL,P.C
1
N003
XUC2FP
RETAINING RING E-TYPE
CFS3V
1
N004
KXF0C8LAA00
CAM FOLLOWER
M3X5-10.9 A2J (Trivalent)
1
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M4X6-10.9 A2J (Trivalent)
1
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
1
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
1
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M3-6H-4T A2J (Trivalent)
2
X591
N510017849AA
HEXAGON NUT
M4X4-45H A2J (Trivalent)
1
X533
N510018370AA
HEX. SOCKET SET SCREW
M5X5-45H A2J (Trivalent)
1
X535
N510018381AA
HEX. SOCKET SET SCREW
M136
FN610131482AA_09
