PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 9 ﾃｰﾌﾟ屑 ﾀﾞｸﾄ部(40ｽﾃｰｼｮ ﾝ) WASTE TAPE DUCT SECT .(40 STATION ) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610123555AA WASTE TAPE DUCT UNIT 1 001 N210152892AB DUCT 1 002 N210154433…

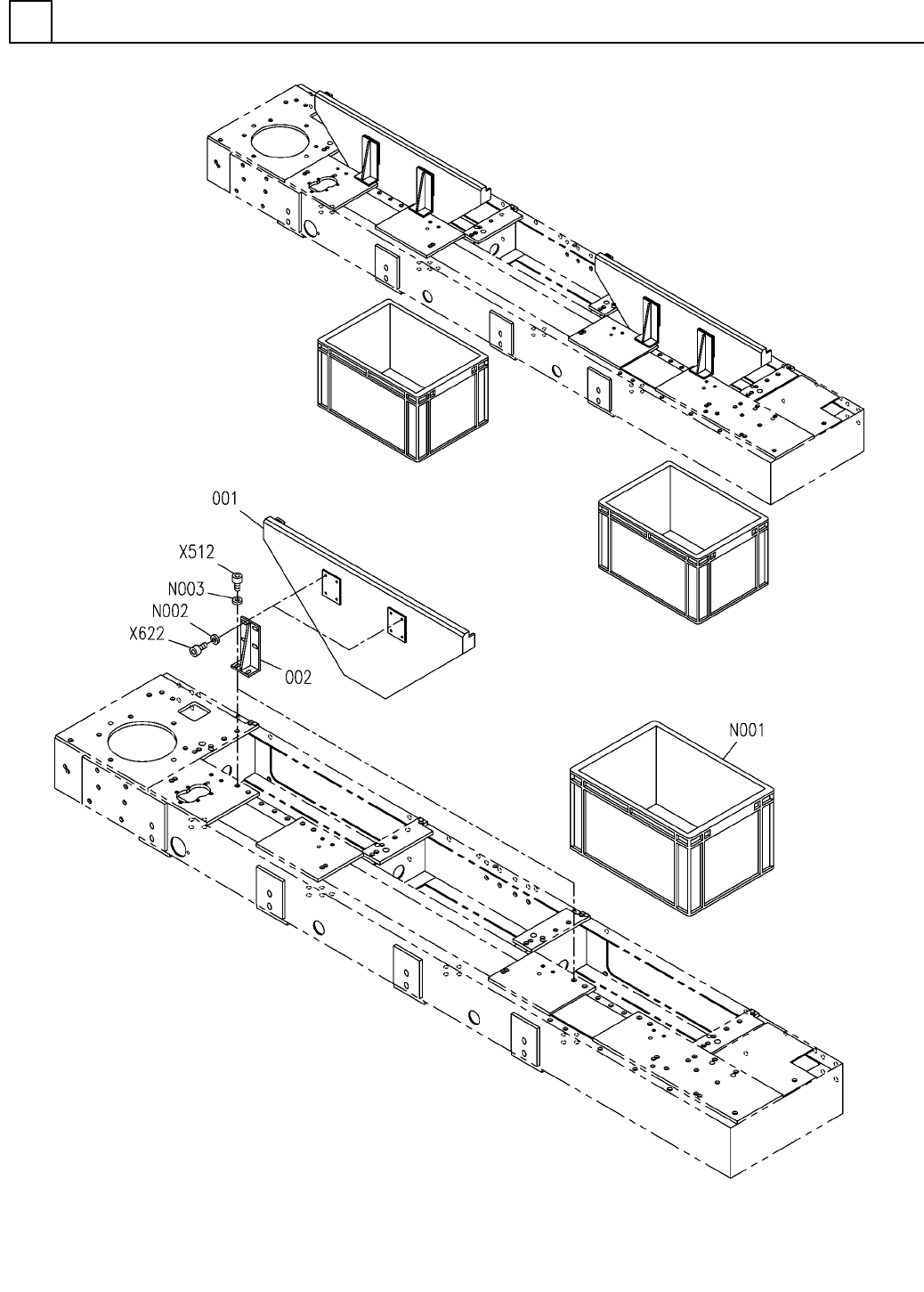

ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(40ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(40 STATION)
9
FN610123555AA_04
M143
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
9
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(40ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(40 STATION)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610123555AA
WASTE TAPE DUCT UNIT
1001 N210152892AB
DUCT
1002 N210154433AB
BRACKET
1
003 N210145904AB
BRACKET
NMC406-Blue
2
N001
N510040711AA
BOX
M5
12
N002
N510020100AA
WASHER
M5X10-10.9 A2J (Trivalent)
8
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X25-10.9 A2J (Trivalent)
4
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT
M144
FN610123555AA_04
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
9
FN610130631AA_03
M145
