RL132四跨具部品书N7203A389B44 - 第194页
下部ｱﾝﾋﾞﾙ部 (ﾍﾞﾙﾄｶﾊﾞｰ 共通部) LOWER ANVIL SECT.(BE LT COVER COM MON SECT.) 10 FN610089881AA_02 M161
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
10
下部ｱﾝﾋﾞﾙ部(ｱﾝﾋﾞﾙ動力部4)
LOWER ANVIL SECT.(ANVIL DRIVING SECT.-4)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
2
009 X02G53105
PLATE
1010 N210108481AB
LEVER
1011 N210072083AC
LEVER
1
015 X02G53112
PLATE
1031 X01L53030
SHAFT
1032 X01L53032
COLLAR
1
033 X01L53038
COLLAR
2
036 X01L53054
SPACER
2039 N210172273AA
WASHER
2045 N210170238AA
COLLAR
M5X6-45H A2J (Trivalent)
2
N008
N510018382AA
HEX. SOCKET SET SCREW
CFN8R-A
4
N012
N531CFN8RA
CAM FOLLOWER
CFN12R-A
2
N013
N531CFN12RA
CAM FOLLOWER
6006ZZ
2
N014
KXF00K9AA00
BEARING
6906ZZ
2
N015
KXF07PCAA00
BEARING
F696ZZIMC3PS2S
2
N018
N510020363AA
BEARING
M5X10-10.9 A2J (Trivalent)
3
N505
N510017386AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
3
N506
N510018499AA
ROUND PLAIN WASHER
M6X10-10.9 A2J (Trivalent)
2
N510
N510017424AA
HEX. SOCKET HEAD CAP BOLT
M6X25-10.9 A2J (Trivalent)
2
N515
N510017437AA
HEX. SOCKET HEAD CAP BOLT
M8-6H-4T A2J (Trivalent)
4
N523
N510017877AA
HEXAGON NUT
8 10H A2J (Trivalent)
4
N524
N510018503AA
WASHER
M12-6H-4T A2J (Trivalent)
2
N525
N510017895AA
HEXAGON NUT
12 10H A2J (Trivalent)
2
N526
N510018507AA
WASHER
M160
FMTKA006347AA_01-4

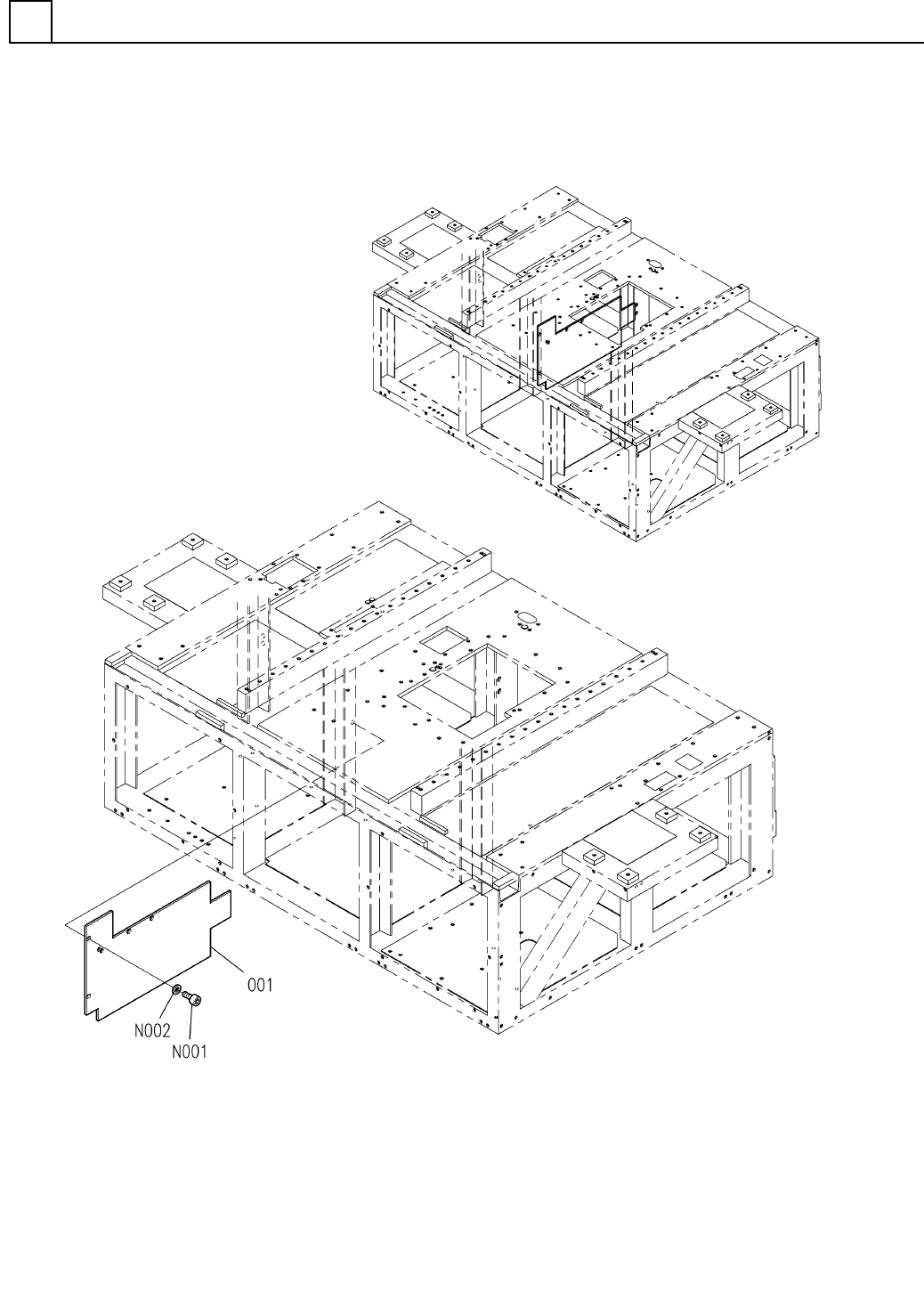

下部ｱﾝﾋﾞﾙ部(ﾍﾞﾙﾄｶﾊﾞｰ共通部)
LOWER ANVIL SECT.(BELT COVER COMMON SECT.)
10
FN610089881AA_02
M161
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
10
下部ｱﾝﾋﾞﾙ部(ﾍﾞﾙﾄｶﾊﾞｰ共通部)
LOWER ANVIL SECT.(BELT COVER COMMON SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610089881AA
UNDER ANVIL UNIT
1001 N210093382AA
PLATE
M5X8-10.9 A2J (Trivalent)
2
N001
N510017419AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
2
N002
N510018499AA
ROUND PLAIN WASHER
M162
FN610089881AA_02
