天板部(部品 ｹｰｽ(天 板)部1) UPPER PLATE SECT.(PA RTS CASE (UP PER PLATE) SEC T.-1) 16 FN610082070AA_10-1 M191
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
15
ﾌﾟﾘﾝﾄ基板ﾎﾟｼﾞｼｮﾅ部(ﾚｰﾙﾌﾞﾛｯｸ部)
P.C.B. POSITIONER SECT.(RAIL BLOCK SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610129571AA
RAIL BLOCK UNIT
2801 N210152044AB
GUIDE
2802 N210152045AA
GUIDE
1
805 N210152039AA
BLOCK
1806 N210152040AA
BLOCK
1807 N210152041AA
BLOCK
1
808 N210152042AB
BLOCK
1
809 N210152043AA
SPRING
M190
FN610129571AA_02

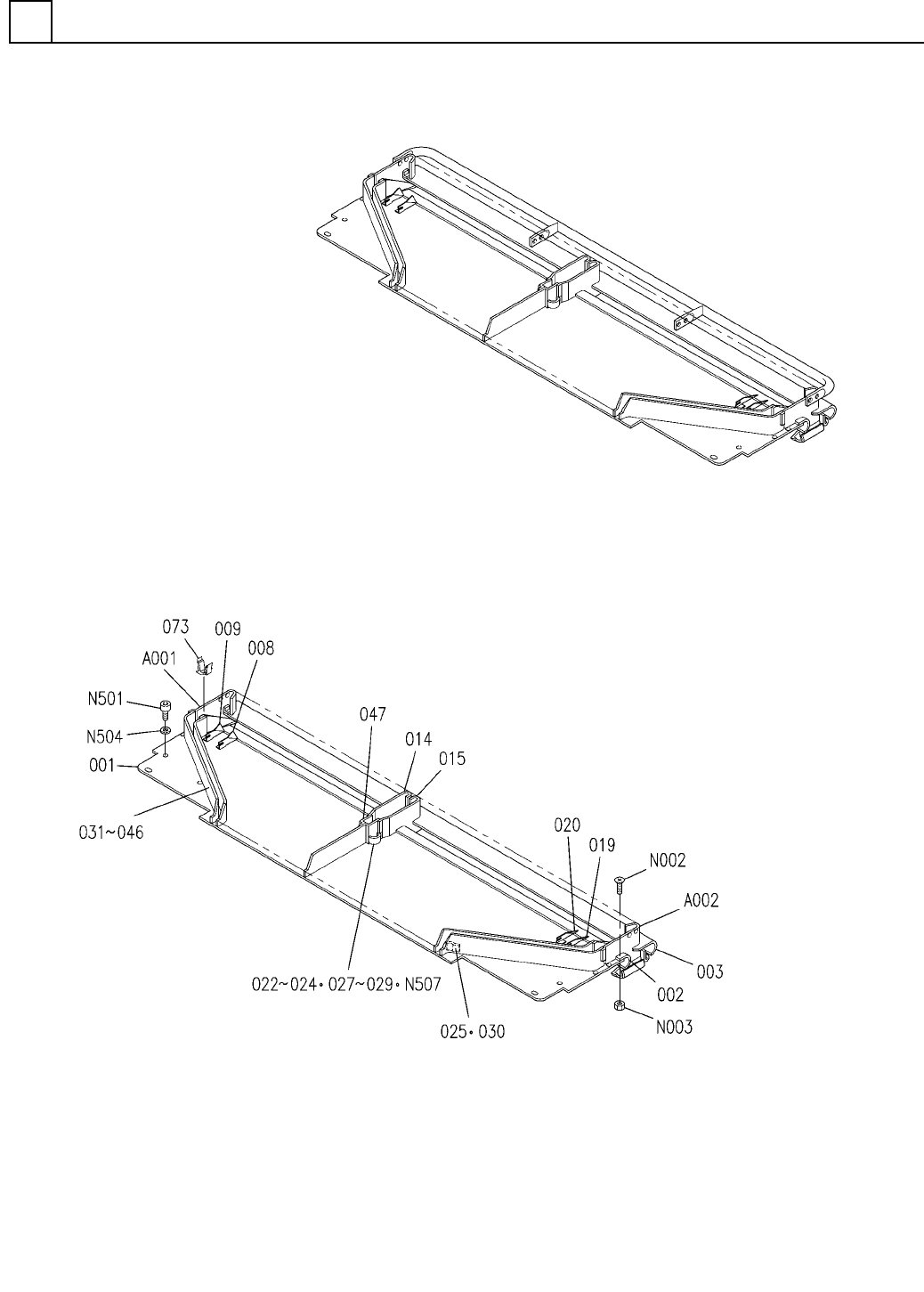

天板部(部品ｹｰｽ(天板)部1)
UPPER PLATE SECT.(PARTS CASE (UPPER PLATE) SECT.-1)
16
FN610082070AA_10-1
M191
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
16
天板部(部品ｹｰｽ(天板)部1)
UPPER PLATE SECT.(PARTS CASE (UPPER PLATE) SECT.-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610082070AA
UPPER PLATE UNIT
8
A001
N610076025AA
PLATE UNIT
12
A002
N610076028AA
PLATE UNIT
1
001 N210108587AA
PLATE
1002 N210088151AA
PLATE
1003 N210088152AA
PLATE
8
008 N210153325AA
PLATE
8
009 N210153324AA
PLATE
1014 N210094093AA
PLATE
1015 N210094094AA
PLATE
12
019 N210153893AA
PLATE
12
020 N210153894AA
PLATE
14022 MTPB003909AA
PLATE
1023 MTPB003910AA
PLATE
1
024 N210117051AB
PLATE
16025 N210117054AA
PLATE
22027 MTPB003908AA
PLATE
1
028 MTPB003911AA
PLATE
1
029 N210117053AB
PLATE
24030 N210117044AA
PLATE
1031 N210094095AA
GUIDE
1
032 N210100651AA
GUIDE
1
033 N210094097AA
GUIDE
1034 N210100652AA
GUIDE
1035 N210094099AA
GUIDE
1
036 N210100653AA
GUIDE
1037 N210094102AA
GUIDE
1038 N210100654AA
GUIDE
1
039 N210094104AA
GUIDE
1
040 N210100655AA
GUIDE
1041 N210094106AA
GUIDE
1042 N210100656AA
GUIDE
1
043 N210094108AA
GUIDE
1
044 N210100657AA
GUIDE
1045 N210094110AA
GUIDE
1046 N210100658AA
GUIDE
1
047 MTPB003912AA
GUIDE
5073 N210124083AC
GUARD (COMPONENT)
M3X8-10.9 A2J (Trivalent)
6
N002
N510017613AA
BOLT
M3-6H-4T A2J (Trivalent)
6
N003
N510017849AA
HEXAGON NUT
M4X6-10.9 A2J (Trivalent)
20
N501
N510017376AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
20
N504
N510018497AA
ROUND PLAIN WASHER
M3X4-10.9 A2J (Trivalent)
40
N507
N510017330AA
HEX. SOCKET HEAD CAP BOLT
M192
FN610082070AA_10-1
