RL132四跨具部品书N7203A389B44 - 第246页
部品ﾎﾞｯｸｽ部 (ｶﾞｲﾄﾞ部) PARTS BOX SECT.(GUIDE SE CT.) 18 FN610085105AA_00 M213
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
18
部品ﾎﾞｯｸｽ部(ｷｬｽﾀｰ付き<右>2)
PARTS BOX SECT.(CASTER TYPE<RIGHT>-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
2
012 X02P70560
SPACER
1013 X02P70660
NUT PLATE
420-OTP-00N32
2
N001
N510014936AA
CASTER
AP-2(black)
1
N003
KXF08CUAA00
DRAWER PULL
No.HH350
1
N005
KXF05UBAA00
CLAMP
M6X65-10.9 A2J (Trivalent) Full thread
1
N006
N510017453AA
HEX. SOCKET HEAD CAP BOLT
87WASMH25-6
1
N007
N510034997AA
WASHER
C-30-RK-3617
1
N008
KXF0AAKAA00
RUBBER LEG
PC010101 S
1
N009
N986PC010101
LABEL
M4X8-10.9 A2J (Trivalent)
4
N501
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M5X8-10.9 A2J (Trivalent)
8
N504
N510017419AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
4
N505
N510018497AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
8
N506
N510018499AA
ROUND PLAIN WASHER
M6X10-10.9 A2J (Trivalent)
2
X511
N510017424AA
HEX. SOCKET HEAD CAP BOLT
6 10H A2J (Trivalent)
2
X564
N510018501AA
ROUND PLAIN WASHER
M212
FN610080236AA_05-2

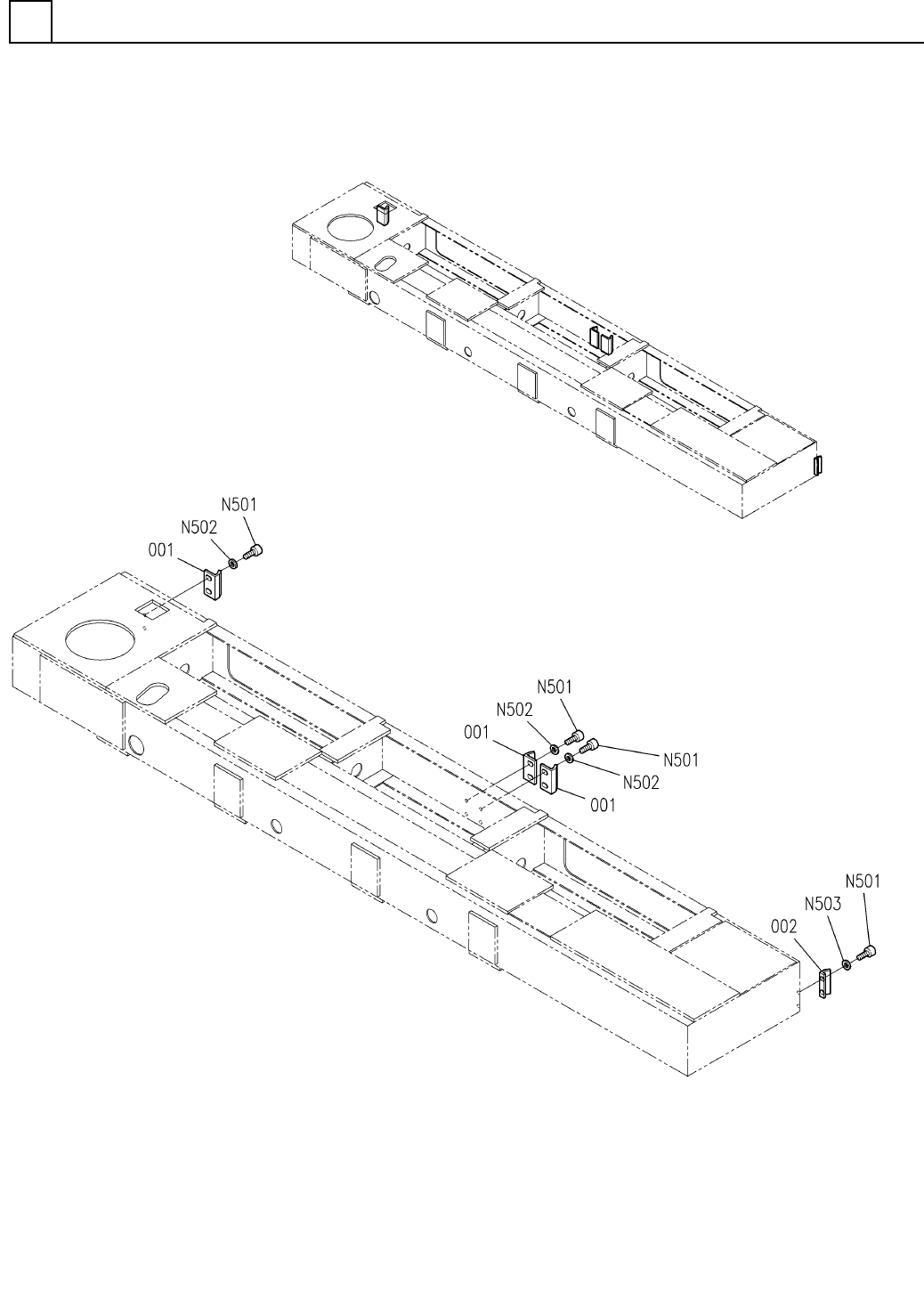

部品ﾎﾞｯｸｽ部(ｶﾞｲﾄﾞ部)
PARTS BOX SECT.(GUIDE SECT.)
18
FN610085105AA_00
M213
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
18
部品ﾎﾞｯｸｽ部(ｶﾞｲﾄﾞ部)
PARTS BOX SECT.(GUIDE SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610085105AA
PARTS BOX UNIT
3001 N210103935AA
GUIDE
1002 N210103936AA
GUIDE
M5X12-10.9 A2J (Trivalent)
8
N501
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M5
6
N502
N510020100AA
WASHER
5 10H A2J (Trivalent)
2
N503
N510018499AA
ROUND PLAIN WASHER
M214
FN610085105AA_00
