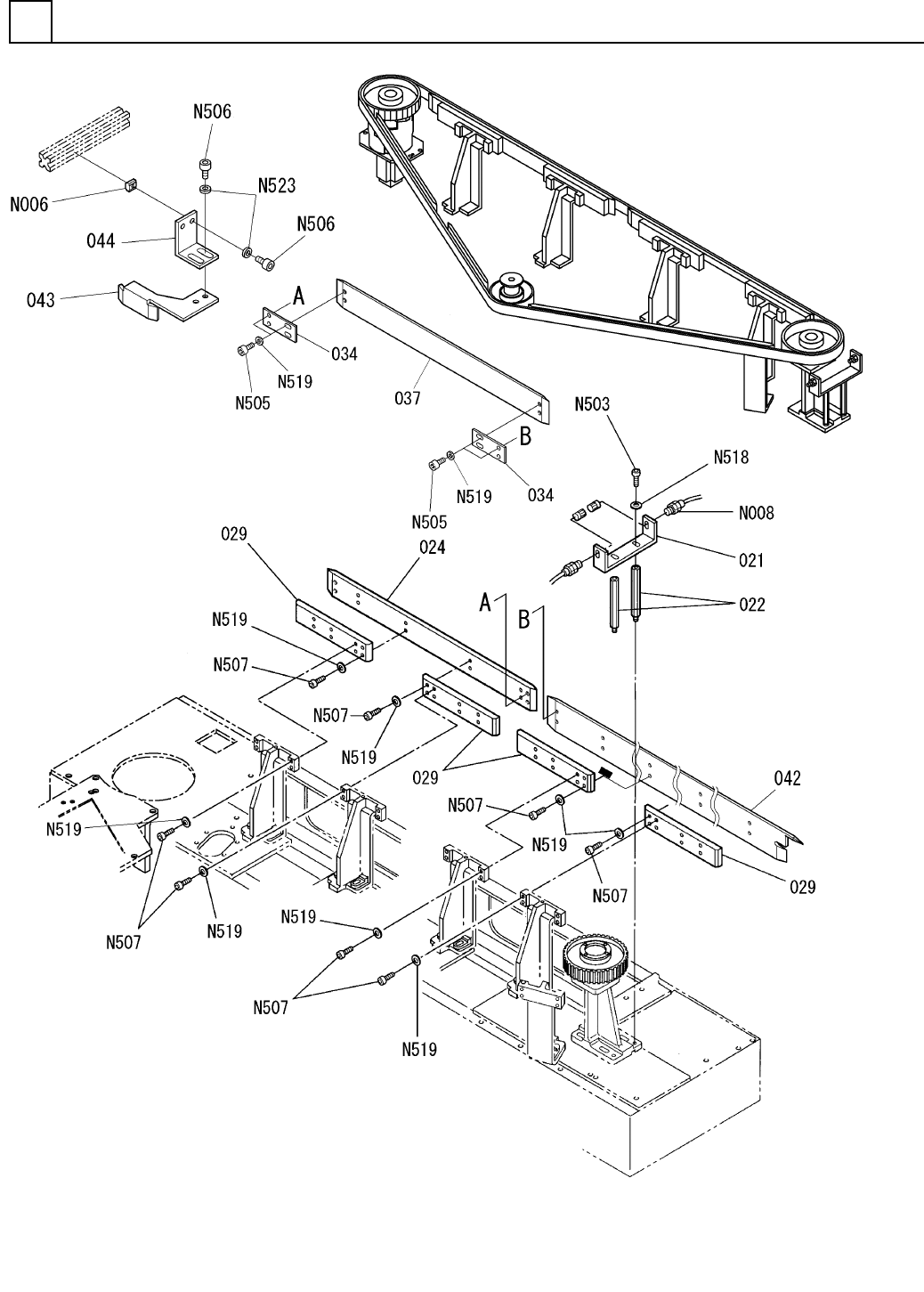

部品搬送部(3)(80ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(3)(80 STATION)
19
FN610130673AA_11-3
M227
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
19
部品搬送部(3)(80ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(3)(80 STATION)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
021 N210088852AB
BRACKET(SENSOR)
2022 N210088853AA
SPACER
1024 N210088837AC
GUIDE
4
029 N210088849AB
PLATE
2034 N210088846AA
LINK PLATE
1037 N210120605AA
GUIDE
1
042 N210153245AB
GUIDE
1
043 N210154457AA
GUIDE
1044 N210154458AA
BRACKET
3 842 529 295
2
N006
N510036844AA
BLOCK
E32-TC200
1
N008
N310E32TC200
SENSOR
M4X10-10.9 A2J (Trivalent)
2
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M5X8-10.9 A2J (Trivalent)
12
N505
N510017419AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
4
N506
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M5X16-10.9 A2J (Trivalent)
32
N507
N510017395AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
2
N518
N510018497AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
42
N519
N510018499AA
ROUND PLAIN WASHER
M5
4
N523
N510020100AA
WASHER
