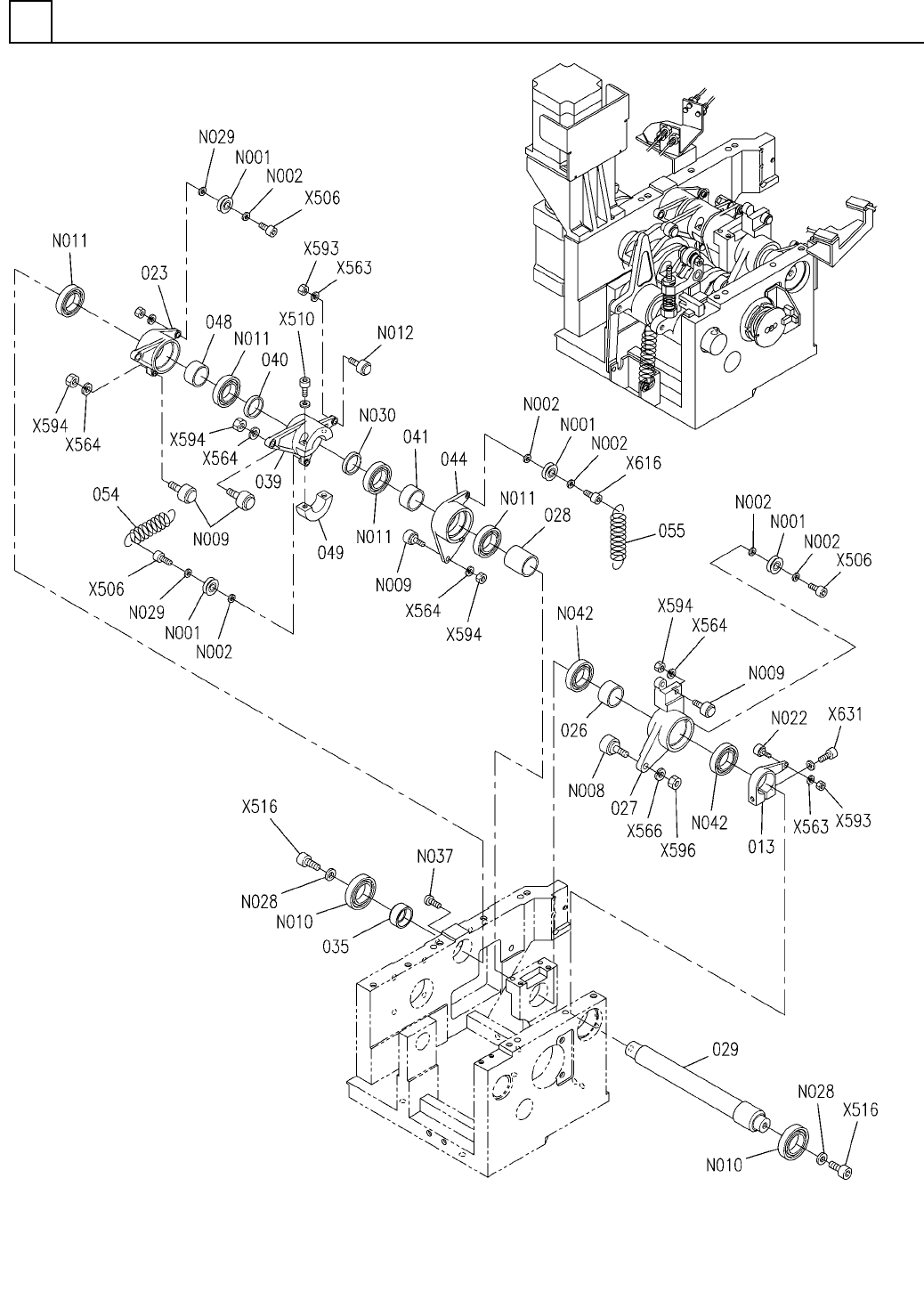

PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 20 部品加工部(動力部 4) PARTS PROCESS SECT.( DRIVING SECT .-4) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 013 N210103572AA LEVER 1 023 N210086544AB LEVER 1 026 N210156574AA COLLAR 1 027 …
部品加工部(動力部4)
PARTS PROCESS SECT.(DRIVING SECT.-4)
20
FN610125387AA_16-4
M243
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
20
部品加工部(動力部4)
PARTS PROCESS SECT.(DRIVING SECT.-4)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
013 N210103572AA
LEVER
1023 N210086544AB
LEVER
1026 N210156574AA
COLLAR
1
027 N210156400AA
LEVER
1028 N210148363AA
COLLAR
1029 N210148364AA
SHAFT
1
035 N210148366AA
COLLAR
1
039 N210086543AC
LEVER
1040 N210087149AA
COLLAR
1041 X01A14029
COLLAR
1
044 N210148367AA
LEVER
1
048 N210087147AA
COLLAR
1049 N210087543AA
NUT
1054 N210138019AA
TENSION SPRING
1
055 X01A14062
SPRING
SS4-13VZZNIGACEW(BF)
4
N001
MTNB000224AA
BEARING
87FWSSB-D6.0-V4.0-T1.0
6
N002
N510031417AA
WASHER
CFN12R-A
1
N008
N531CFN12RA
CAM FOLLOWER
CFN6R-A
4
N009
N531CFN6RA
CAM FOLLOWER
6004ZZ
2
N010
KXF0E23YA00
BEARING
6905ZZ
4
N011
KXF06P1AA00
BEARING
CFN5R-A
1
N012
N531CFN5RA
CAM FOLLOWER
CFS5
1
N022
N532CFS5
CAM FOLLOWER
87FWSSB-D25-V8.0-T5.0
2
N028
N510037908AA
WASHER
87FWSSB-D6.0-V4.0-T2.0
2
N029
N510028901AA
WASHER
87FWSSB-D30-V25.0-T2.0
1
N030
N510037210AA
WASHER
M5X10-4.8 A2J (Trivalent)
2
N037
N510018284AA
TRUSS HEAD SCREW
6005ZZ
2
N042
KXF00K8AA00
BEARING
M4X12-10.9 A2J (Trivalent)
1
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M4X16-10.9 A2J (Trivalent)
4
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT
M5X20-10.9 A2J (Trivalent)
2
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT
M6X35-10.9 A2J (Trivalent)
1
X631
N510017440AA
HEX. SOCKET HEAD CAP BOLT
M8X20-10.9 A2J (Trivalent)
2
X516
N510017472AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
2
X563
N510018499AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
4
X564
N510018501AA
ROUND PLAIN WASHER
10 10H A2J (Trivalent)
1
X566
N510018505AA
WASHER
M5-6H-4T A2J (Trivalent)
2
X593
N510017862AA
HEXAGON NUT
M6-6H-4T A2J (Trivalent)
4
X594
N510017867AA
HEXAGON NUT
M10-6H-4T A2J (Trivalent)
1
X596
N510017887AA
HEXAGON NUT
