部品ｶﾞｲﾄﾞﾏ ｳﾝﾄ部(左右 共通取付部)(80ｽﾃ ｰｼｮﾝ) PARTS GUIDE MOUNT SE CT.(L & R CO MMON ATTACHMEN T SECT.)(80 ST ATI ON) 21 FN610082519AA_00_A M271

100%1 / 632
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
PART NAME
REMARKSQ'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(40 STATION)
部 品 名品　 番 個数 備 考
R
2
R
3
R
1
1
N610123559AA
PARTS GUIDE MOUNT UNIT
2001 N210180290AA
BRACKET
2002 N210148686AC
NUT PLATE
M6X16-10.9 A2J (Trivalent)
6
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT
6 10H A2J (Trivalent)
6
X564
N510018501AA
ROUND PLAIN WASHER
M6X20-10.9 A2J (Trivalent)
8
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M6
8
X574
N510020101AA
WASHER
M270
FN610123559AA_04
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(80 STATION)
21
FN610082519AA_00_A
M271
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
PART NAME
REMARKSQ'TY
21

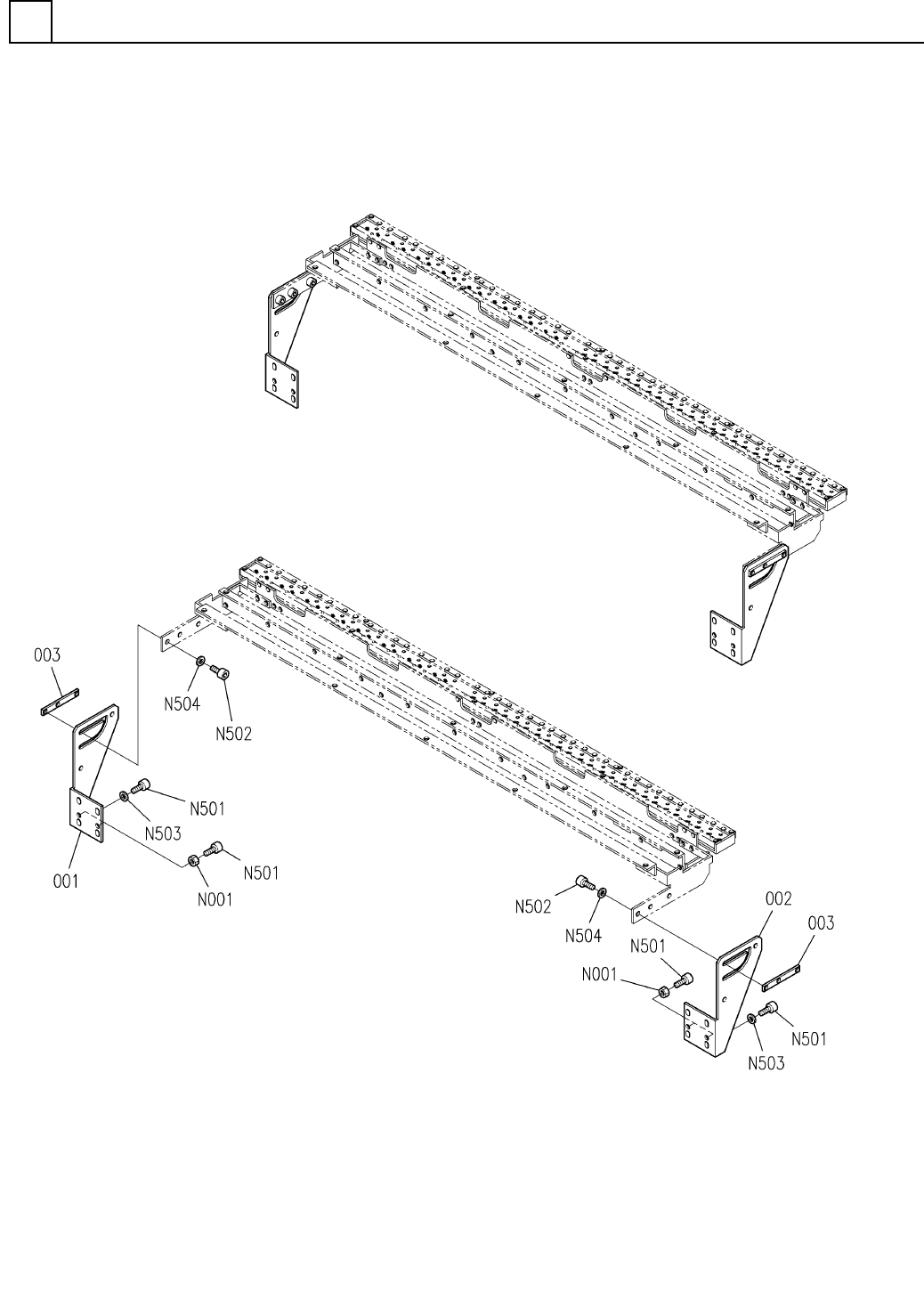

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(80 STATION)
部 品 名品　 番 個数 備 考
R
2
R
3
R
1
1
N610082519AA
PARTS GUIDE MOUNT UNIT
1001 N210088870AB
BRACKET
1002 N210088871AB
BRACKET
2
003 N210088873AA
NUT PLATE
M6-6H-4T A2J (Trivalent)
4
N001
N510017867AA
HEXAGON NUT
M6X20-10.9 A2J (Trivalent)
12
N501
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M6X16-10.9 A2J (Trivalent)
6
N502
N510017433AA
HEX. SOCKET HEAD CAP BOLT
M6
8
N503
N510020101AA
WASHER
6 10H A2J (Trivalent)
6
N504
N510018501AA
ROUND PLAIN WASHER
M272
FN610082519AA_00_A
