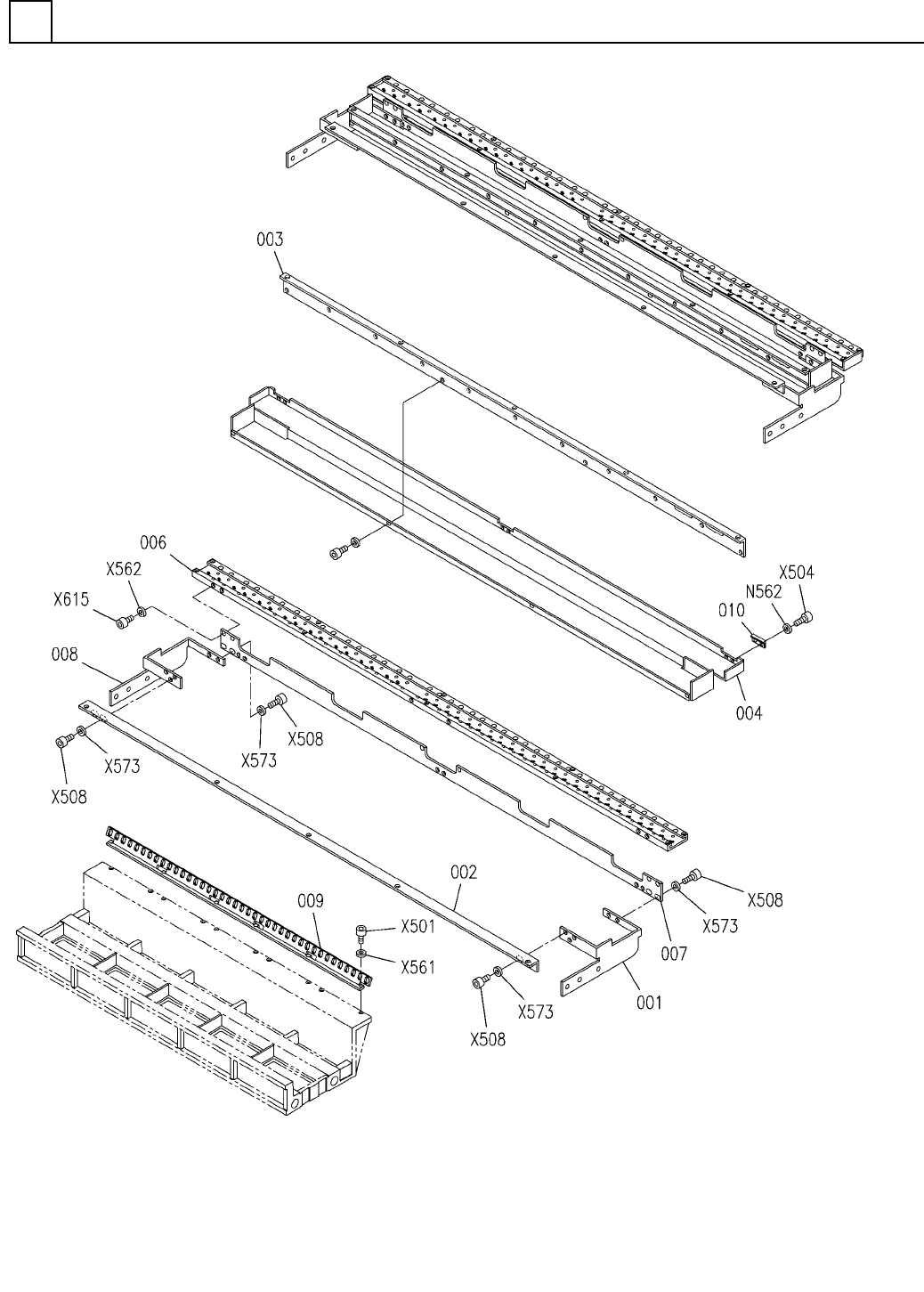

部品ｶﾞｲﾄﾞﾏ ｳﾝﾄ部(左右 共通)(40ｽﾃｰｼｮﾝ) PARTS GUIDE MOUNT SE CT.(LEFT & R IGHT COMMON)(4 0 STATION) 21 FN610123560AA_04 M273
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(L & R COMMON ATTACHMENT SECT.)(80 STATION)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610082519AA
PARTS GUIDE MOUNT UNIT
1001 N210088870AB
BRACKET
1002 N210088871AB
BRACKET
2
003 N210088873AA
NUT PLATE
M6-6H-4T A2J (Trivalent)
4
N001
N510017867AA
HEXAGON NUT
M6X20-10.9 A2J (Trivalent)
12
N501
N510017435AA
HEX. SOCKET HEAD CAP BOLT
M6X16-10.9 A2J (Trivalent)
6
N502
N510017433AA
HEX. SOCKET HEAD CAP BOLT
M6
8
N503
N510020101AA
WASHER
6 10H A2J (Trivalent)
6
N504
N510018501AA
ROUND PLAIN WASHER
M272
FN610082519AA_00_A
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)(40 STATION)
21
FN610123560AA_04
M273
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)(40 STATION)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610123560AA
PARTS GUIDE MOUNT UNIT
1001 N210146528AD
BRACKET
1002 N210088607AA
STAY
1
003 N210098160AA
BRACKET
1004 N210180155AC
COVER
1006 N210088612AB
BRACKET
1
007 N210098161AB
PLATE
1
008 N210146520AD
BRACKET
1009 N210124701AA
BRACKET
3010 N210180156AA
BRACKET
M5X12-10.9 A2J (Trivalent)
8
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
M3X5-10.9 A2J (Trivalent)
10
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
6
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M5
8
X573
N510020100AA
WASHER
3 10H A2J (Trivalent)
10
X561
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
12
X562
N510018497AA
ROUND PLAIN WASHER
M4X6-10.9 A2J (Trivalent)
6
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT
M274
FN610123560AA_04
