ﾛｰﾀﾞ･ｱﾝﾛｰﾀ ﾞ部(連結部) LOADER & UNLOADER SE CT.(JOINT SE CT.) 25 FN610138373AA_02 M325
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
25
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(P-PUSH部)
LOADER & UNLOADER SECT.(P-PUSH SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610128927AA
P-PUSH UNIT
2001 1011682502
BOLT
1002 101168250301
PLATE
1
003 1011682504
BRACKET
2004 1011682505
PLATE
1005 1011682506
PLATE
1
006 101168250701
PLATE
1
007 1011682004
SPRING
1008 N210166591AA
LEVER
1009 1011682514
BLOCK
1
010 101168251501
BRACKET
1
011 1011682516
BRACKET
1012 1011682524
COLLAR
1013 N210162939AB
PLATE
1
014 N210151403AA
BRACKET
1015 N210151185AA
BRACKET
1016 N210163513AA
BRACKET
MF104ZZ
1
N001
KXF05XFAA00
BALL BEARING
M3X6-4.8 A2J (Trivalent)
8
N002
N510018158AA
FLUSH HEAD SCREW
MR104ZZ
2
N003
KXF05XUAA00
BALL BEARING
P914SB1
2
N004
N310P914SB1
SENSOR
CTAM1
4
N005
KXFP6F86A00
CLAMP
CY3B10-350-DCJ605CJ
1
N006
N510023175AA
CYLINDER
POC6-M5M
2
N007
N431P0C6M5M
FITTING
LLRB4-1.0
3
N008
N510023371AA
WASHER
BN 150 M5
1
N009
N510061918AA
NUT
M4X6-4.8 A2J (Trivalent)
4
N010
N510018279AA
TRUSS HEAD SCREW
M4X8-8.8 S0B
2
N011
N510067792AA
BOLT
P919T
1
N012
N310P919T
SWITCH
LLRB4-0.5
1
N013
N510019669AA
WASHER
M3X5-10.9 A2J (Trivalent)
2
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M3X12-10.9 A2J (Trivalent)
1
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT
M4X6-10.9 A2J (Trivalent)
4
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
4
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
5
X561
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
4
X562
N510018497AA
ROUND PLAIN WASHER
M3
2
X571
N510020098AA
WASHER
M4
8
X572
N510020099AA
WASHER
M5
4
X573
N510020100AA
WASHER
M3-6H-4T A2J (Trivalent)
2
X591
N510017849AA
HEXAGON NUT
M5-6H-4T A2J (Trivalent)
2
X593
N510017862AA
HEXAGON NUT
M3X6-10.9 A2J (Trivalent)
6
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT
M3X16-10.9 A2J (Trivalent)
3
X611
N510017313AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
4
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X12-10.9 A2J (Trivalent)
4
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M5X25-10.9 A2J (Trivalent)
1
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT
M324
FN610128927AA_10
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(連結部)
LOADER & UNLOADER SECT.(JOINT SECT.)
25
FN610138373AA_02
M325
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
25

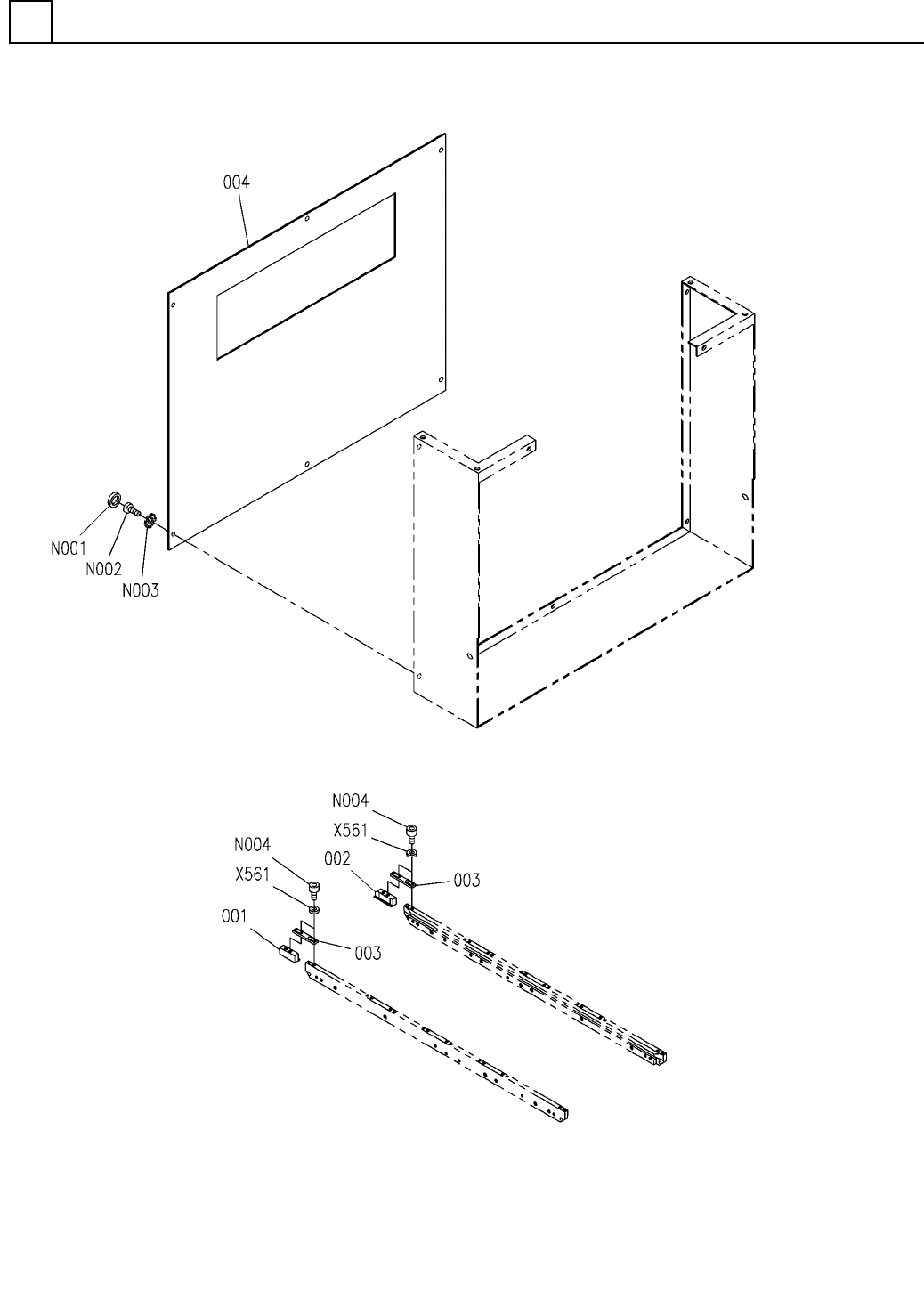

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(連結部)
LOADER & UNLOADER SECT.(JOINT SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610138373AA
JOINT UNIT
1001 N210162918AA
BLOCK
1002 N210162919AA
BLOCK
2
003 N210162920AA
PLATE
1004 N210184614AA
COVER
M5X12
6
N001
N986YYYY-814
CAP
JB-A M5X8 +
6
N002
N510038044AA
BOLT
5 External toothed Steel Unichrome white (Tri
6
N003
N510018765AA
TOOTHED LOCK WASHER
M3X6-10.9 A2J (Trivalent)
8
N004
N510017513AA
HEX. SOCKET BUTTON HEAD BOL
3 10H A2J (Trivalent)
8
X561
N510018494AA
ROUND PLAIN WASHER
M326
FN610138373AA_02
