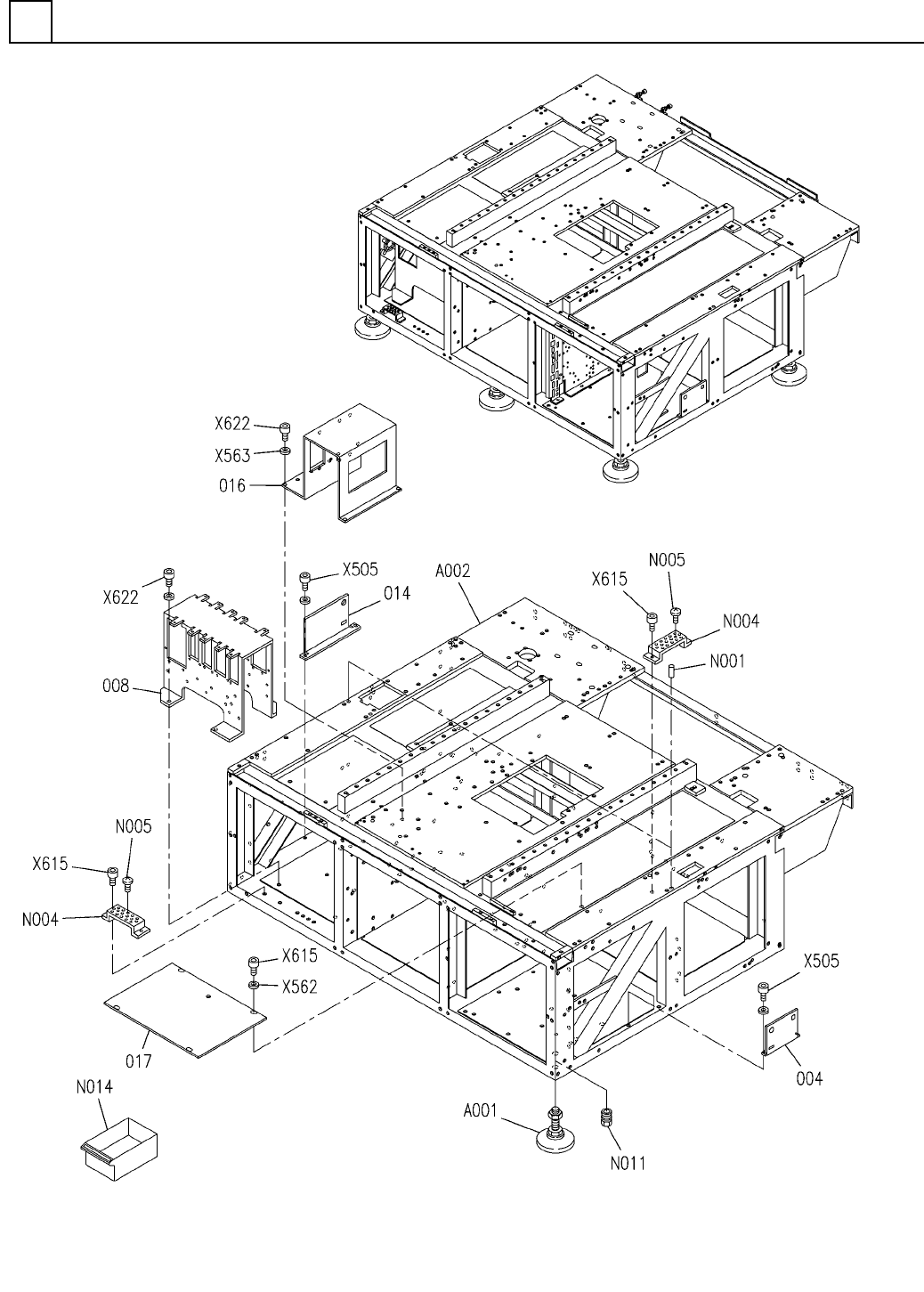

PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 本体部(1) MAIN B ODY SECT.(1) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610141428AA MAIN BODY UNIT 6 A001 1043889510AA ADJUSTING BOLT 1 A002 N610139819AK MAIN FRAME 1 004 N21015…
本体部(1)
MAIN BODY SECT.(1)
1
FN610141428AA_12-1
M5
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
1
本体部(1)
MAIN BODY SECT.(1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610141428AA
MAIN BODY UNIT
6
A001
1043889510AA
ADJUSTING BOLT
1
A002
N610139819AK
MAIN FRAME
1
004 N210156479AB
BRACKET
1008 N210154581AB
BRACKET
1014 N210156481AA
BRACKET
1
016 N210090375AB
BRACKET
1
017 N210074255AA
PLATE
10X30,m6A,STEEL
4
N001
XPK10A30FW
PARALLEL PIN
N510013515AA S
2
N004
N510013515AA
TERMINAL
M4X8, STEEL, P.C
16
N005
XYN4+J8FN
PAN HEAD M/C SCREW & W.
V-M32
1
N011
N348VM32
GROMMET
HB-1218
1
N014
N510028733AA
BOX
M4X10-10.9 A2J (Trivalent)
4
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
8
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M5X10-10.9 A2J (Trivalent)
8
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
4
X562
N510018497AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER
M6
