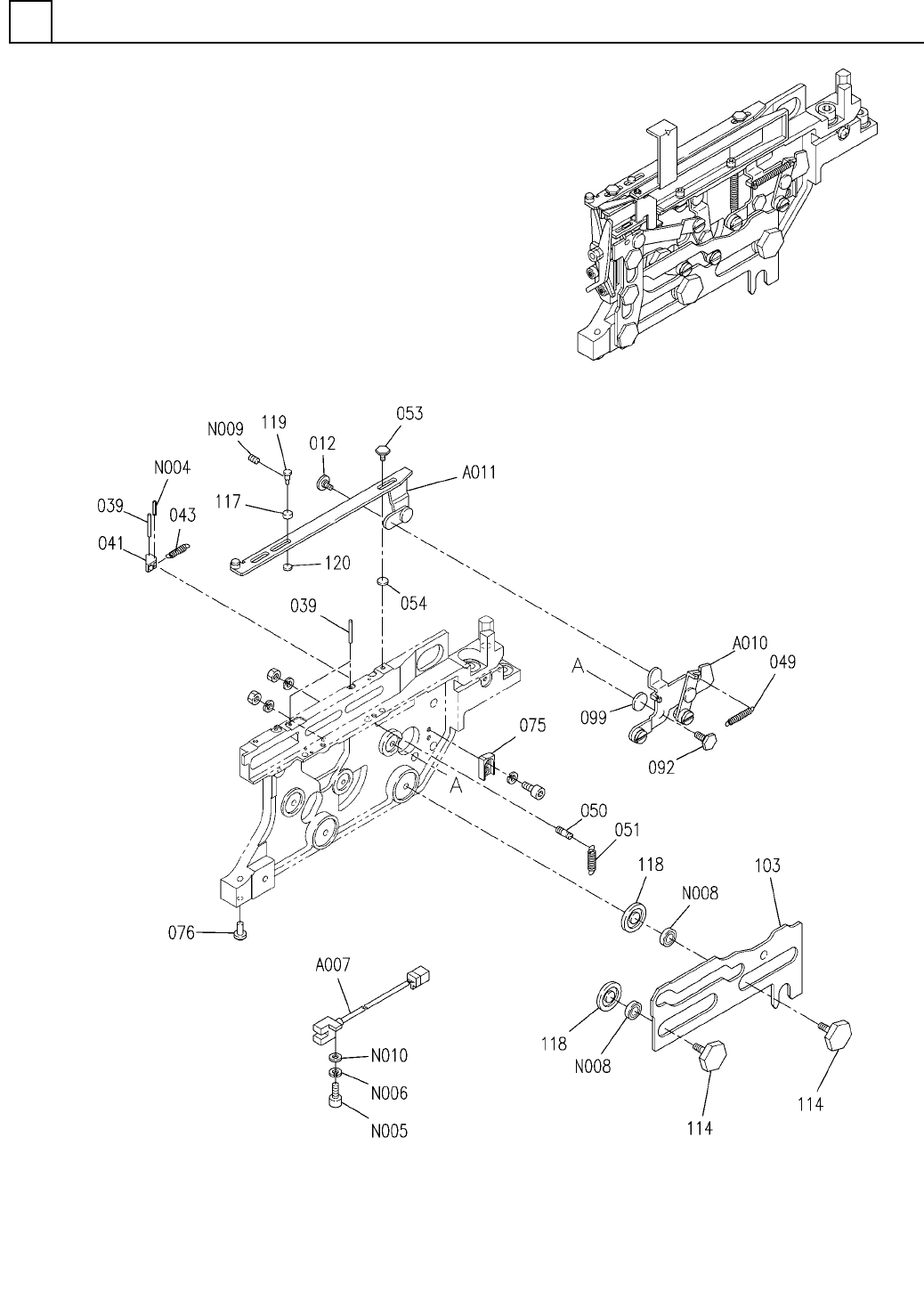

ﾃｰﾌﾟﾌｨｰﾀﾞ部(12.7X5.0(2))
TAPE FEEDER SECT.(12.7X5.0(2))
28
FN610071917AA_04-2
M415
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(12.7X5.0(2))
TAPE FEEDER SECT.(12.7X5.0(2))
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A007
N610071899AA
SENSOR UNIT
1
A010
N610026102AA
LEVER UNIT
1
A011
N610026103AA
SLIDER UNIT
1
012 X01A38012
PIN
3039 X01A38039
PIN
1041 X01A3804102
CLAW
1
043 X01A38043
SPRING
1
049 X01A38049
SPRING
1050 X01A38050
PIN
1051 MTPA011972AA
SPRING
2
053 X01A38053
PIN
2
054 X01A38054
SPACER
1075 X01A3807502
STOPPER
1076 X01A38076
PIN
1
092 X01A38092
PIN
1099 X01A38099
SPACER
1103 N210168707AA
CAM
2
114 X01A38114
PIN
1
117 X01A38117
ROLLER
2118 X01A38118
SPACER
1119 X01A3811901
PIN
1
120 X01A38120
SPACER
1.2X5
1
N004
XPL12A5WFW
SPRING PIN
M2X8-10.9 A2J (Trivalent)
1
N005
N510017261AA
HEX. SOCKET HEAD CAP BOLT
No.2 5 S A2J (Trivalent)
1
N006
N510018332AA
SPRING WASHER
L-1260ZZ
2
N008
KXF02F9AA00
BEARING
M2X2-45H A2J (Trivalent)
1
N009
N510018353AA
HEX. SOCKET SET SCREW
2 10H A2J (Trivalent)
1
N010
N510018477AA
ROUND PLAIN WASHER
M416
FN610071917AA_04-2

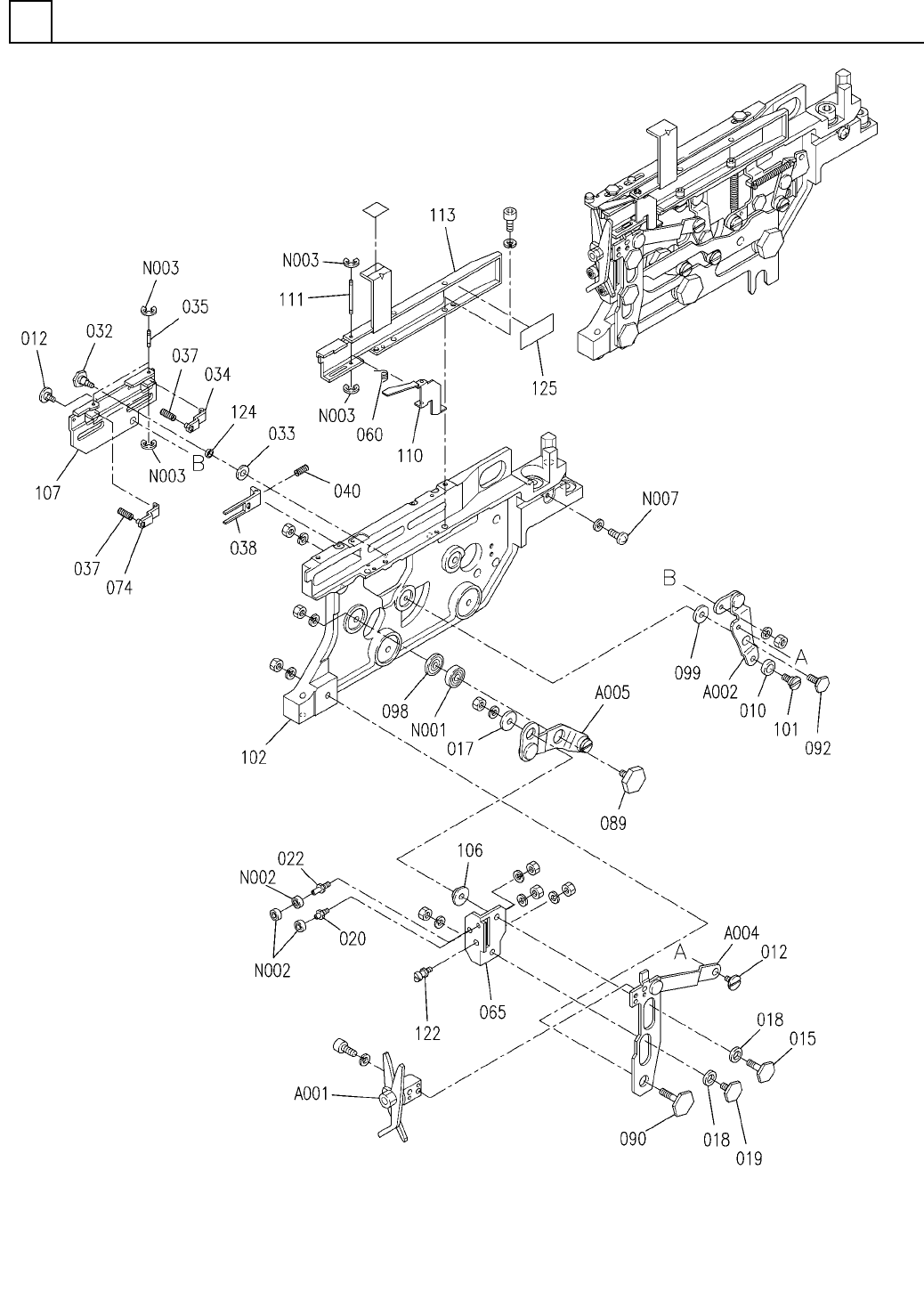

ﾃｰﾌﾟﾌｨｰﾀﾞ部(12.7X7.5(1))
TAPE FEEDER SECT.(12.7X7.5(1))
28
FN610071918AA_05-1
M417
