ﾃｰﾌﾟﾌｨｰ ﾀﾞ部(25.4 X10.0(1 )) TAPE FEEDE R SECT.(25.4X1 0.0(1)) 28 FN610111719AA_04-1 M433
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(15.0X10.0(2))
TAPE FEEDER SECT.(15.0X10.0(2))
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A007
N610071899AA
SENSOR UNIT
1
A010
N610026102AA
LEVER UNIT
1
A011
N610026103AA
SLIDER UNIT
1
003 X01A38507
CAM
1005 X01A38012
PIN
3018 X01A38039
PIN
1
020 X01A3804102
CLAW
1
021 X01A38043
SPRING
1022 X01A38049
SPRING
1023 X01A38050
PIN
1
024 MTPA011972AA
SPRING
2
025 X01A38053
PIN
2026 X01A38054
SPACER
1031 X01A3807502
STOPPER
1
032 X01A38076
PIN
1035 X01A38092
PIN
1037 X01A38099
SPACER
2
042 X01A38114
PIN
1
043 X01A38117
ROLLER
2044 X01A38118
SPACER
1045 X01A3811901
PIN
1
046 X01A38120
SPACER
1.2X5
1
N004
XPL12A5WFW
SPRING PIN
2 10H A2J (Trivalent)
1
N005
N510018477AA
ROUND PLAIN WASHER
M2X8-10.9 A2J (Trivalent)
1
N006
N510017261AA
HEX. SOCKET HEAD CAP BOLT
No.2 2 S A2J (Trivalent)
1
N007
N510018324AA
SPRING WASHER
L-1260ZZ
2
N009
KXF02F9AA00
BEARING
M2X2-45H A2J (Trivalent)
1
N010
N510018353AA
HEX. SOCKET SET SCREW
M3X8-10.9 A2J (Trivalent)
2
X503
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M6X20-10.9 A2J (Trivalent)
1
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
3
X552
N510018479AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
2
X554
N510018481AA
ROUND PLAIN WASHER
No.2 3 S A2J (Trivalent)
4
X581
N510018327AA
SPRING WASHER
No.2 4 S A2J (Trivalent)
3
X582
N510018330AA
SPRING WASHER
No.2 6 S A2J (Trivalent)
2
X584
N510018334AA
SPRING WASHER
M3-6H-4T A2J (Trivalent)
2
X591
N510017849AA
HEXAGON NUT
M4-6H-4T A2J (Trivalent)
3
X592
N510017855AA
HEXAGON NUT
M6X40-10.9 A2J (Trivalent)
1
X632
N510017442AA
HEX. SOCKET HEAD CAP BOLT
M432
FN610101850AA_06-2

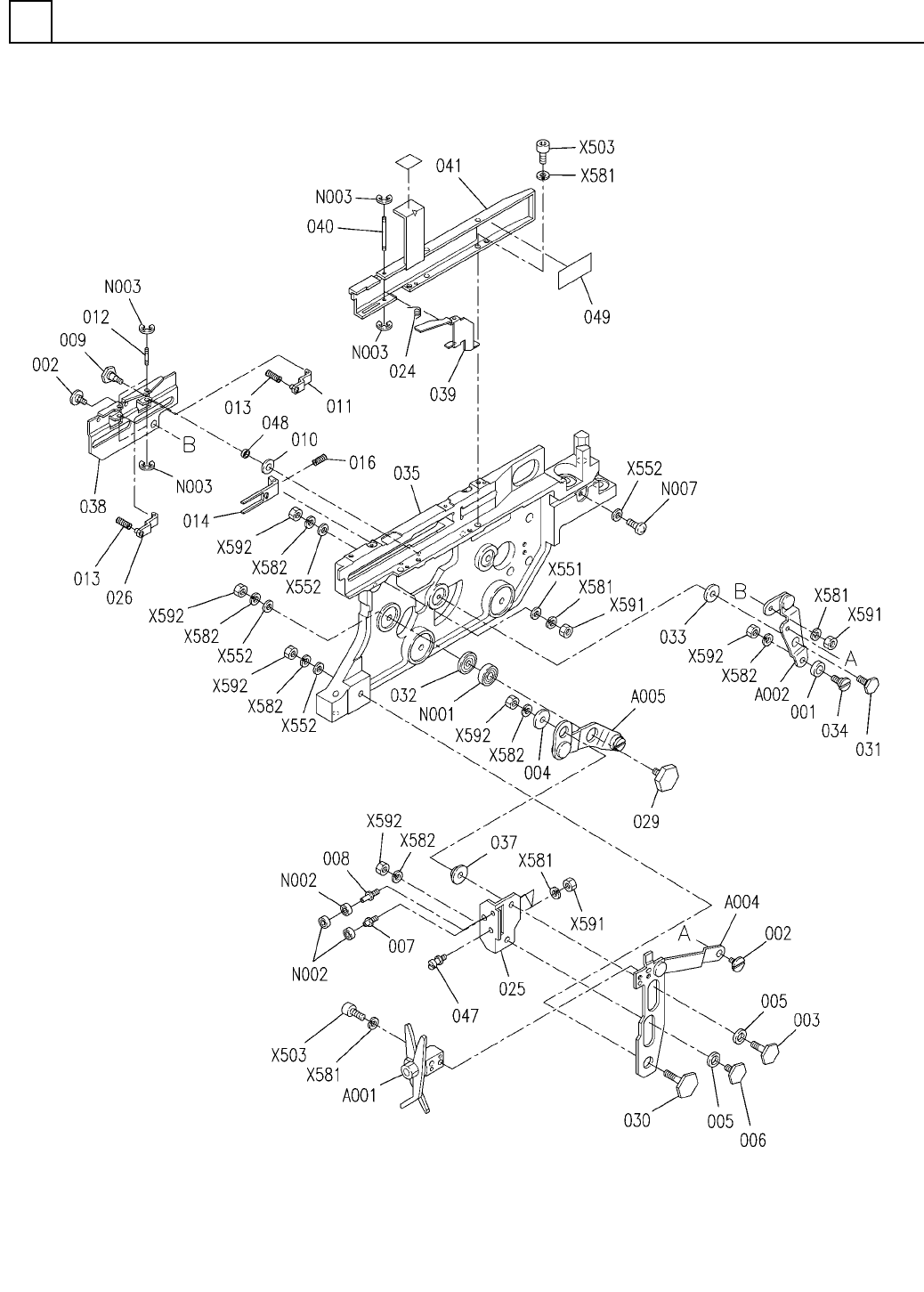

ﾃｰﾌﾟﾌｨｰﾀﾞ部(25.4X10.0(1))
TAPE FEEDER SECT.(25.4X10.0(1))
28
FN610111719AA_04-1
M433
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(25.4X10.0(1))
TAPE FEEDER SECT.(25.4X10.0(1))
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610111719AA
TAPE FEEDER UNIT
1
A001
X01A38126
SCISSORS UNIT
1
A002
N610111720AA
LEVER UNIT
1
A004
N610111721AA
LEVER UNIT
1
A005
N610026101AA
LEVER UNIT
1001 X01A38010
ROLLER
2
002 X01A38012
PIN
1
003 X01A3801501
PIN
1004 X01A38017
COLLAR
2005 X01A38018
ROLLER
1
006 X01A3801901
PIN
1
007 X01A3802002
PIN
1008 X01A3802202
PIN
2009 X01A3803201
PIN
2
010 X01A3803301
SPACER
1011 X01A3803402
CLAW
2012 X01A38035
PIN
2
013 X01A38037
SPRING
1
014 X01A3803803
CLAW
1016 X01A38040
SPRING
1024 X01A38060
SPRING
1
025 X01A38065
SLIDER
1
026 N210087041AA
CLAW
1029 X01A38089
PIN
1030 X01A38090
PIN
1
031 X01A38092
PIN
1032 X01A38098
SPACER
1033 X01A38099
SPACER
1
034 X01A38101
PIN
1
035 N210133299AB
FRAME
1037 X01A38106
COLLAR
1038 N210133301AB
SLIDER
1
039 N210133300AA
LEVER
1
040 X01A38111
PIN
1041 N210133307AA
TAPE GUIDE
1047 X01A38122
PIN
2
048 X01A38124
ROLLER
1049 N210194037AA
SEAL
MR106ZZS
1
N001
KXF05XWAA00
BEARING
683ZZ
3
N002
KXF0C8ZAA00
BEARING
ETW-1.5
6
N003
KXF01X6AA00
RETAINING RING E-TYPE
M3X5-4.8 A2J (Trivalent)
1
N007
N510017981AA
ROUND HEAD SCREW
M3X8-10.9 A2J (Trivalent)
4
X503
N510017341AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
4
X552
N510018479AA
ROUND PLAIN WASHER
No.2 3 S A2J (Trivalent)
9
X581
N510018327AA
SPRING WASHER
No.2 4 S A2J (Trivalent)
6
X582
N510018330AA
SPRING WASHER
M3-6H-4T A2J (Trivalent)
5
X591
N510017849AA
HEXAGON NUT
M4-6H-4T A2J (Trivalent)
6
X592
N510017855AA
HEXAGON NUT
3 10H A2J (Trivalent)
1
X551
N510018478AA
ROUND PLAIN WASHER
