RL132四跨具部品书N7203A389B44 - 第467页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 28 ﾃｰﾌﾟﾌｨ ｰﾀﾞ部(25 .4X10.0(1 )) TAPE F EEDER SECT.(25 .4X10.0(1)) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610111719AA TAPE FEEDE R UNIT 1 A001 X01A38126 SCISSORS U NIT 1 A002 …
ﾃｰﾌﾟﾌｨｰﾀﾞ部(25.4X10.0(1))
TAPE FEEDER SECT.(25.4X10.0(1))
28
FN610111719AA_04-1
M433
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
28
ﾃｰﾌﾟﾌｨｰﾀﾞ部(25.4X10.0(1))
TAPE FEEDER SECT.(25.4X10.0(1))
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610111719AA
TAPE FEEDER UNIT
1
A001
X01A38126
SCISSORS UNIT
1
A002
N610111720AA
LEVER UNIT
1
A004
N610111721AA
LEVER UNIT
1
A005
N610026101AA
LEVER UNIT
1001 X01A38010
ROLLER
2
002 X01A38012
PIN
1
003 X01A3801501
PIN
1004 X01A38017
COLLAR
2005 X01A38018
ROLLER
1
006 X01A3801901
PIN
1
007 X01A3802002
PIN
1008 X01A3802202
PIN
2009 X01A3803201
PIN
2
010 X01A3803301
SPACER
1011 X01A3803402
CLAW
2012 X01A38035
PIN
2
013 X01A38037
SPRING
1
014 X01A3803803
CLAW
1016 X01A38040
SPRING
1024 X01A38060
SPRING
1
025 X01A38065
SLIDER
1
026 N210087041AA
CLAW
1029 X01A38089
PIN
1030 X01A38090
PIN
1
031 X01A38092
PIN
1032 X01A38098
SPACER
1033 X01A38099
SPACER
1
034 X01A38101
PIN
1
035 N210133299AB
FRAME
1037 X01A38106
COLLAR
1038 N210133301AB
SLIDER
1
039 N210133300AA
LEVER
1
040 X01A38111
PIN
1041 N210133307AA
TAPE GUIDE
1047 X01A38122
PIN
2
048 X01A38124
ROLLER
1049 N210194037AA
SEAL
MR106ZZS
1
N001
KXF05XWAA00
BEARING
683ZZ
3
N002
KXF0C8ZAA00
BEARING
ETW-1.5
6
N003
KXF01X6AA00
RETAINING RING E-TYPE
M3X5-4.8 A2J (Trivalent)
1
N007
N510017981AA
ROUND HEAD SCREW
M3X8-10.9 A2J (Trivalent)
4
X503
N510017341AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
4
X552
N510018479AA
ROUND PLAIN WASHER
No.2 3 S A2J (Trivalent)
9
X581
N510018327AA
SPRING WASHER
No.2 4 S A2J (Trivalent)
6
X582
N510018330AA
SPRING WASHER
M3-6H-4T A2J (Trivalent)
5
X591
N510017849AA
HEXAGON NUT
M4-6H-4T A2J (Trivalent)
6
X592
N510017855AA
HEXAGON NUT
3 10H A2J (Trivalent)
1
X551
N510018478AA
ROUND PLAIN WASHER
M434
FN610111719AA_04-1

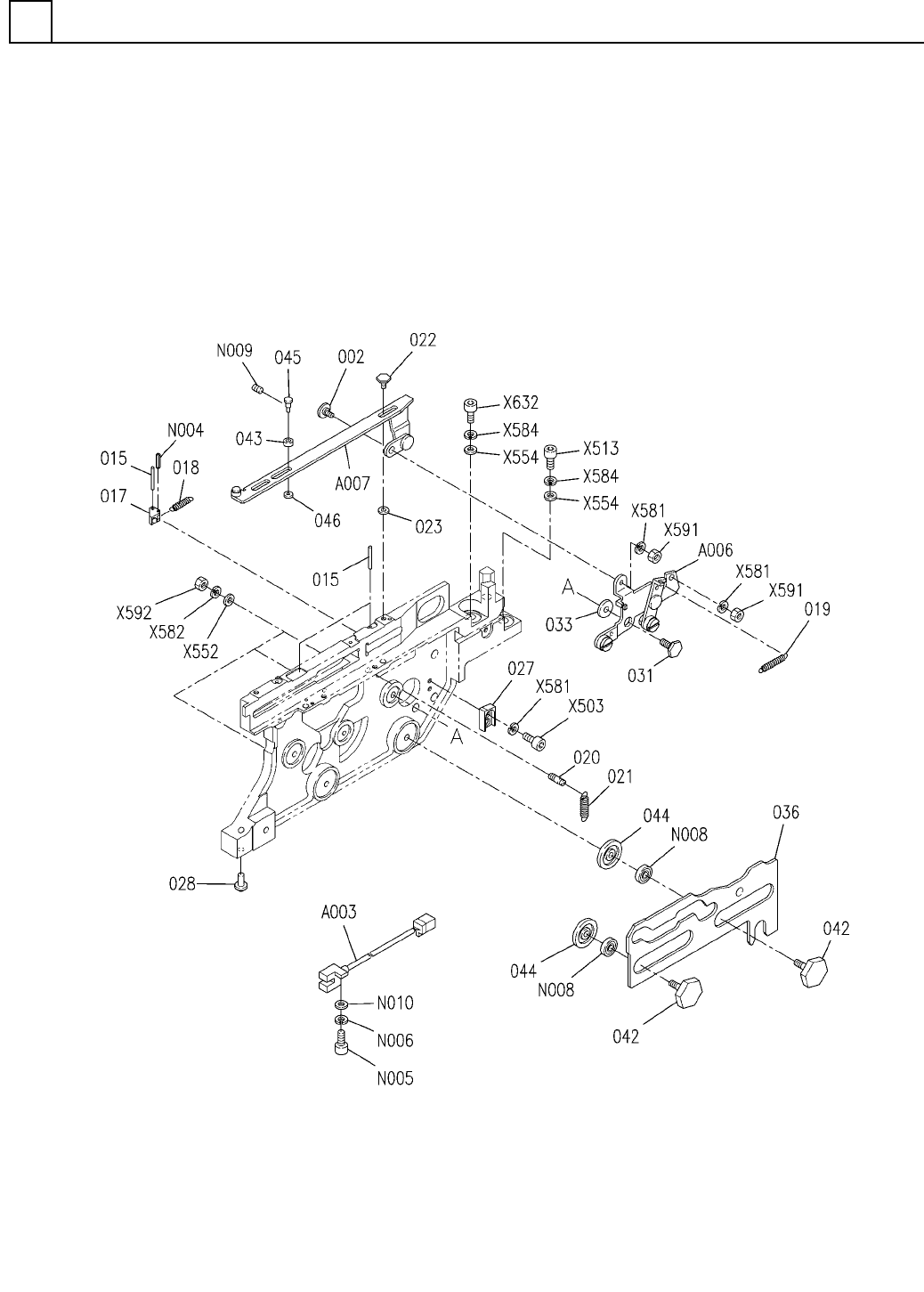

ﾃｰﾌﾟﾌｨｰﾀﾞ部(25.4X10.0(2))
TAPE FEEDER SECT.(25.4X10.0(2))
28
FN610111719AA_04-2
M435
