suneast E-FLOW Z SERIES 2024.06.17
Conveying s ystem: Direct buffering structur e.Special stainless steel chain con veying aluminum alloy r ail unique design, dur able; T ransportation system: adopt segmental floating structur e, effectivel y prevent guide r…
Conveying system: Direct buffering structure.Special stainless steel chain conveying aluminum alloy rail unique design, durable;
Transportation system: adopt segmental floating structure, effectively prevent guide rail deformation;
Preheating system: Adopts drawer type module with energy-saving design, infrared, hot air convection for any combination, PID temperature
control mode, so that the temperature control accuracy reaches to be ±2℃, preheating area and soldering area temperature drop value ≤5℃;
Adopt precision control valve for digital regulation, convenient management. Nozzle movement is controlled by stepping motor.
Flux automatic pressure supply, which makes the spray flow quickly reach saturation, top exhausting and filtration system;
The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles
Air cooling system: cooling rate 4-6 ℃ /s (adjustable)
PC+PLC control system. Windows10 operation system with Chinese/English operation interface. Processing profile and data auto saving function.
Alarm for detecting the flux and solder level
09 10
250
150
253
喷雾外置无铅
波峰焊接机
（全面升级）

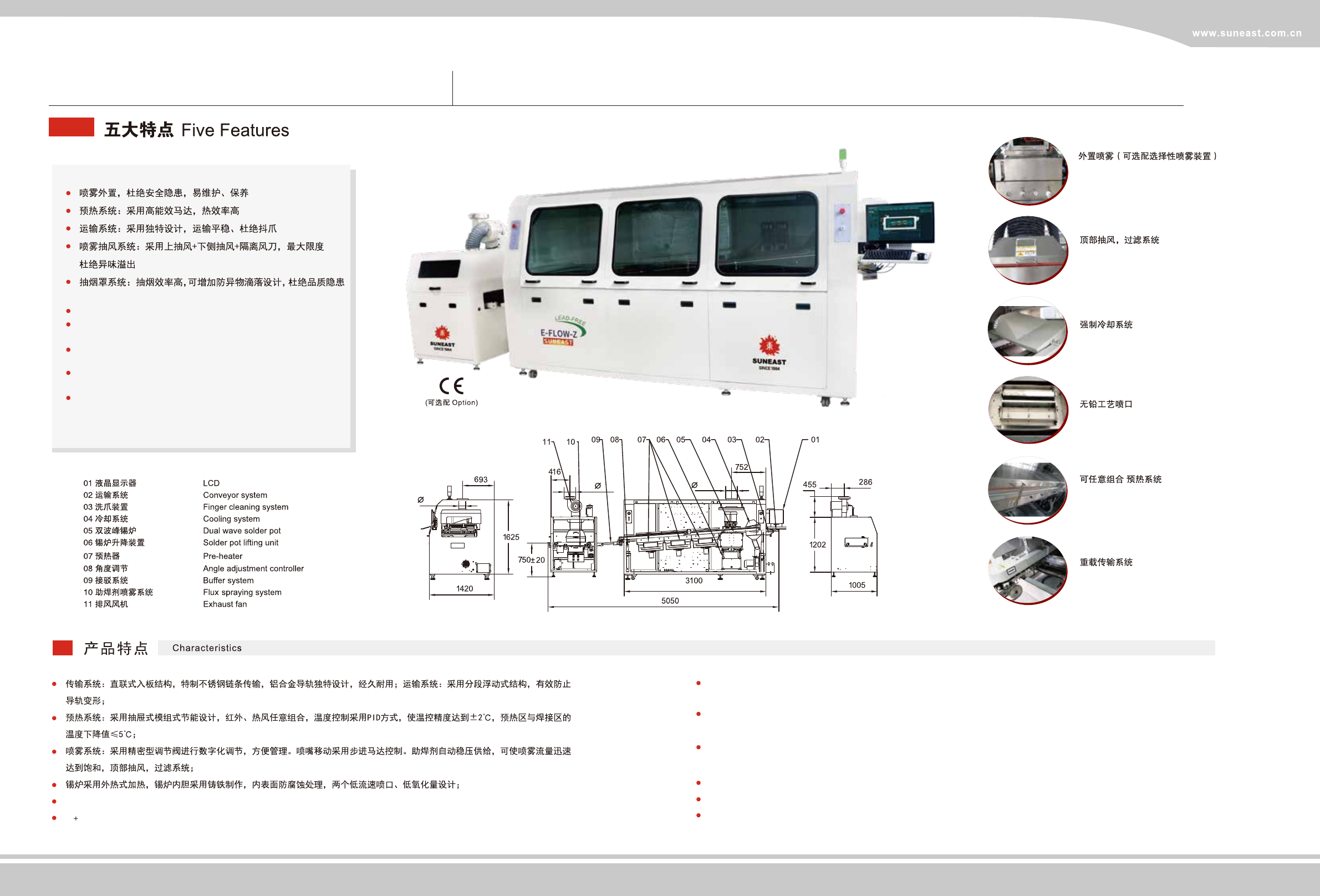

External spray lead-free wave soldering machine
(Fully upgrade)
External spraying unit: eliminate safety risks, easy maintenance.
Preheating system: adopts high energy efficiency motor with high
thermal efficiency.
Conveying system: adopts special design for smooth conveying and
prevent finger shaking.
Exhausting system of spraying: adopts upper and lower exhausting
and air knife for separating, to eliminate odor overflow.
Exhausting hood system: with high exhausting efficiency, anti
foreign matter dripping design can be added , to eliminate quality
trouble.
External spraying unit（option：
selective spraying system）
Top exhausting and
filtering System
Forced cooling system
Lead-free processing nozzle
Flexible combination of
preheating system
Heavy-duty conveying system
PC+PLC控制系统，Windows 10 操作系统，中/英文操作界面，工艺曲线/数据自动存储功能，助焊剂液面过低过高报警；锡液面过低报警。
强制式冷却系统，保证冷却速度在4~6°C/秒（可调）；
E-FLOW-Z 系列
