F2FeederPartsList - 第128页
3-9
I･pulse F2 Series
F2-84 (A type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A40-020
T.G. PLATE ASSY 1 AS -A08-8119-E
1 LG4-M1A41-020
TAPE GUIDE PLATE 1 FTA-A08-8119-E
2
LG4-M1A42-010
SHUTTER PLATE 1 FTA-A08-8120-D
3 LG4-M1A45-010
SHUTTER GUIDE PIN 2 FTA-A08-8121-B
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-020
SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6 LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000
T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
3-8
3-9
I･pulse F2 Series
F2-84 (A type)
P 5

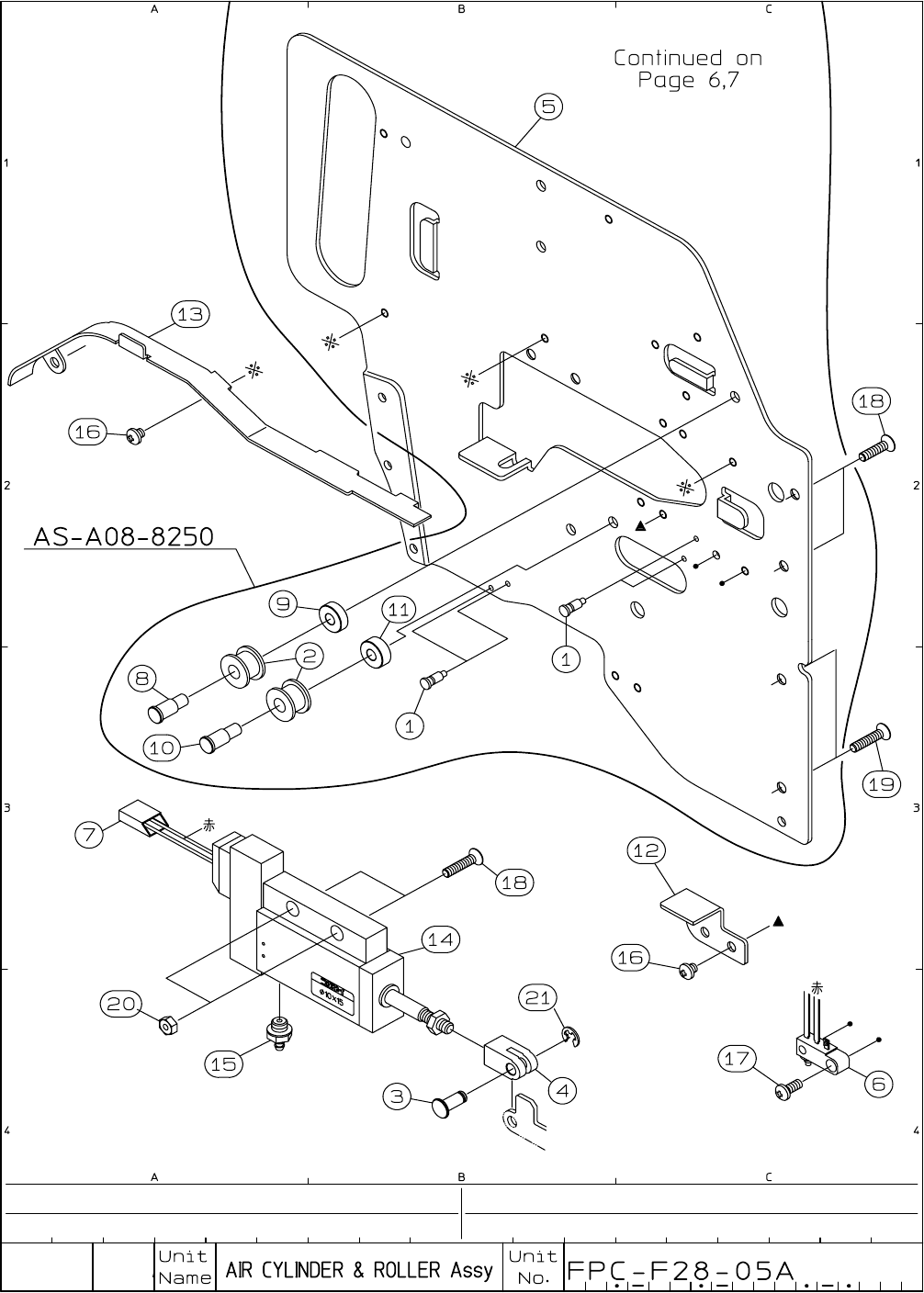

No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-100
BACK PLATE ASSY
1
AS -A08-8250
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 KW1-M116U-000
ROLLER
2 CTF-M08- 342
3 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
4 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
5 LG4-M1A61-100
BACK PLATE
1 FTA-A08-8250
6 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
7 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
8 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
9 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
10 LG4-M1A6B-000
ROLLER AXIS U
1 FTA-A08-8174
11 LG4-M1A6D-000
LEAF U
1 FTA-A08-8174-1
12 LG4-M1A6U-100
MIDDE GUIDE PLATE U
1 FTA-A08-8275
13 LG4-M1A6N-100
MIDDLE GUIDE PLATE C
1 FTA-A08-8276
LG4-M1AB1-000
VAL PACK CYLINDER
1 BDA10×15-327W
LG4-M1AB1-001
VAL PACK CYLINDER
1 BDA10×15-350W
15 LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
16 K87-M111N-000
SCREW,PAN HEAD+
5 3MC-3-P
17 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
18 K87-M11B4-100
SCREW,FLAT HEAD+
2 3MK-12-P
19 LG4-M1ADD-000
SCREW,FLAT HEAD
4 3MK-14-P
20 K87-M21BN-000
SCREW,NUT
2 3MH-P
21 K87-M11D7-000
CIRCLIP E
1 E.32
22
23
24
25
26
27
28
29
30
31
32
14
3-10
