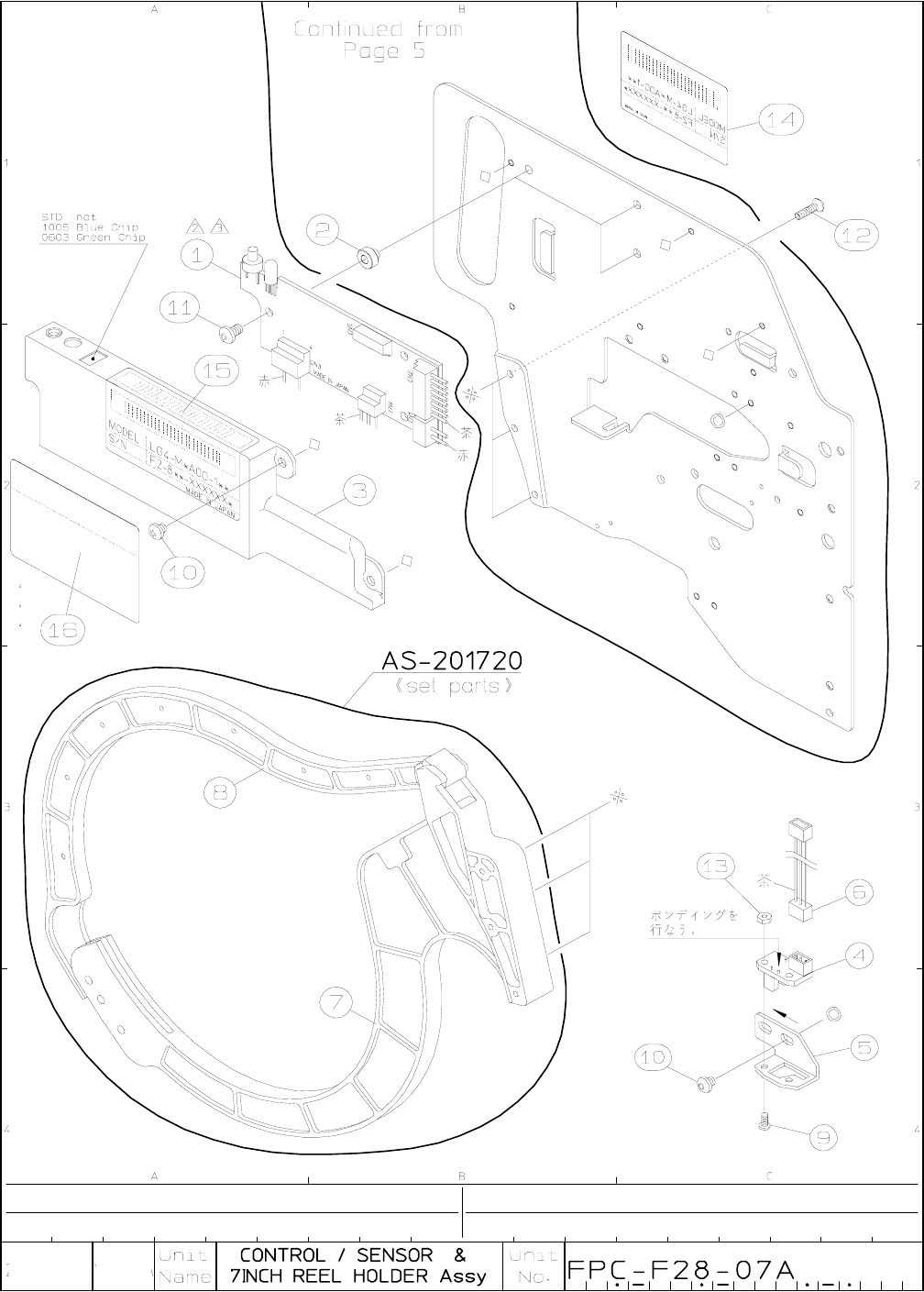

I･pulse F2 Series F2-84 (B type) P 7 No. Code No. Parts Name Q'ty Parts No. LG4-M1A90-000 REEL HOLDER ASSY 1 AS -201720 1 LG4-M1AH1-00 4 BOARD ITF (REV.A) 1 2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A08-8152-B 3 LG…

100%1 / 933
3B-13
I･pulse　 F2　Series
F2-84 (B type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AH1-004 BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR 3
FTA-A08-8152-B
3
LG4-M1A6S-100
CONTROL BOARD COVER
1
FTA-A08-8253
4 LG4-M1AH2-002
BOARD ITF-A (REV.A) 1
5 LG4-M1A6T-101 SENSOR GUIDE PLATE 1 FTA-A08-8267-B
6
LG4-M1AA6-100
SENSOR HARNESS ASSY 1 FTA-A08-8151-9
7 LG4-M1A91-000
REEL HOLDER
1
201720
8 LG4-M1A92-000
CLAMP ARM
1
201721
9 LG4-M1ADG-100
SCREW,PAN HEAD + 2 P2MC-4-P
10 K87-M111N-000 SCREW,PAN HEAD + 5
3MC-3-P
11 K87-M111W-000 SCREW,PAN HEAD ＋ 3
3MC-5-P
12 LG4-M1ADF-000
SCREW,BAIND HEAD +
3
3M-10-P-P-Bi
13
LG4-M1AD4-100 SCREW NUT
2 2MH-P
14 LG4-M1AC1-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS
15 LG4-M1AC3-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS1
LG4-M1ACX-100
FTA-A08-8253-BLPS
*1 LG4-M1ACX-110
FTA-A08-8253-PS-B
LG4-M1ACX-111 PROTECTION SEAL 1
FTA-A08-8253-PS-C
17
18
19
20
21
22
23
24
25
26
27
28
29
30
*1
F2-84-10787B～
16
