F2FeederPartsList - 第206页
4-7
I･pulse F2 Series
F2-12 (A type)
P 3
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M4A30-002 HOLD LEVER ASSY 1 AS5-A12-8190
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
3 LG4-M1A1A-001 COVER PLATE 1 FTA-A08-8149-C
4 LG4-M1AA2-100 SP. CONNECTOR ASSY 1 FTA-A08-8151-12
5 LG4-M4A31-000 HOLD LEVER M 1 FTA-A12-8190
6 LG4-M1A32-000 HOLD LEVER S 1 FTA-A08-8190-1B
7 LG4-M4A34-001 CLAMP LEVER 1 FTA-A12-8191-B
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-000 HINGE PIN 1 1 FTA-A08-8191-1
※1 10 LG4-M1A35-001 CLANK ARM 1 FTA-A08-8192-B
11 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
12 LG4-M1A36-000 ARM 1 FTA-A08-8193
13 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
14 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
15 LG4-M1A37-000 ADJUST CLAMP PIN 1 FTA-A08-8196
16 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
17 LG4-M1A38-000 LINK PIN T 1 FTA-A08-8198
18 LG4-M1A39-000 LINK PIN U 1 FTA-A08-8199
19 LG4-M1ADC-000 SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2 3MY-5-F
23 K87-M111U-000 SCREW FLANGE NUT 2 3MH-FS
24 K87-M21BN-000 SCREW NUT 2 3MH-P
25 K87-M21BM-000 SPRING LOCK WASHER 1 3MU-P
26 K87-M1115-000 CIRCULAR RIVET 1 2-10
27
28
29
30
31
32
33
※1 F2-12-000328A∼
4-6
4-7
I･pulse F2 Series
F2-12(A type)
P 4
No. Code No. Parts Name Q'ty Parts No.

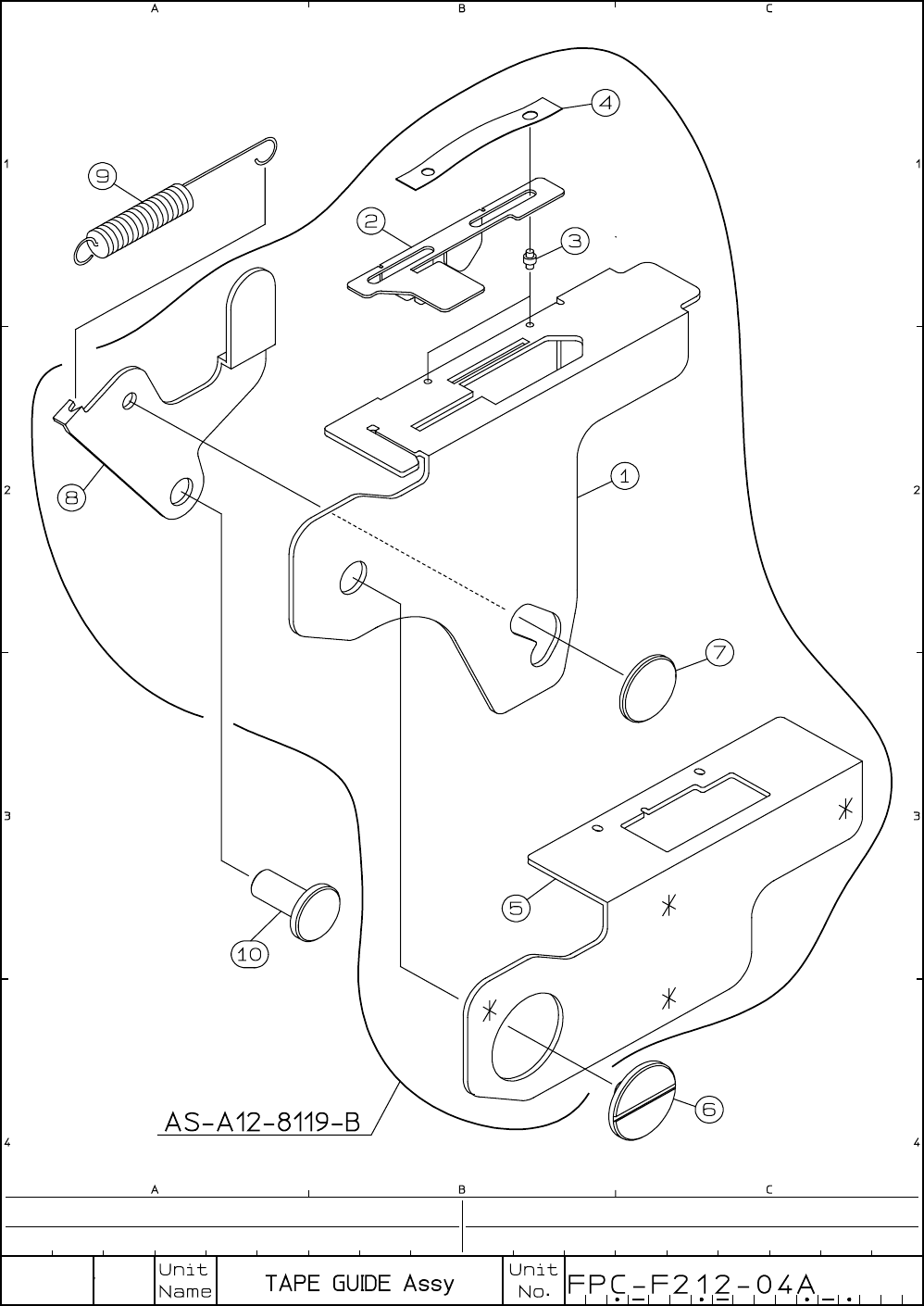

LG4-M4A40 -000
T.G. PLATE ASSY 1 AS-A12-8119-B
1
LG4-M4A41-000
TAPE GUIDE PLATE 1
FTA-A12-8119-B
2
LG4-M4A42-000
SHUTTER PLATE 1
FTA-A12-8120-C
3
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
4
LG4-M1A44-000 SHUTTER PUSH SPRING
1
FTA-A08-8122-B
5
LG4-M4A43-000 SHUTTER GUARD PLATE
1
FTA-A12-8123-B
6
LG4-M1A4L-000 T.G. GUIDE SCREW
1
FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
9
LG4-M1A48-001 T.G. PUSH SPRING
1
FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
4-8
